Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-FL-LC-SC/APC-SM-01 |
| Brand | UltraLAN |
| Type | Fiber Flylead |
| Connector Type | LC to SC |
| Polish Type | APC to APC |
| Fiber Mode | OS2 9/125μm |
| Fiber Count | Duplex |
| Fiber Grade | G.657.A1 (compatible with G.652.D) |
| Wavelengths | 1310nm / 1550nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Length | 1m |
| Net Weight | 0.02kg |
| Dimensions | 18 × 18 × 0.5 cm |
Price Disclaimer: Prices are subject to change at any time without prior notice.

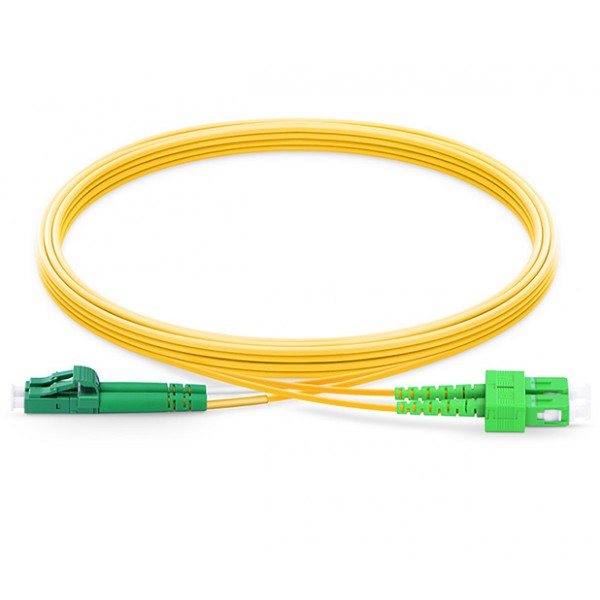

UltraLAN Fiber Flylead LC‑SC APC SM Duplex 1m
Brand: UltraLAN
Product Code / SKU: FIB-FL-LC-SC/APC-SM-01
Model: Fiber Flylead – LC‑SC APC SM Duplex (1m)
Description
The UltraLAN Fiber Flylead LC‑SC APC SM Duplex (1m) is a high‑quality OS2 9/125μm single‑mode fiber optic cable designed for 1G/10G/40G/100G Ethernet connections. Cost‑effective yet high‑performance, it is ideally suited for short‑distance equipment interconnects, such as linking data switches in a rack or connecting to a fiber ONT.
This flylead features LC and SC connectors (APC polish) on opposite ends, making it practical for PON ONU equipment connections to fiber termination boxes with LC ports. The Low Smoke Zero Halogen (LSZH) jacket ensures safe use in enclosed environments.
Features
Connector Type: LC to SC (APC polish)
Fiber Mode: OS2 9/125μm single‑mode
Fiber Count: Duplex
Fiber Grade: G.657.A1 (compatible with G.652.D)
Wavelengths: 1310nm / 1550nm
Insertion Loss: ≤0.3 dB
Return Loss: ≥60 dB
LSZH jacket for safety and durability
Designed for 1G/10G/40G/100G Ethernet connections
Ideal for rack interconnects and ONU links
What’s Included
1 × UltraLAN Fiber Flylead LC‑SC APC SM Duplex (1m)
