Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-FL-LC-LC/UPC-SM-03 |
| Brand | UltraLAN |
| Type | Fiber Flylead |
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm |
| Fiber Count | Duplex |
| Fiber Grade | G.657.A1 (compatible with G.652.D) |
| Wavelengths | 1310nm / 1550nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Length | 3m |
| Net Weight | 0.03kg |
| Dimensions | 18 × 18 × 0.5 cm |
Price Disclaimer: Prices are subject to change at any time without prior notice.

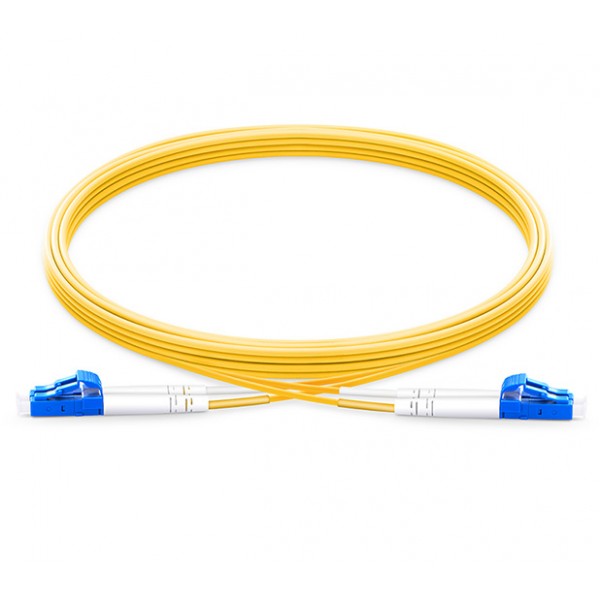

UltraLAN Fiber Flylead LC‑LC UPC SM Duplex 3m
Brand: UltraLAN
Product Code / SKU: FIB-FL-LC-LC/UPC-SM-03
Model: Fiber Flylead – LC‑LC UPC SM Duplex (3m)
Description
The UltraLAN Fiber Flylead LC‑LC UPC SM Duplex (3m) is a high‑quality OS2 9/125μm single‑mode fiber optic cable designed for Fast Ethernet, Fiber Channel, and Gigabit Ethernet applications.
Featuring UPC polished LC connectors and a Low Smoke Zero Halogen (LSZH) jacket, it meets EIA/TIA 604‑2 standards for high‑speed cabling networks. This duplex cable provides exceptional transmission performance, is RoHS compliant, and is ideal for enterprise networks, telecom rooms, and data centers.
Features
Connector Type: LC to LC (UPC polish)
Fiber Mode: OS2 9/125μm single‑mode
Fiber Count: Duplex
Fiber Grade: G.657.A1 (compatible with G.652.D)
Wavelengths: 1310nm / 1550nm
Insertion Loss: ≤0.3 dB
Return Loss: ≥50 dB
LSZH jacket for safety and durability
Meets EIA/TIA 604‑2 standards
RoHS compliant
What’s Included
1 × UltraLAN Fiber Flylead LC‑LC UPC SM Duplex (3m)
