Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-FL-LC-LC/UPC-SM-05S |
| Brand | UltraLAN |
| Type | Fiber Flylead |
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm |
| Fiber Count | Simplex |
| Fiber Grade | G.657.A1 (compatible with G.652.D) |
| Wavelengths | 1310nm / 1550nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Length | 5m |
| Net Weight | 0.02kg |
| Dimensions | 18 × 18 × 0.5 cm |
Price Disclaimer: Prices are subject to change at any time without prior notice.

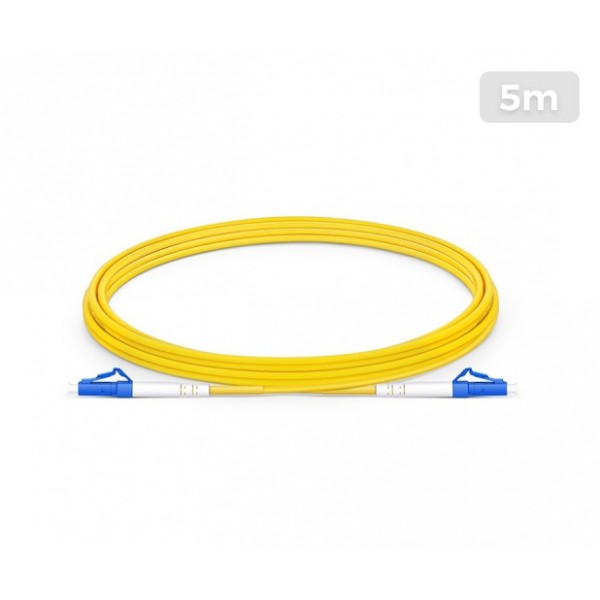

UltraLAN Fiber Flylead LC‑LC UPC SM 5m
Brand: UltraLAN
Product Code / SKU: FIB-FL-LC-LC/UPC-SM-05S
Model: Fiber Flylead – LC‑LC UPC SM Simplex (5m)
Description
The UltraLAN Fiber Flylead LC‑LC UPC SM Simplex (5m) is a high‑quality OS2 9/125μm single‑mode fiber optic cable designed for Fast Ethernet, Fiber Channel, and Gigabit Ethernet applications.
Built with LSZH (Low Smoke Zero Halogen) jacket and UPC polished LC connectors, it meets EIA/TIA 604‑2 standards for high‑speed cabling networks. This cable provides exceptional transmission performance, is RoHS compliant, and is ideal for enterprise networks, telecom rooms, and data centers.
Features
Connector Type: LC to LC (UPC polish)
Fiber Mode: OS2 9/125μm single‑mode
Fiber Count: Simplex
Fiber Grade: G.657.A1 (compatible with G.652.D)
Wavelengths: 1310nm / 1550nm
Insertion Loss: ≤0.3 dB
Return Loss: ≥50 dB
LSZH jacket for safety and durability
Meets EIA/TIA 604‑2 standards
RoHS compliant
What’s Included
1 × UltraLAN Fiber Flylead LC‑LC UPC SM Simplex (5m)
