Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-FL-LC-LC/UPC-SM-01S |
| Brand | UltraLAN |
| Type | Fiber Flylead |
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm |
| Fiber Count | Simplex |
| Fiber Grade | G.657.A1 (compatible with G.652.D) |
| Wavelengths | 1310nm / 1550nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Length | 1m |
| Net Weight | 0.02kg |
| Dimensions | 18 × 18 × 0.5 cm |
Price Disclaimer: Prices are subject to change at any time without prior notice.

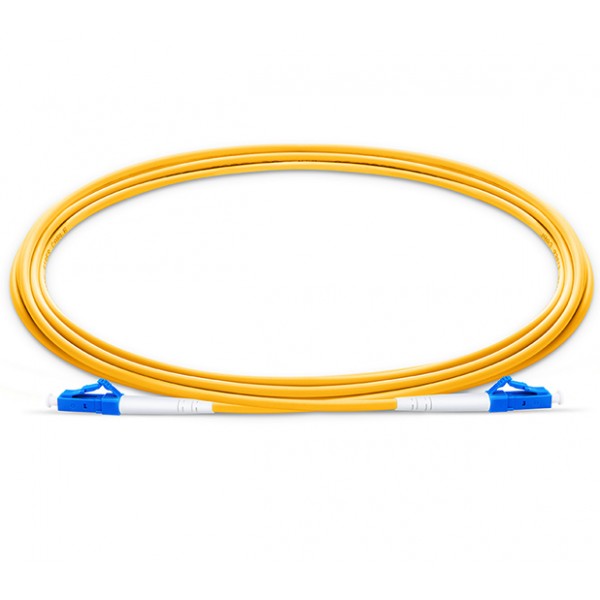

UltraLAN Fiber Flylead LC‑LC UPC SM 1m
Brand: UltraLAN
Product Code / SKU: FIB-FL-LC-LC/UPC-SM-01S
Model: Fiber Flylead – LC‑LC UPC SM Simplex (1m)
Description
The UltraLAN Fiber Flylead LC‑LC UPC SM Simplex (1m) is a high‑quality OS2 9/125μm single‑mode fiber optic cable designed for Fast Ethernet, Fiber Channel, and Gigabit Ethernet applications.
Featuring UPC polished LC connectors and a Low Smoke Zero Halogen (LSZH) jacket, it meets EIA/TIA 604‑2 standards for high‑speed cabling networks. This cable provides exceptional transmission performance, is RoHS compliant, and is ideal for enterprise networks, telecom rooms, and data centers.
Features
Connector Type: LC to LC (UPC polish)
Fiber Mode: OS2 9/125μm single‑mode
Fiber Count: Simplex
Fiber Grade: G.657.A1 (compatible with G.652.D)
Wavelengths: 1310nm / 1550nm
Insertion Loss: ≤0.3 dB
Return Loss: ≥50 dB
LSZH jacket for safety and durability
Meets EIA/TIA 604‑2 standards
RoHS compliant
What’s Included
1 × UltraLAN Fiber Flylead LC‑LC UPC SM Simplex (1m)
