Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-FL-LC-LC/UPC-MM-01OM3 |
| Brand | UltraLAN |
| Type | Fiber Flylead |
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OM3 50/125μm |
| Fiber Count | Duplex |
| Wavelengths | 850nm / 1300nm |
| 10G Ethernet Distance | 300m at 850nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥30 dB |
| Length | 1m |
| Net Weight | 0.02kg |
| Dimensions | 18 × 18 × 0.5 cm |
Price Disclaimer: Prices are subject to change at any time without prior notice.

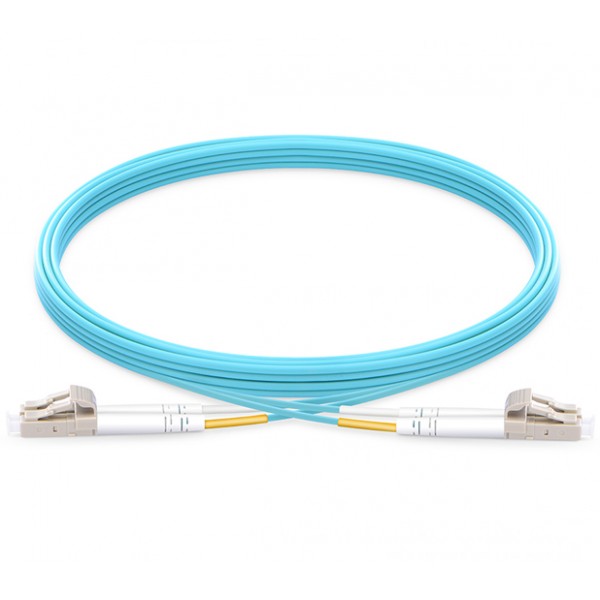

UltraLAN Fiber Flylead LC‑LC UPC OM3 Duplex 1m
Brand: UltraLAN
Product Code / SKU: FIB-FL-LC-LC/UPC-MM-01OM3
Model: Fiber Flylead – LC‑LC UPC OM3 Duplex (1m)
Description
The UltraLAN Fiber Flylead LC‑LC UPC OM3 Duplex (1m) is a high‑quality 50/125μm OM3 multimode fiber optic cable designed for 10G/40G/100G Ethernet connections.
Optimized for 10G Ethernet SR and LRM applications, this cable is widely used in data centers, enterprise networks, telecom rooms, server racks, and cloud storage environments where high bandwidth and reliability are essential.
Featuring UPC polished LC connectors and a Low Smoke Zero Halogen (LSZH) jacket, it ensures safety in enclosed environments. The cable is RoHS compliant and optically tested for insertion loss, guaranteeing excellent performance.
Features
Connector Type: LC to LC (UPC polish)
Fiber Mode: OM3 50/125μm multimode
Fiber Count: Duplex
Wavelengths: 850nm / 1300nm
10G Ethernet Distance: 300m at 850nm
Insertion Loss: ≤0.3 dB
Return Loss: ≥30 dB
LSZH jacket for safety and durability
RoHS compliant
Ideal for 10G/40G/100G Ethernet connections
What’s Included
1 × UltraLAN Fiber Flylead LC‑LC UPC OM3 Duplex (1m)
