Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-CBL-DC2C-RND-BCK |
| Brand | UltraLAN |
| Type | Fiber Drop Cable |
| Fiber Count | 2 Core |
| Fiber Mode | OS2 G.657A1 (compatible with G.652.D) |
| Jacket Material | UV‑resistant HDPE |
| Strength Member | Aramid yarn |
| Loose Tube | Gel‑filled |
| Diameter | 3.8 ± 0.2mm |
| Weight | 12kg/km |
| Supplied Length | 2000m drum |
| Attenuation | ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm |
| Mode Field Diameter | 9.2μm @1310nm, 10.4μm @1550nm |
| Tensile Strength | 150N (long‑term), 300N (short‑term) |
| Crush Resistance | 300N/10cm (long‑term), 650N/10cm (short‑term) |
| Bend Radius | 10D static / 20D dynamic |
| Operating Temperature | ‑40°C to +70°C |
Price Disclaimer: Prices are subject to change at any time without prior notice.

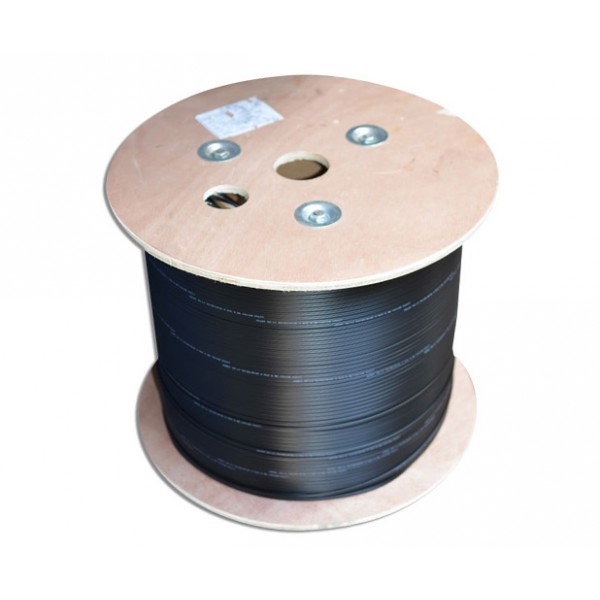

UltraLAN Fiber Drop Cable Round Gel 2 Core
Brand: UltraLAN
Product Code / SKU: FIB-CBL-DC2C-RND-BCK
Model: Fiber Drop Cable – Round Gel Filled, 2 Core
Description
The UltraLAN Fiber Drop Cable (Round – Gel Filled) – 2 Core is a single‑mode OS2 G.657A1 fiber cable designed for FTTX applications.
Featuring a UV‑resistant HDPE outer jacket and gel‑filled loose tube for moisture protection, this cable ensures durability and reliability in both indoor and outdoor installations. Supplied on a 2000m wooden drum, it is ideal for long‑distance drop connections in telecom and enterprise networks.
Key Features
Fiber Count: 2 core (G.657A1 single‑mode, compatible with G.652.D)
Jacket Material: UV‑resistant black HDPE
Strength Member: High‑tensile aramid yarn
Loose Tube: Gel‑filled for moisture protection
Cable Diameter: Approx. 3.8 ± 0.2mm
Supplied Length: 2000m wooden drum
Weight: 12kg/km
Optical Performance
Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm
Mode Field Diameter: 9.2μm @1310nm, 10.4μm @1550nm
Mechanical Ratings
Tensile Strength: 150N (long‑term), 300N (short‑term)
Crush Resistance: 300N/10cm (long‑term), 650N/10cm (short‑term)
Bend Radius: 10D static / 20D dynamic
Operating Temperature: ‑40°C to +70°C
What’s Included
1 × UltraLAN Fiber Drop Cable (Round – Gel Filled) – 2 Core (2000m drum)
