Technical Specifications
| Feature | Details |
|---|---|
| Product Code | CAB-C-64509OD |
| Brand | UltraLAN |
| Type | Outdoor Wall Mount Cabinet |
| Size | 9U |
| Depth | 450mm (500mm incl. rooftop) |
| Door | Safety glass with polyurethane joint strip |
| Locking System | 3‑point swing handle |
| Cooling | 2 ceiling‑mounted fans |
| Ventilation | Side vents with replaceable mesh filters |
| Cable Entry | Round glands with rubber covers (base) |
| Rails | Adjustable 19" with numbered U markings |
| Construction | Powder‑coated electro‑galvanized cold rolled steel |
| Mounting | Wall mount with 4 top hooks |
| Net Weight | 22kg |
| Dimensions | 65 × 50 × 55 cm |
Price Disclaimer: Prices are subject to change at any time without prior notice.

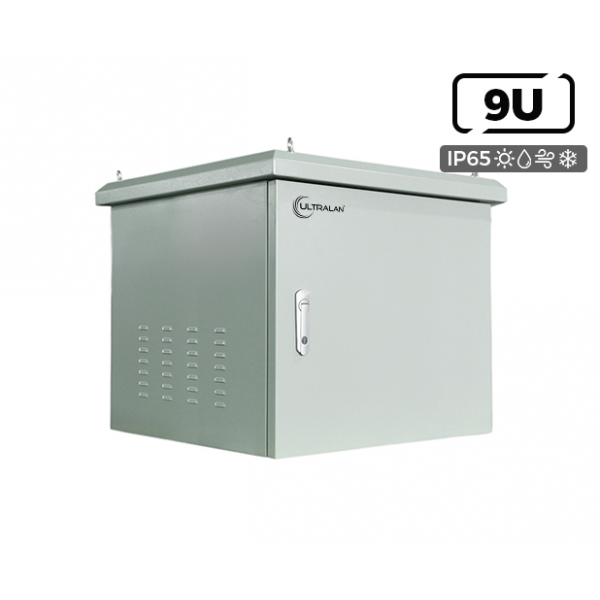

UltraLAN 9U Outdoor Wall Mount Cabinet 450mm Depth
Brand: UltraLAN
Product Code / SKU: CAB-C-64509OD
Model: 9U Outdoor Wall Mount Network Cabinet
Description
The UltraLAN 9U Outdoor Wall Mount Cabinet (CAB‑C‑64509OD) is engineered to protect sensitive networking equipment in harsh outdoor environments.
Constructed from electro‑galvanized cold rolled steel with a powder‑coated finish, the cabinet resists corrosion and weather damage. A polyurethane door joint strip and roof awning provide superior protection against water and dust ingress.
Security is ensured with a 3‑point swing handle locking system, while vented side panels with replaceable mesh filters maintain airflow and dust protection. Two ceiling‑mounted fans improve circulation and heat expulsion. Cable entry is managed via round cable glands with removable rubber covers at the base.
Supplied fully assembled, the cabinet includes adjustable 19" mounting rails with numbered U markings for simplified equipment installation.
Features
Body depth: 450mm (500mm including rooftop)
Includes 2 ceiling‑mounted fans for cooling
Vented side panels with replaceable mesh filters
3‑point swing handle locking system for security
Polyurethane door joint strip for water & dust protection
Roof awning prevents rain ingress from above
Powder‑coated electro‑galvanized cold rolled steel construction
Adjustable 19" mounting rails with numbered U markings
Round cable glands with removable rubber covers (base entry)
Supplied fully assembled for quick installation
4 × top hooks for easier mounting
What’s Included
1 × UltraLAN 9U Outdoor Wall Mount Cabinet (fully assembled)
2 × Ceiling‑mounted cooling fans (pre‑installed)
1 × Bag of cage nuts & bolts
2 × Keys for lockable door
