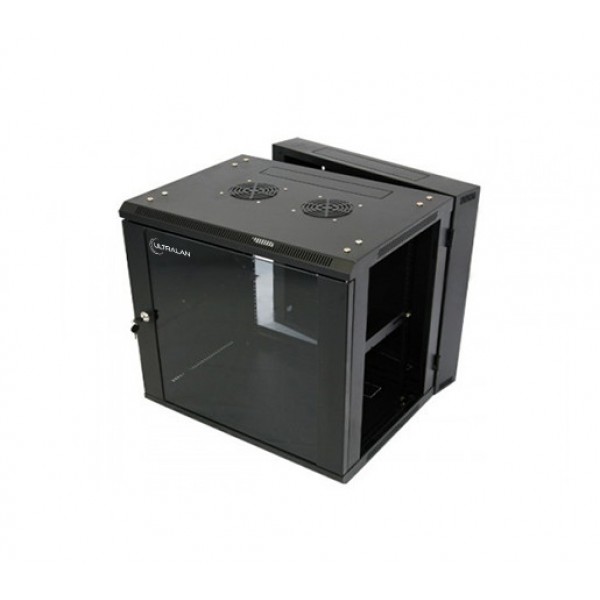

UltraLAN 12U Swing Frame Wall Mount Cabinet | 600mm
Brand: UltraLAN
SKU/Product Code: CAB‑C‑6612WMSA
Description: 12U swing frame wall mount cabinet with 600mm depth, strengthened glass door, removable side panels, and 60kg load capacity.
Product Overview
The UltraLAN CAB‑C‑6612WMSA is a swing frame wall mount cabinet designed for medium‑sized networking installations where space is limited, such as retail shops, small offices, or schools. Its hinged back section allows the cabinet to swing out from the wall, providing easy access to the rear of equipment — especially useful for cable management and maintenance.
Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features removable side panels for quick access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.
Key Features
12U swing frame wall mount cabinet – space‑saving design
Hinged back section – easy rear access for cabling
Enclosure depth: 600mm – accommodates deeper equipment
Strengthened safety glass front door – with lock and keys
Removable side panels – quick access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg
Technical Specifications
Specification Details
Product Code CAB‑C‑6612WMSA
Manufacturer UltraLAN
Rack Units 12U
Rack Width 19"
Depth 600mm
Dimensions (H × W × D) 645 × 615 × 615 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited
📦 Gross Shipping Weight
Actual product weight: ~26–28 kg (typical for 12U swing frame steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 30 kg
🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).
