Technical Specifications
| Feature | Details |
|---|---|
| Product Code | VIGI-C430(2.8MM) |
| Description | TP‑Link VIGI C430 3MP 2.8mm Full‑Color Turret Camera |
| Sensor | 1/2.8" Progressive Scan CMOS |
| Lens | 2.8mm fixed focal length, F1.6 aperture |
| Lens Mount | M12 |
| Resolution | 2304 × 1296 px (3MP) |
| Frame Rate | Up to 30 fps |
| Night Vision | IR LED 850nm, up to 30m + white light full‑color mode |
| Minimum Illumination | 0.005 Lux (color), 0 Lux with IR/white light |
| Compression | H.265+/H.264 |
| Privacy Mask | Up to 4 zones |
| DORI Distance (2.8mm) | Detect 52m, Observe 22m, Recognize 10m, Identify 5m |
| Pan/Tilt/Rotate | Pan 0–360°, Tilt 0–85°, Rotate 0–360° |
| Power Supply | 12V DC ±5%, Max 5W, PoE (802.3af/at) |
| Dimensions | 123 × 123 × 83 mm |
| Net Weight | 0.21 kg |
| Gross Weight | 0.36 kg |
| Operating Temp | -30°C to 60°C |
| Storage Temp | -40°C to 60°C |
| Warranty | 1 Year |
Price Disclaimer: Prices are subject to change at any time without prior notice.

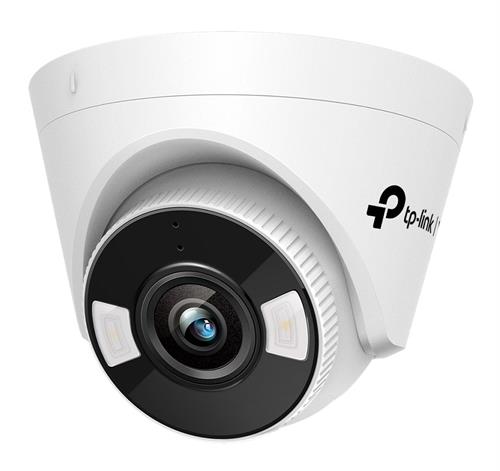

TP‑Link VIGI C430 3MP Full‑Color Camera
Brand: TP‑Link
Product Code / SKU: VIGI-C430(2.8MM)
Description:
TP‑Link VIGI C430 Camera VIGI-C430(2.8MM) - 3MP full‑color turret network camera with 2.8mm fixed lens, 24‑hour color night vision, smart detection, H.265+/H.264 compression, ONVIF support, IP66 weather resistance, retail box, 1‑year warranty.
Product Overview
TP‑Link VIGI C430 2.8mm 3MP full‑color turret camera with 24‑hour color night vision, smart detection, H.265+ compression, and 1‑year warranty.
Highlights
3MP HD (2304 × 1296 px) resolution
1/2.8" Progressive Scan CMOS sensor with F1.6 aperture lens
Fixed 2.8mm focal length lens with M12 mount
24‑hour full‑color vision with supplemental white LEDs
IR night vision up to 30m with 850nm LED
Wide viewing angle: 107.5° horizontal, 57.2° vertical, 128.7° diagonal
DORI distance (2.8mm lens): detect 52m, recognize 10m, identify 5m
Wide dynamic range (DWDR) and 3D DNR noise reduction
Smart detection: human, vehicle, tamper alerts
H.265+/H.264 compression with dual stream support
ONVIF and RTSP compatibility for integration
IP66 weather resistance for outdoor durability
1‑year limited warranty
Compact Item - ships easily
What’s Included
1 × TP‑Link VIGI C430 3MP 2.8mm Full‑Color Turret Camera
Power supply (12V DC)
Mounting accessories (anchors, screws, template)
Waterproof cable attachments
Quick start guide
Retail box packaging
1‑year limited warranty
