Technical Specifications
| Feature | Details |
|---|---|
| Product Code | VIGI-C420I(4MM) |
| Description | TP‑Link VIGI C420I 2MP 4mm IR Turret Network Camera |
| Sensor | 1/2.8" Progressive Scan CMOS |
| Lens | 4mm fixed focal length, F2.0 aperture |
| Lens Mount | M12 |
| Resolution | 1920 × 1080 px (2MP) |
| Frame Rate | Up to 30 fps |
| Night Vision | IR LED 850nm, up to 30m |
| Minimum Illumination | 0.1 Lux (color), 0 Lux with IR |
| Compression | H.265+/H.264 |
| Smart Detection | Human/vehicle classification, intrusion, tamper, object removal |
| Corridor Mode | Yes (9:16 aspect ratio) |
| Power Supply | PoE (802.3af/at), 12V DC ±5%, Max 5W |
| Dimensions | 123 × 123 × 83 mm |
| Net Weight | ~0.19 kg |
| Gross Weight | ~0.34 kg |
| Operating Temp | -30°C to 60°C |
| Storage Temp | -40°C to 60°C |
| Warranty | 1 Year |
Price Disclaimer: Prices are subject to change at any time without prior notice.

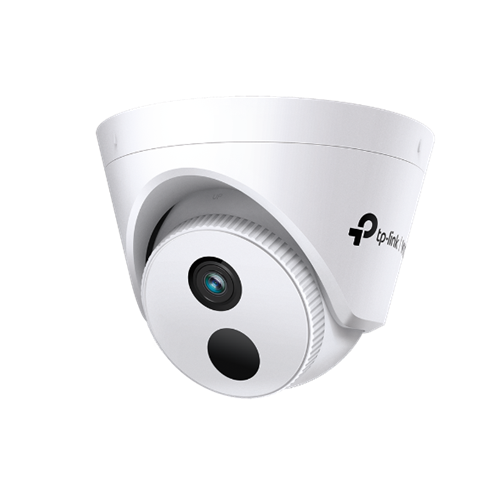

TP‑Link VIGI C420I 2MP 4mm IR Camera
Brand: TP‑Link
Product Code / SKU: VIGI-C420I(4MM)
Description:
TP‑Link VIGI C420I Camera VIGI-C420I(4MM) - 2MP turret network camera with 4mm fixed lens, 30m IR night vision, human/vehicle classification, smart detection, H.265+ compression, corridor mode, PoE support, IP66 weather resistance, retail box, 1‑year warranty.
Product Overview
TP‑Link VIGI C420I 2MP IR turret camera with smart detection, human/vehicle classification, H.265+ compression, PoE support, and 1‑year warranty.
Highlights
2MP Full HD (1920 × 1080 px) resolution
1/2.8" Progressive Scan CMOS sensor with F2.0 aperture lens
Fixed 4mm focal length lens with M12 mount
IR night vision up to 30m with Smart IR technology
Human and vehicle classification for accurate alerts
Smart detection: motion, intrusion, line‑crossing, tamper, object removal/abandonment
Corridor mode (9:16 aspect ratio) for narrow spaces
Smart video enhancements: WDR, 3D DNR, night vision optimization
H.265+ compression reduces bandwidth and storage costs
Simplified deployment with PoE (data + power via single cable)
Flexible management via NVR UI, VIGI app, or VIGI Security Manager
IP66 weather resistance for outdoor durability
1‑year limited warranty
Compact Item - ships easily
What’s Included
1 × TP‑Link VIGI C420I 2MP 4mm IR Turret Camera
Mounting accessories (anchors, screws, template)
Waterproof cable attachments
Quick start guide
Retail box packaging
1‑year limited warranty
