Technical Specifications
| Feature | Details |
|---|---|
| Product Code | SOLMLP1648100 |
| Description | Solarix Must 51.2V 100Ah LiFePO4 Battery |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Usable Energy | 4.8kWh |
| Charge Current | 100A continuous |
| Discharge Current | 100A continuous |
| Equalised Voltage | 57.6V |
| Cut‑off Voltage | 44V–45.6V |
| Communication | CAN 2.0, RS232, RS485 |
| Interface | LCD control panel |
| Parallel Support | Up to 4 packs |
| Cycle Life | 4000 cycles @ 100% DOD, 6000+ cycles @ 80% DOD |
| Design Life | ~15 years |
| Dimensions | 400 × 150 × 580 mm |
| Weight | ~44 kg |
| Warranty | 3 Years |
Price Disclaimer: Prices are subject to change at any time without prior notice.

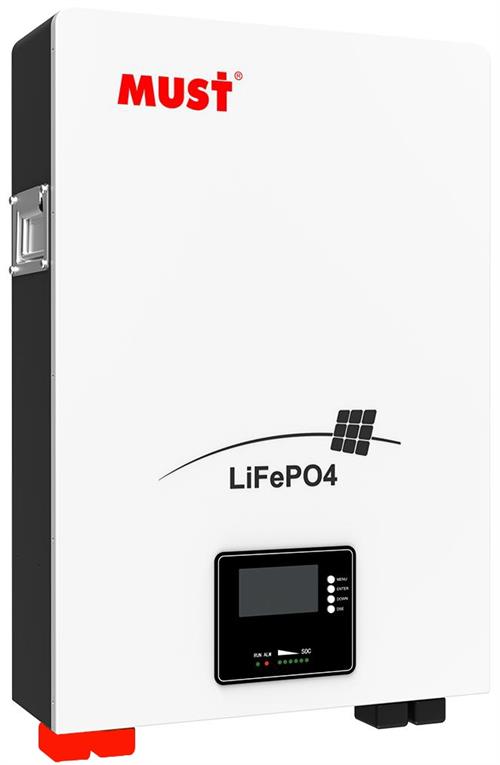

Solarix Must 51.2V 100Ah LiFePO4 Battery
Brand: Solarix
Product Code / SKU: SOLMLP1648100
Description (Optimized):
Solarix Must Battery SOLMLP1648100 - 51.2V 100Ah LiFePO4 wall‑mount module with 4.8kWh usable energy, advanced BMS with CAN/RS485 communication, LCD control panel, parallel connection up to 4 packs, inverter compatibility up to 7kVA, retail box, 3‑year warranty.
Product Overview (≤155 Characters)
Solarix Must 51.2V 100Ah LiFePO4 wall‑mount battery with 4.8kWh energy, advanced BMS, LCD panel, CAN/RS485 communication, and 3‑year warranty.
Highlights
51.2V nominal voltage, 100Ah rated capacity (5HR: 110Ah)
Usable energy: 4.8kWh per module
Continuous charge/discharge current: 100A
Equalised charge voltage: 57.6V
Discharge cut‑off voltage: 44V–45.6V
Bulk voltage: 55.2V–56.8V, float voltage: 52.8V–54.4V
Wall‑mount installation with brackets included
Advanced Battery Management System (BMS) with current limiting
Communication: CAN 2.0, RS232, RS485 for inverter integration
LCD control panel with battery level indicator
Parallel connection supported (up to 4 packs)
Compatible with hybrid inverters up to 7kVA (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Cycle life: 4000 cycles @ 100% DOD, 6000+ cycles @ 80% DOD
Design life: 15 years
Dimensions: 400 × 150 × 580 mm
Weight: 44 kg
3‑year limited warranty
Bulky Heavy Item - shipping requires special handling
What’s Included
1 × Solarix Must 51.2V 100Ah LiFePO4 Wall‑Mount Battery Module
LCD control panel
Mounting brackets
Quick installation guide
Retail box packaging
3‑year limited warranty
