Technical Specifications
| Feature | Details |
|---|---|
| Product Code | SOLFS3500VA |
| Description | Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter |
| Rated Power | 3000W |
| Peak Output | 3.5kW |
| Efficiency | 90% |
| DC Input | 24VDC, 138.9A |
| AC Output | 230VAC, 50/60Hz, 13A |
| DC Output | 27VDC, 60A |
| AC Input | 230VAC, 50/60Hz, 20A |
| Solar Charger | PWM 60A |
| Max Solar Voltage | 500VDC |
| Min Solar Voltage | 40VDC |
| Max Solar Charge Current | 100A |
| Battery Types | Lithium, Gel, Lead Acid |
| Protection | Overload, over‑temperature, short circuit |
| Features | LCD display, smart battery charger, cold start |
| Dimensions | Wall‑mount unit |
| Protective Class | I |
| Degree of Protection | IP21 |
| Warranty | 6 Months |
Price Disclaimer: Prices are subject to change at any time without prior notice.

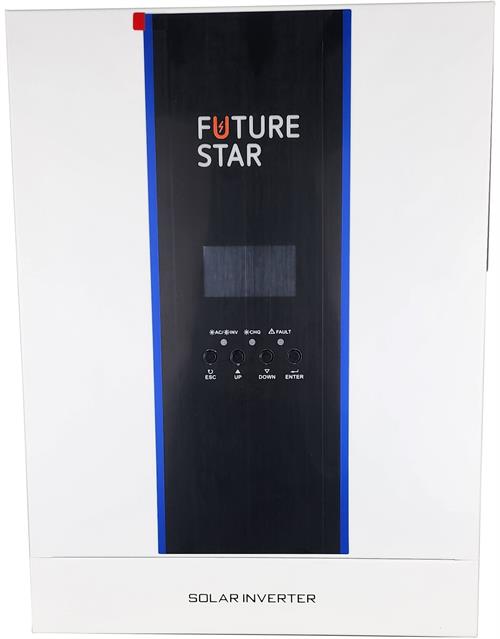

Solarix FutureStar 3500VA 24VDC Inverter
Brand: Solarix
Product Code / SKU: SOLFS3500VA
Description
Solarix FutureStar Inverter SOLFS3500VA - 3500VA 24VDC pure sine wave inverter with built‑in 60A PWM solar charge controller, 3000W rated power, 3.5kW peak output, 90% efficiency, AC input/output 230V 50/60Hz, DC output 27VDC 60A, max solar charge current 100A, LCD display, smart battery charger, cold start function, retail box, 6‑month warranty.
Product Overview
Solarix FutureStar 3500VA 24VDC inverter with 60A PWM solar charger, 3000W rated power, 3.5kW peak output, LCD display, and 6‑month warranty.
Highlights
3500VA / 3000W pure sine wave inverter
Peak output: 3.5kW, efficiency up to 90%
Built‑in 60A PWM solar charge controller
DC input: 24VDC, AC output: 230VAC 50/60Hz
DC output: 27VDC, 60A
Max solar charge current: 100A
Nominal PV voltage: 100VDC (range 40V–500VDC)
Configurable AC/solar charger priority via LCD display
Smart battery charger design for optimized performance
Auto restart while AC recovers
Cold start function for reliable backup power
Overload, over‑temperature, and short‑circuit protection
Compatible with lithium, gel, and lead‑acid batteries
Wall‑mount design, compact hybrid unit
6‑month limited warranty
Bulky Heavy Item - shipping requires special handling
What’s Included
1 × Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter
Built‑in 60A PWM solar charge controller
LCD display interface
Quick installation guide
Retail box packaging
6‑month limited warranty
