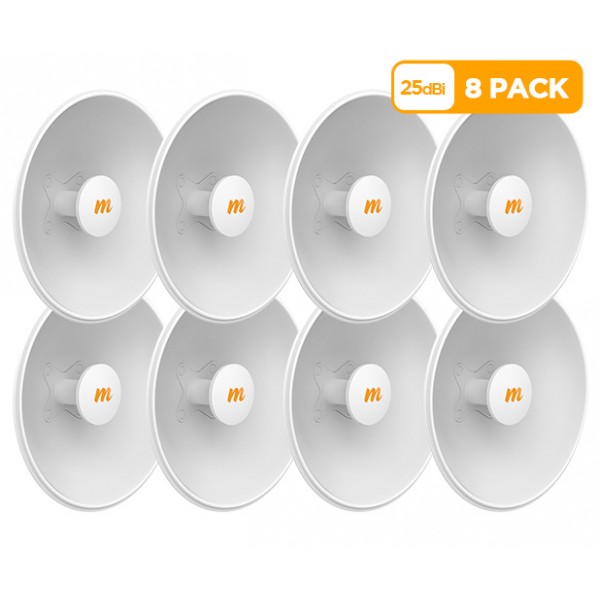

Mimosa N5-X25 twist-on 5GHz 25dBi antenna 430mm (8 Pack) | MIM-N5-X25-8PACK
Mimosa N5-X25 twist-on 5GHz 20dBi antenna 430mm
8 Pack
The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi by using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
The N5-X series is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
Specifications:
Gain: 25dBi
Polarization: Dual-Slant: 45º
Beamwidth, Symmetric (3 dB): 8º
Front-to-Back Ratio (min): 40dB
Front-to-Side Ratio (min): >45dB
Dimensions: Diameter: 429 mm (16.89”) Depth: 116 mm (4.57”)
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 36.26 kg @ 160 km/h (79.95 lbs @ 100 mph)
Specifications
| Brand | Mimosa |
| Sub-Category | Accessories & Antenna |
| Warranty | manufacturer’s standard warranty |
