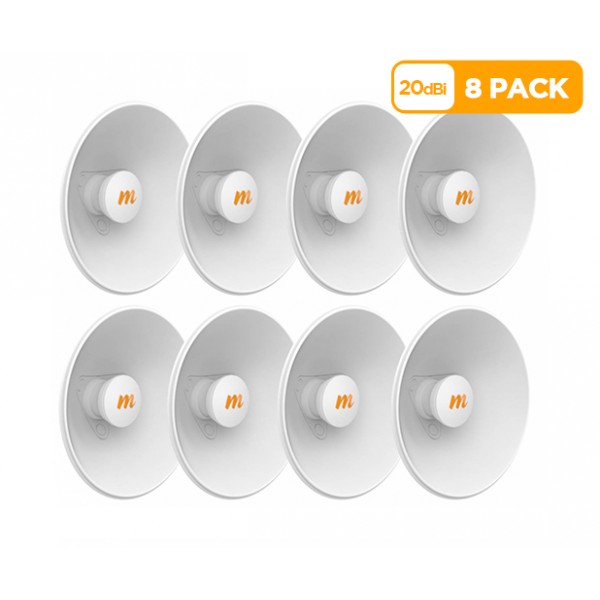

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm (8 Pack) | MIM-N5-X20-8PACK

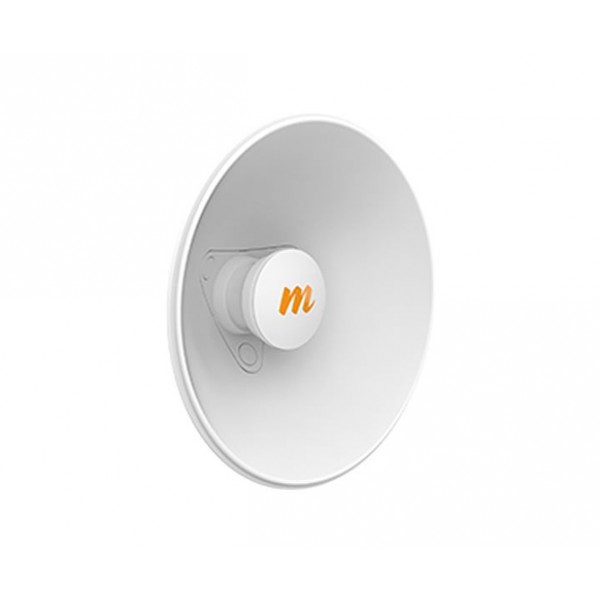

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm
8 Pack
The C5x’s native 8dBi gain can be increased to 12dBi, 16dB, 20dBi or 25dBi by using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
The N5-X series is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
Specifications:
Gain: 20dBi
Polarization: Dual-Slant 45º

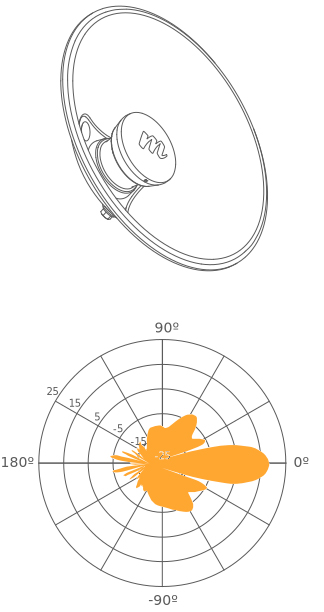

Beamwidth, Symmetric (3dB): 12º
Front-to-Back (min): 35 dB
Front-to-Side Ratio: 37 dB
Weight: 0.77 kg (1.70 lbs)
Dimensions: Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 14.55 @160 km/h (32.07 lbs @ 100 mph)
Specifications
| Brand | Mimosa |
| Sub-Category | Accessories & Antenna |
| Warranty | manufacturer’s standard warranty |
