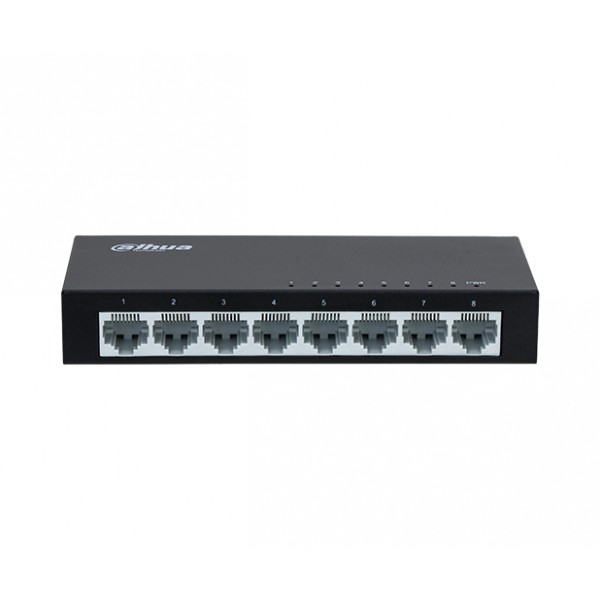

Dahua 8‑Port Unmanaged Ethernet Switch
Brand: Dahua
Product Code: DH‑PFS3008‑8ET‑V2
Description: Dahua 8‑Port Unmanaged Ethernet Switch – 10/100 Mbps, Plug & Play, Compact Design
Product Overview
The Dahua 8‑Port Unmanaged Ethernet Switch (DH‑PFS3008‑8ET‑V2) is a compact, lightweight networking solution designed for reliable performance. Supporting eight 10/100 Mbps adaptive ports, it offers plug‑and‑play operation with no configuration required.
Built with a robust metal casing, the switch ensures durability and long‑term reliability. With desktop and wall‑mount installation options, it’s suitable for a wide range of scenarios. Optimized for performance, all ports transmit streams at high speeds without delay, while static and lightning protection enhance safety.
Highlights
8 × 10/100 Mbps adaptive Ethernet ports
Compact, lightweight design (0.23 kg net weight)
Plug‑and‑play, no configuration required
Robust metal casing for durability
Desktop or wall‑mount installation supported
Optimized performance with high‑speed packet forwarding
Static protection: 8 kV air discharge, 4 kV contact discharge
Lightning protection: 2 kV common mode
CE & FCC certified
Technical Specifications
Feature Details
Product Code DH‑PFS3008‑8ET‑V2
Ports 8 × 10/100 Base‑T
Switching Capacity 1.6 Gbit
Packet Forwarding 1.1904 Mpps
Packet Buffer Size 768 kbit
MAC Table Size 2K
Power Supply 5 VDC, 1 A
Power Consumption 0.1 W (idle), 0.75 W (full load)
Operating Temp 0 °C to +45 °C
Storage Temp –40 °C to +70 °C
Humidity 5%–95% RH (operating & storage)
MTBF 929.51 years
Dimensions 133.5 × 56.0 × 22.0 mm
Packaging Dimensions 136.0 × 55.0 × 153.0 mm
Net Weight 0.23 kg
Gross Weight 0.35 kg
Casing Material Metal
Installation Desktop or wall mount
Certifications CE, FCC
What’s Included
1 × Dahua 8‑Port Unmanaged Ethernet Switch
Power adapter
User manual
Warranty documentation
