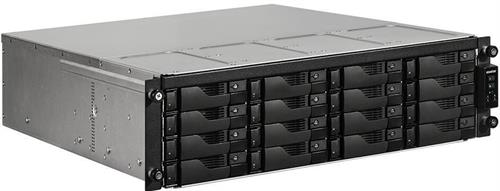

Asus 3U Rack Mount 16 bay AS7116RDX NAS | AS7116RDX
Asus 3U Rack Mount 16 bay AS7116RDX NAS - Intel Xeon E-2224 3.4GHz up to 4.6GHz 8MB Cache Quad 4x Core Processor with no intergrated Graphics, 8GB DDR4 ECC UDIMM Memory, 16x (2.5 inch / 3.5 inch SATA II/III HDD or SSD), 2x M.2 22110/2280/2260/2242 NVMe or SATAIII SSD, 4x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-C, 4x Gigabit Ethernet (1G/100M), 1x Gen3 x8 slot (x8 link); 2x Gen3 x4 slots (x4 link) *for optional expansion 10, 25, 40, 50 GbE / SAS card, 2x 550W Power Supply unit, Retail Box, 1 year warranty
Product Overview
The Asus AS7116RDX 3U Rack Mount NAS features an Intel Xeon E-2224 processor with a powerful 8GB DDR4 ECC memory, designed for robust data management and storage solutions. With 16 bays for SATA HDDs or SSDs and dual M.2 slots for NVMe drives, it supports extensive expansion and RAID configurations for optimized performance. Equipped with multiple USB and Gigabit Ethernet ports, this NAS ensures high-speed connectivity and reliability for enterprise-level applications
Specifications
•Product code: AS7116RDX
•Description: Asus 3U Rack Mount 16 bay AS7116RDX NAS
•CPU Quad-Core: 3.4 to 4.6 GHz
•Processor Intel Xeon E-2224
•Memory 8 GB ECC DDR4
•RAM Configuration / Capacity 1x User-Replaceable 8 GB / 4 Slots Supporting up to 128 GB
•RAID Yes, Supported RAID Modes: 6 / 5 / JBOD / 0 / 1
•Number of Bays 2x M.2 (22110) NVMe
•16x 2.5"/3.5" SATA III (Hot-Swap)
•Maximum Capacity
•With Drives Installed up to 288 TB
•With Drives Installed up to 432 TB (with Expansion)
•Inputs/Outputs
•4x RJ45 Gigabit Ethernet
•4x USB-A 3.1/3.2 Gen 2
•2x USB-C 3.1/3.2 Gen 2
•PCI Expansion
•2x PCIe 3.0
•1x PCIe 3.0
•Yes, 512 LUN / 256 Target
•Software
•Installed Operating System
•ADM 3.5
•OS Compatibility
•Windows XP or Later
•Windows Server 2003 or Later
•Linux
•FreeBSD
•Security
•Encryption
•256-Bit AES
•Security Features
•Input Power
•100 to 240 VAC, 60 / 50 Hz
•Power Consumption
•121.7 W (Typical)
•51.5 W (Idle)
•7.55 W (Standby)
•PSU Wattage
•32 to 104°F / 0 to 40°C at 5 to 95% Humidity
•Cooling 3x 60 mm Fans
•Dimensions 21.1 x 17.3 x 5.2" / 535.9 x 439.4 x 132.1 mm
•Weight 33.7 lb / 15.3 kg
