Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

32 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/ 5MP Lite@12fps
Up to 40 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported.
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search.
4-ch face picture capture
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

Pro Series with AcuSense
Detect humans & vehicles and search fast with deep learning technology

- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/ 5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Specifications:

Product colour: Black
Maximum video resolution: 3840 x 2160 pixels
Video compression formats: H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Video resolutions: 1280 x 720,1920 x 1080,2560 x 1440,3840 x 2160
Video input channels: 32 channels
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Supported network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Ethernet LAN data rates: 10,100,1000 Mbit/s
Maximum HDD capacity: 12 TB
Supported HDD interfaces: Serial ATA
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

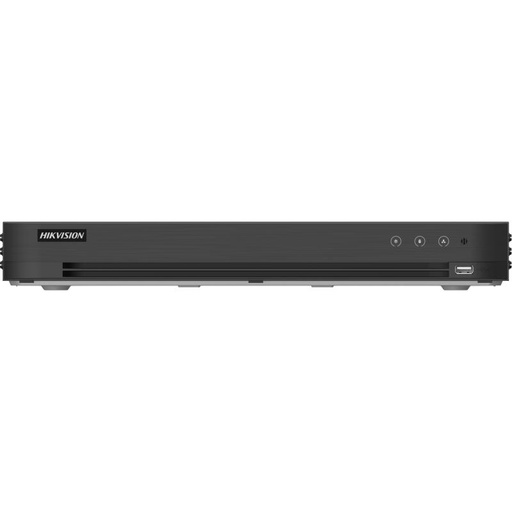

Hikvision 16-channel 1080p 1U H.265 AcuSense DVR IDS-7216HQHI-M2/XT

Features:

16 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5MP Lite@12fps
Up to 24 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio technology
General
Power Supply12 VDC, 3.3 A
Consumption≤40 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
Weight≤ 2 kg (4.4 lb)

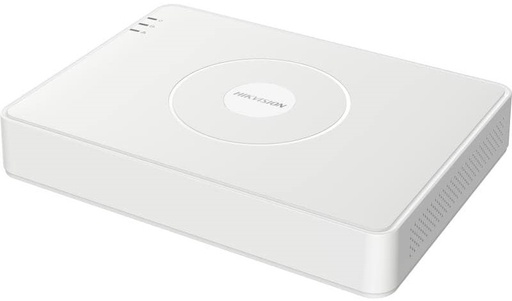

Hikvision 16-ch 1080p Mini 1U H.265 AcuSense DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
Perimeter Protection
Line Crossing Detection/Intrusion Detection4-ch
Facial Detection
Facial Detection and CaptureFace picture detection, face picture search
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Network
Remote Connection128
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
General
Power Supply12 VDC, 2A
Consumption≤ 24W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1 kg (2.2 lb)

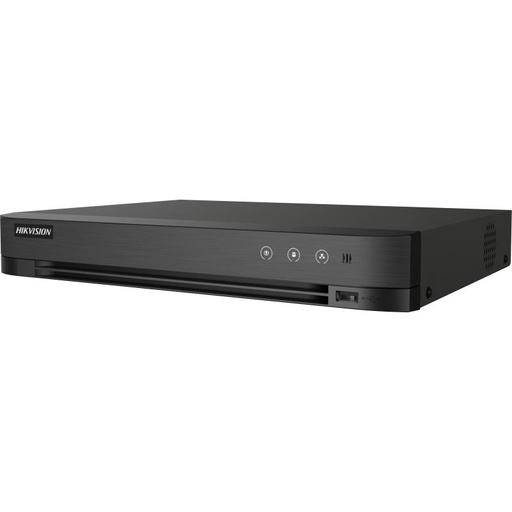

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR 1 SATA 12TB supports 2ch facial recognition or 4ch advanced perimeter VCA or 8ch Motion 2.0
Feature
8 channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Network
Remote Connection64
Total Bandwidth96 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial InterfaceRS-485 (half-duplex)
SATA1 SATA interface, up to 10 TB capacity for each disk
Alarm In/OutN/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)

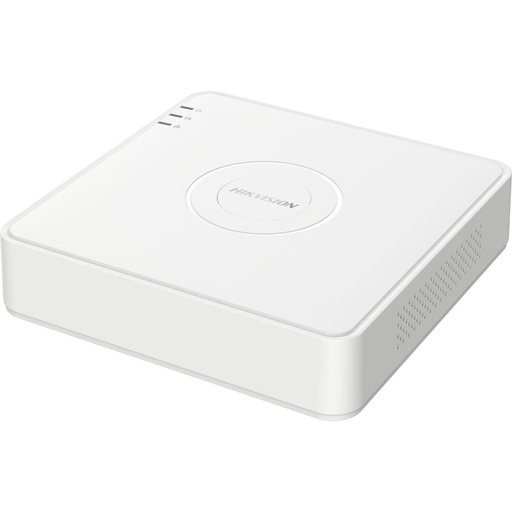

Hikvision 7100 Series 8-ch AcuSense 1080p Mini 1U DVR

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 4 MP Lite resolution

Storage and Playback

1 SATA interface (up to 10 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
2x USB 2.0
Audio via coaxial cable
Up to 12-ch IP camera inputs (up to 6 MP)
Up to 1080p@15 fps encoding capability
General
Power Supply12 VDC, 1.33 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 1 kg (without HDD, 2.2 lb.)

Hikvision 7100 Value Series 4-ch 1080P AcuSense 1U Mini DVR iDS-7104HQHI-M1/S

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Up to 2-ch Human/Vehicle Analysis
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
4-ch BNC interface, supporting coaxitron connection
Audio via coaxial cable
Up to 6-ch IP camera inputs (up to 6 MP)
1x RJ45 10/100 Mbps self-adaptive Ethernet interface (Additional switch required for IP Camera's)
Encoding ability up to 3K/5M Lite @ 12 fps
2x USB 2.0 Real panel

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 3K/5 MP Lite resolution
Storage and Playback

1x SATA interface (up to 6 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Hikvision 4-ch 720p Mini 1U H.265 DVR
Smart Function

Deep learning-based motion detection 2.0

Compression and Recording

H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs

Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Playback

Smart search for efficient playback

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 2 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
1 SATA interface - Up to 10 TB capacity (HDD not included)

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)

HiLook 16-ch 5 MP 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.

Video and Audio
IP Video Input 8-ch (up to 24-ch)
Enhanced IP mode on:
16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps,
4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20
fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,
720p@30 fps, 720p@25 fps

CVBS Input PAL/NTSC
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable

Video Output Mode HDMI/VGA simultaneous output

Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the
audio input) Synchronous playback16-ch

Network
Total Bandwidth128 Mbps Remote Connection128 Network ProtocolTCP/IP, PPPoE, DHCP,
HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
General
Power Supply12 VDC, 5 A
Consumption≤ 25 W (without HDD)

Product Overview

The Hilook 4Ch 4x 2MP Bullet Cameras with 330GB SSD CCTV DIY Kit provides an effective security solution for homes and small businesses, featuring four high-definition 2MP bullet cameras that capture clear footage in various weather conditions. With a user-friendly design, this kit allows for easy installation without professional assistance and includes a robust 330GB SSD for reliable video storage. Equipped with night vision capabilities, it ensures continuous monitoring, making it an ideal choice for enhancing your security system.

Specifications

Product Code: HIL-2402-330GB
Description: Hilook 4Ch 4x 2MP Bullet Cameras with 330GB SSD CCTV DIY Kit
High-Resolution Cameras: Four 2MP bullet cameras for sharp and detailed imagery.
Reliable Storage: 330GB SSD providing robust storage for extensive footage.
Weatherproof Design: Cameras built to endure both sunny and rainy conditions.
Easy Installation: DIY installation suitable for homes and small businesses.
Remote Viewing: Monitor your premises from anywhere via a user-friendly interface.
Night Vision: Clear night vision ensures reliable security around the clock.

HiLook 8 Channel DVR with 4x 1080p HD Bullet Cameras and 4x 1080p HD Dome Cameras DIY Combo Kit - Includes 8x 18m Pre-Built RG59 Cables, 1x 12V 5A PSU, 1x 8 Way Power Splitter, HDMI And VGA Outputs, 10/100 mbps RJ45 UTP Network Port, USB 2.0 Port, H.264+ Compression, Remote Viewing From Anywhere On PC and Mobile Smart Phone - Installer Kit, Retail Box , 1 year warranty

Product Overview
The HiLook 8 Channel DVR with 8x 1080p HD Bullet Cameras provides high quality Video Surveillance product at a more affordable price for Small- And Medium-Sized Projects At Home Or The Office. This DIY combo kit comes complete with a HiLook 8 Channel DVR , 4x 1080p HD Bullet Cameras and 4x 1080p HD Dome Cameras.

Highlights

•HiLook 8 Channel DVR
•One SATA Interface (Up To 6 TB Capacity Per HDD) No Hard Disk Installed
•8x 20m Pre-Built RG59 Cables
•1x 12V 5A PSU
•1x 8 Way Power Splitter
•1x HDMI And 1x VGA Outputs
•1x RJ45 UTP Network Port
•One-Key Enable H.264 Compression
•Connectable To Turbo HD/HDCVI/AHD/CVBS Signal Input
•Long Distance Transmission Over UTP And Coaxial Cable
•1 Channel RCA Linear Audio Output
•Smart Search For Efficient Playback
•Remote Viewing From Anywhere On PC And Mobile Smart Phone

Specifications

•Stock Code: TK-8082MH-PP
•Description: HiLook 8 Channel DVR with 4x 1080p HD Bullet Cameras and 4x 1080p HD Dome Cameras DIY Combo Kit
•Product Type CCTV Security System For Small- And Medium-Sized Projects At Home Or The Office
•Smart Infrared LED Providing Crisp And Clear Night Surveillance
•Camera Range: 30M Day And 20M Night
•Switchable TVI/AHD/CVI/CVBS
•8x 20m Pre-Built RG59 Cables
•1x 12V 5A PSU
•1x 8 Way Power Splitter
•1x HDMI And 1x VGA Outputs
•1x RJ45 UTP Network Port
•One-Key Enable H.264 Video Compression
•Connectable To Turbo HD/HDCVI/AHD/CVBS Signal Input
•8 channel Analogue Video Input
•Video Input Interface: BNC (1.0 Vp-p, 75?)
•Audio Compression:G.711u
•Audio Input Interface: RCA (2.0 Vp-p, 1 k?)
•Two-way Audio:1-ch RCA(2.0Vp-p, 1k?)
•Long Distance Transmission Over UTP And Coaxial Cable
•1 x Channel RCA Linear Audio Output
•Smart Search For Efficient Playback
•Remote Viewing From Anywhere On PC And Mobile Smart Phone

HiLook 16 Channel DVR with 16x 1080p HD Bullet Cameras DIY Combo Kit - Includes 16x 18m Pre-Built RG59 Cables, 2x 12V 5A PSU, 2x 8 Way Power Splitter, HDMI And VGA Outputs, 10/100 mbps RJ45 UTP Network Port, USB 2.0 Port, H.264+ Compression, Remote Viewing From Anywhere On PC and Mobile Smart Phone - Installer Kit, Retail Box , 1 year warranty

Product Overview
The HiLook 16 Channel DVR with 16x 1080p HD Bullet Cameras DIY Combo Kit is manufactured by HikVision and provides high quality Video Surveillance product at a more affordable price for Small- And Medium-Sized Projects At Home Or The Office. This DIY combo kit comes complete with a HiLook 16 Channel DVR , 16x 1080p HD Bullet Cameras and Includes 16x 20m Pre-Built RG59 Cables, 1x 12V 5A PSU, 1x 16 Way Power Splitter, HDMI And VGA Outputs ,RJ45 UTP Network Port H.264 Compression it also allows for Remote Viewing From Anywhere On PC and mobile smart phone.

Highlights

• HiLook 16 Channel DVR and 16x 1080p HD Bullet Cameras
• One SATA Interface (Up To 6 TB Capacity Per HDD) No Hard Disk Installed
• 16x 20m Pre-Built RG59 Cables
• 1x 12V 5A PSU
• 1x 16 Way Power Splitter
• 1x HDMI And 1x VGA Outputs
• 1x RJ45 UTP Network Port
• One-Key Enable H.264 Compression
• Connectable To Turbo HD/HDCVI/AHD/CVBS Signal Input
• Long Distance Transmission Over UTP And Coaxial Cable
• 1 Channel RCA Linear Audio Output
• Smart Search For Efficient Playback
• Remote Viewing From Anywhere On PC And Mobile Smart Phone

KGuard 16 Channel HD Series + 8 Cameras Combo Kit ( Hybrid DVR Supports 16CH Analoge & 8 CH IP Cameras, 24 Cameras Combined) - H.264 compression latest recording technology HD recording resolution quality is better than D1 Full HD output with 1080P display standard for connection to HDTV Easy to set up network without difficult configuration Exclusive DVR to connect Cloud Service and you have a personal space Advanced motion schedule can manage email alerts easily Free "kview" allows remote monitoring on your smartphones and tablets KGuard Fulcolor to provide excellent colorful images Using 3.6mm fixed lens with 75 degrees viewing angle to monitor particular areas 8 X 720P Cameras high resolution to make video clearer Night vision up to 30M in total darkness Waterproof case to protect the Camera and survive rainy days.Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two, Retail Box , 1 Year warranty

Product Overview
The Hilook 16Ch 16x 2MP Bullet Cameras with 1TB SSD CCTV DIY Kit enhances security for homes and businesses with sixteen high-definition 2MP bullet cameras, ensuring clear video surveillance. The included 1TB SSD provides ample storage for continuous recording, allowing easy access to footage whenever needed. Designed for DIY installation, this comprehensive kit is perfect for users seeking a reliable and scalable monitoring solution.
Specifications
Product Code: HIL-21602-1TBSSD
Description: Hilook 16Ch 16x 2MP Bullet Cameras with 1TB SSD CCTV DIY Kit
Camera Resolution: 2 Megapixels
Storage Capacity: 1TB Solid State Drive
Number of Channels: 4
Weatherproof Rating: IP66
Night Vision Range: Up to 30 meter
Remote Viewing: Yes, via moble app

Securnix PCI DVR Card 4 channels H.264 compression card - Support D1 recording with 12/15fps for all channels Retail Box , 1 year warranty

Features

• H.264 compression algorithm with high compression ratio
• Good image quality
• Real-time live display with D1 resolution
• Real-time video/audio recording with no frame lost
• Support multiple resolution type: D1, 2CIF, CIF, QCIF
• Supports D1 12fps(PAL)/15fps(NTSC) for all channels
• Intelligent search and playback support
• Play back the video only motion detection occurs in the area you selected
• Dual encoding streams support flexible for network transmission
• Provide full SDK & demonstration with source code
• Provide player SDK & network SDK for PC platform
• Smart video detection: motion detection
• Camera blank, video loss
• Smart Camera settings: privacy masking, Camera lock
• Color setting, and title display
• Support OSD, LOGO & MASK Overlay

Securnix PCI DVR Card 8 channels H.264 compression card Support D1 recording with 12/15fps for all channels, Retail Box, 1 year warranty

Features

• H.264 compression algorithm with high compression ratio
• Good image quality
• Real-time live display with D1 resolution
• Real-time video/audio recording with no frame lost
• Support multiple resolution type: D1, 2CIF, CIF, QCIF
• Supports D1 12fps(PAL)/15fps(NTSC) for all channels
• Intelligent search and playback support
• Play back the video only motion detection occurs in the area you selected
• Dual encoding streams support flexible for network transmission
• Provide full SDK & demonstration with source code
• Provide player SDK & network SDK for PC platform
• Smart video detection: motion detection
• Camera blank, video loss
• Smart Camera settings: privacy masking, Camera lock
• Color setting, and title display
• Support OSD, LOGO & MASK Overlay

Securnix PCI 8 Channel DVR TD-4408-S series professional 4/8CH real time HD1/near real time D1 hardware compression cards.

Product Overview
The Securnix PCI 8 Channel DVR TD-4408-S series are professional 4/8CH real time HD1/near real time D1 hardware compression cards adopt standard H.264 baseline compression format and industry’s advanced SOC technics, to guarantee excellent video quality and outstanding robustness of system.

TD-4400 supports 4/8/16CH video input, and 4/8/16CH audio input. User can get powerful network function, smart phone surveillance, and centralized control by CMS.

Complete network SDK available to easily integrate with other applications.

Features: 8 CH real time recording. Standard H.264 main profile compression High image quality low bite rate Hardware compression to free CPU resource. Powerful H.264 SOC technics and low power consumption chip, a guarantee of robustness of system Display mode: 1/4/8/16/24/32/64 divisions Powerful smart phone surveillance supporting Windows Mobile, Symbian, and IPhone. Google phone, Blackberry Compatible with 3G. Recording Mode: manual

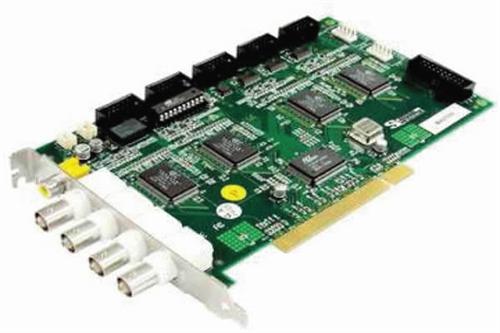

Securnix 16CH 400 FPS DVR CARD - 16 Channels Camera input Display Speed 480FPS (NTSC) / 400FPS (PAL) Recording Speed 480FPS (NTSC) / 400FPS (PAL) Screen Splits 1, 4, 7, 9, 13, 16 Splits Audio Input 16 Channel Sensor Input 16 Channel Alarm Output 8 Channel Image Size 2 - 3KB (320 x 240, medium level), Retail Box , 1 year warranty

Specifications:

• 16 Channel camera input
• 480FPS (NTSC) / 400FPS (PAL) Display screen
• 480FPS (NTSC) / 400FPS (PAL) Recording speed
• 1, 4, 7, 9, 13, 16 screen splits
• 16 Channel audio input
• 16 Channel sensor input
• 8 Channel alarm output

HiLook 8CH Hybrid DVR High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable Audio via coaxial cable, SATA Interface Support up to 4TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Deep learning based human and vehicle targets classification of Motion Detection 2.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Product Overview
HiLook 8CH Hybrid DVR High Definition Stand Alone DVR

Features

•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Up to 10-ch IP camera input (up to 5 MP)

Specifications

•Product code: DVR-108G-M1
•Description: HiLook 8CH Hybrid DVR High Definition Stand Alone DVR
•Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
•Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
•Main stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
•For 1080p and 720p stream access CIF/QVGA@15 fps
•For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
•Support H.265+/H.265/H.264+/H.264 IP cameras
•BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
•HDTVI Input:1080p25, 1080p30, 720p25, 720p30
•AHD Input: 1080p25, 1080p30, 720p25, 720p30
•HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
•HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•Video Output Mode: HDMI/VGA simultaneous output
•Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)
•Audio Output: 1-ch, RCA (Linear, 1 KΩ)
•TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
•1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•Power Supply: 12 VDC, 1.5 A
•200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•≤ 1 kg (without HDD, 2.2 lb.)

8-ch 720p Mini 1U H.265 DVR Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; SATA 1 SATA interface Capacity Up to 4 TB capacity for each disk

Product Overview

The 8-ch 720p Mini 1U H.265 DVR features deep learning-based motion detection 2.0, enabling accurate human and vehicle classification to reduce false alarms. It supports H.265 Pro+/H.265 Pro/H.265 video compression and various video inputs, including HDTVI, AHD, CVI, CVBS, and IP, with up to 10 IP camera inputs. Equipped with a SATA interface for storage up to 4TB, it offers efficient recording and playback capabilities.

Features

•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Audio via coaxial cable
•Up to 10-ch IP camera inputs (up to 5 MP)
•Up to 1080p Lite@15 fps encoding capability
•Max. 1200 m for 720p HDTVI signal

Specifications

•Product Code: DS-7108HGHI-M1
•Description: Hikvision DS-7108HGHI-M1 DVR
•Power Supply: 12 VDC, 1.5 A
•Consumption: ≤ 17 W (without HDD)
•Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
•Working Humidity: 10% to 90%
•Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•Weight: ≤ 1 kg (without HDD, 2.2 lb.)
•Total Bandwidth: 72 Mbps
•Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
•Remote Connection: 64
•Network Interfac : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•ideo Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
•Main stream:
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
•4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
•Video Bitrate : 32 Kbps to 4 Mbps
•Stream Type : Video, Video & Audio
•Audio Compression : G.711u
•Audio Bitrate : 64 Kbps
