Linkbasic's CAB-P10 is a South African 10-way switched PDU with a molded direct-attached power cable. It features 10x 16A power sockets enclosed in a 1.5U black Aluminum case.

*Note: Compatible cabinets from CAB-15U and up.

SKU CAB-P10
Manufacturer Linkbasic
Manufacturer Product Code CFU10-G-V1.5U-2.0-16A

Specifications

Cable: Molded 2m
Size: 1.5U
Material: Aluminum Shell
Voltage: 220V-250V 50Hz-60Hz
Maximum Current: 16A
Mounting: Vertical Mounting in Network Cabinet
Dimensions: 669.2 x 62.2 x 45mm

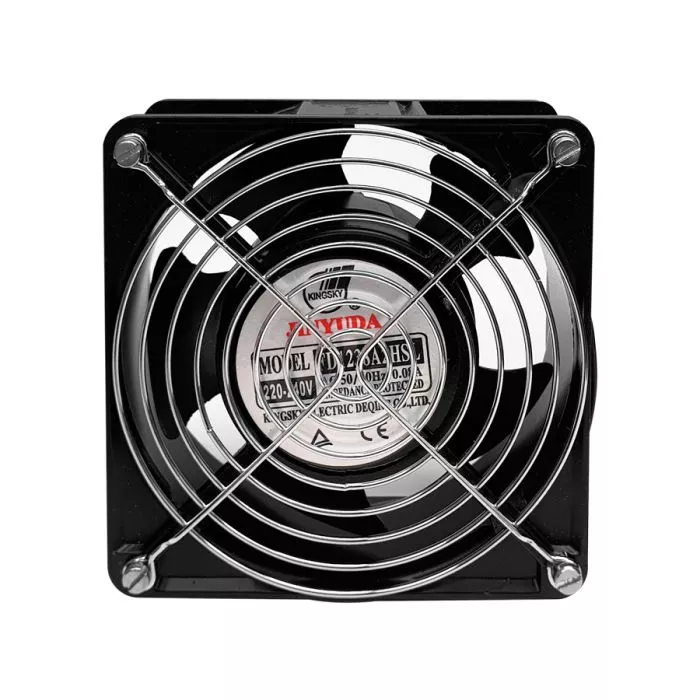

Linkbasic's CAB-FAN is a long-life fan that will cool your free-standing cabinet, quietly.

SKU CAB-FAN
Manufacturer Linkbasic
Manufacturer Product Code CFJ01

Specifications

Colour: Black
Frame: Aluminium
Operating Temperature: 0ºC to 70ºC
Max Power Consumption: 17-20W (0.08A)
Dimensions: 120 x 120 x 38mm

Linkbasic's CAB-MR42, is a 42U (1.866m) long, steel mounting rail that can be used in either the CAB-42U or CAB-42U1M. It is used to mount shelves, switches or other rack-mountable items/devices.

The rail is marked at every U-height in ascending order of U-height from both the bottom and top, so it can be used on either side of the cabinet and still have the correct marking in the correct place on the rail.

KU CAB-MR42
Manufacturer Linkbasic
Manufacturer Product Code NCB-ZJ42-60-YD

Specifications

Colour: Grey
Material: Cold-rolled steel

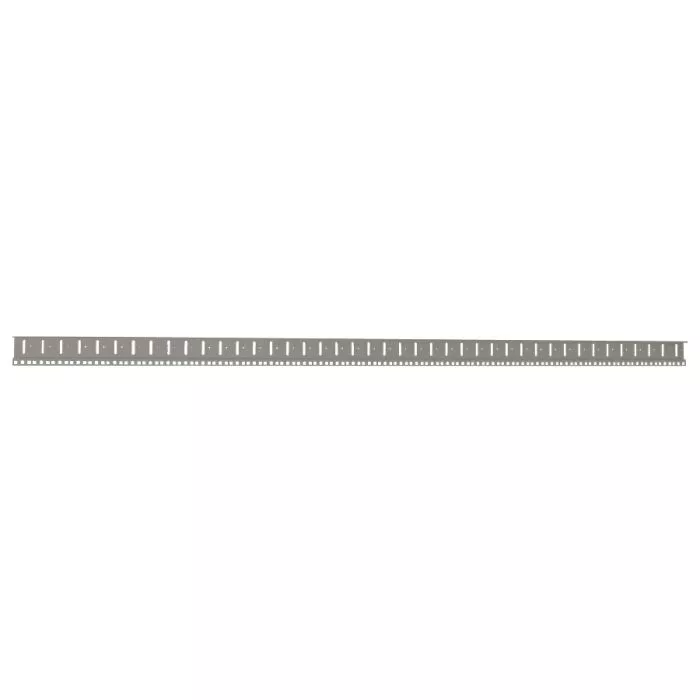

LinkBasic's CAB-MR27 is a 27U (1.2m) long, steel mounting rail that can be used in either the CAB-27U or CAB-27U1M. It is used to mount shelves, switches or other rack-mountable items/devices.

The rail is marked at every U-height in ascending order of U-height from both the bottom and top, so it can be used on either side of the cabinet and still have the correct marking in the correct place on the rail.

SKU CAB-MR27
Manufacturer Linkbasic
Manufacturer Product Code NCB-ZJ27-60-YD

Specifications

Colour: Grey
Material: Cold-rolled steel

Linkbasic’s CAB-9US is a 9U Swing Frame wall box, manufactured from mild steel and powder coated with a glass front door. The Swing frame assembly allows easy access to the back of the cabinet with a 90-degree rotation from right to left.

*Note: Our wall boxes are supplied flat-packed.
SKU CAB-9US
Manufacturer Linkbasic
Manufacturer Product Code WCC09-655-BAA-C

Specifications

Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Swing Frame Wall-Mount
Shelves: Not Included
Size: 9U 550mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 505 x 600 x 550mm (H x W x D)
Weight: 28.20kg
Volumetric Weight: 26.20kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-9UB is a pre-assembled, powder-coated wall box manufactured from mild steel with a clear glass front door. This Linkbasic 9UB wall box is the ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Supplied fully assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.
SKU CAB-9UB
Manufacturer Linkbasic
Manufacturer Product Code WCE09-645-BAA

Specifications

Assembly: Supplied Assembled
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 9U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 500 x 600 x 450 mm (H x W x D)
Weight: 17kg
Volumetric Weight: 39.60kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-9U is a 9U wall box manufactured from mild steel, and is powder coated with a glass front door.

The CAB-9U is an ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Once assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.

*Note: Our wallboxes are supplied flat-packed.

SKU CAB-9U
Manufacturer Linkbasic
Manufacturer Product Code WCB09-645-BAA-C

Specifications

Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 9U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 500 x 600 x 450mm (H x W x D)
Weight: 24.10kg
Volumetric Weight: 15.60kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

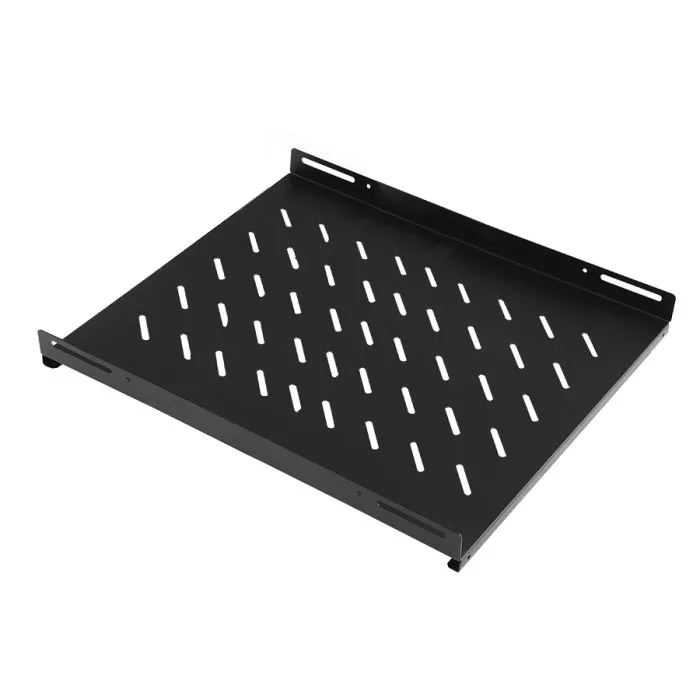

Linkbasic’s CAB-T700 is a 700mm, 1U, 19" Rear supported Tray which is compatible with our Linkbasic 27U 1M and 42U 1M deep cabinets.

SKU CAB-T700
Manufacturer Linkbasic
Manufacturer Product Code CFB100-1.2-A

Specifications

Cabinet Compatibility: CAB-27U1M & CAB-42U1M
Material: SPCC cold-rolled steel; 1.2mm thickness
Weight Capacity: 50kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-6URW is a 6U wall-mount open rack with a maximum mounting depth of 350mm. It features a 2-post design and a maximum weight capacity of 20kg.

SKU CAB-6URW
Manufacturer Linkbasic
Manufacturer Product Code WMB06-535-A

Specifications

Assembly: Supplied Assembled
Fans: None
Material: Cold Rolled Steel; Powder Coated
Mounting: Wall Mount
Tray Compatibility: CAB-T300
Dimensions: 272 x 498 x 350 mm (H x W x D)

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic’s CAB-6US is a 6U Swing Frame wall box, manufactured from mild steel and powder coated with a glass front door. The Swing frame assembly allows easy access to the back of the cabinet with a 90-degree rotation from right to left.

*Note: Our wall boxes are supplied flat-packed.
SKU CAB-6US
Manufacturer Linkbasic
Manufacturer Product Code WCC06-655-BAA-C

Specifications

Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Swing Frame Wall-Mount
Shelves: Not Included
Size: 6U 550mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 370 x 600 x 550mm (H x W x D)
Weight: 23.40kg
Volumetric Weight: 26.20kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-6UB is a 6U wall box manufactured from mild steel and is powder coated with a clear, glass front door.

The CAB-6UB is an ideal, cost-effective solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite.

*Note: Supplied assembled.
SKU CAB-6UB
Manufacturer Linkbasic
Manufacturer Product Code WCE06-645-BAA

Specifications

Assembly: Supplied Assembled
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 6U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 367 x 600 x 450mm (H x W x D)
Weight: 16kg
Volumetric Weight: 30.90kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-6U is a 6U wall box manufactured from mild steel and is powder coated with a glass front door.

The CAB-6U is an ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Once assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.

*Note: Our wall boxes are supplied flat-packed.
SKU CAB-6U
Manufacturer Linkbasic
Manufacturer Product Code CB06-645-BAA-C

Specifications

Assembly: Supplied Flat Packed
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 6U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 367 x 600 x 450mm (H x W x D)
Weight: 20.50kg
Volumetric Weight: 15.60kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

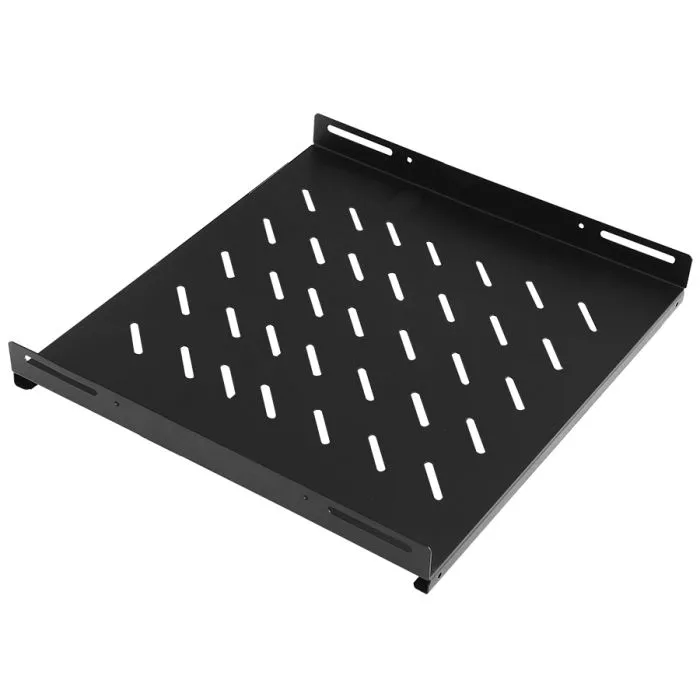

Linkbasic’s CAB-T550 is a 550mm, 1U, 19" Rear supported Tray which is compatible with our Linkbasic 27U 800mm and 42U 800mm deep cabinets.

SKU CAB-T550
Manufacturer Linkbasic
Manufacturer Product Code CFB80-1.2-A

Specifications

Cabinet Compatibility: CAB-27U; CAB-42U; CAB-25UO; CAB-42UO
Material: Cool-rolled Steel
Weight Capacity: 50kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-4URW is a 4U wall-mount open rack with a maximum mounting depth of 350mm. It features a 2-post design and a maximum weight capacity of 20kg.

SKU CAB-4URW
Manufacturer Linkbasic
Manufacturer Product Code WMB04-535-A

Specifications

Assembly: Supplied Assembled
Fans: None
Material: Cold Rolled Steel; Powder Coated
Mounting: Wall Mount
Tray Compatibility: CAB-T300
Dimensions: 183 x 498 x 350 mm (H x W x D)

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-4U is a 4U wall box manufactured from mild steel and is powder coated with a glass front door.

The CAB-4U is the ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite.

*Note: Supplied assembled.

SKU CAB-4U
Manufacturer Linkbasic
Manufacturer Product Code WCE04-645-BAA

Specifications

Assembly: Supplied Assembled
Fans: Not Included
Material: Cold Rolled Steel; Powder Coated
Mounting: Fixed Wall-Mount
Shelves: Not Included
Size: 4U 450mm Deep
Tray Compatibility: CAB-T300; CAB-T275
Weight Capacity: 60kg
Dimensions: 280 x 600 x 450mm (H x W x D)
Weight: 12.4kg
Volumetric Weight: 23.10kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-42U is a 42U free standing server cabinet manufactured with high strength steel and has 3 shelves and 4 fans.

*Note: All our free-standing server cabinets are supplied flat-packed.

SKU CAB-42U
Manufacturer Linkbasic
Manufacturer Product Code NCB42-68-BAA-C

Specifications

Assembly: Supplied Flat Packed
Fans: 4 Fans (Included)
Material: Cold Rolled Steel; Powder Coated
Mounting: Free Standing (Castors & Feet Included)
Shelves: 3 Flat Shelves (Included)
Size: 42U 800mm Deep
Tray Compatibility: CAB-T300; CAB-T550
Weight Capacity: 800kg
Dimensions: 2000 x 600 x 800mm (H x W x D)
Weight: 120.30kg
Volumetric Weight: 93.50kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-42U1P is a 42U, 1M deep, free-standing server cabinet manufactured with high-strength steel, with 3 shelves, 4 fans and perforated steel doors.

*Note: All our free-standing server cabinets are supplied flat-packed. PDU is sold separately.

KU CAB-42U1P
Manufacturer Linkbasic
Manufacturer Product Code NCB42-610-IFA-C

Specifications

Assembly: Supplied Flat Packed
Fans: 4 Fans (Included)
Material: Cold Rolled Steel; Powder Coated
Mounting: Free Standing (Castors & Feet Included)
Shelves: 3 Flat Shelves (Included)
Size: 42U 1000m Deep
Tray Compatibility: CAB-T300; CAB-T700
Weight Capacity: 800kg
Dimensions: 2000 x 600 x 1000mm (H x W x D)
Weight: 133.3kg
Volumetric Weight: 104.40kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Linkbasic's CAB-42U1M is a 42U, 1M deep, free-standing server cabinet manufactured with high strength steel and has 3 shelves and 4 fans.

*Note: Our free-standing server cabinets are supplied flat-packed.

SKU CAB-42U1M
Manufacturer Linkbasic
Manufacturer Product Code NCB42-610-BAA-C

Specifications

Assembly: Supplied Flat Packed
Fans: 4 Fans (Included)
Material: Cold Rolled Steel; Powder Coated
Mounting: Free Standing (Castors & Feet Included)
Shelves: 3 Flat Shelves (Included)
Size: 42U 1000mm Deep
Tray Compatibility: CAB-T300; CAB-T700
Weight Capacity: 800kg
Dimensions: 2000 x 600 x 1000mm (H x W x D)
Weight: 133.3kg
Volumetric Weight: 104.40kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

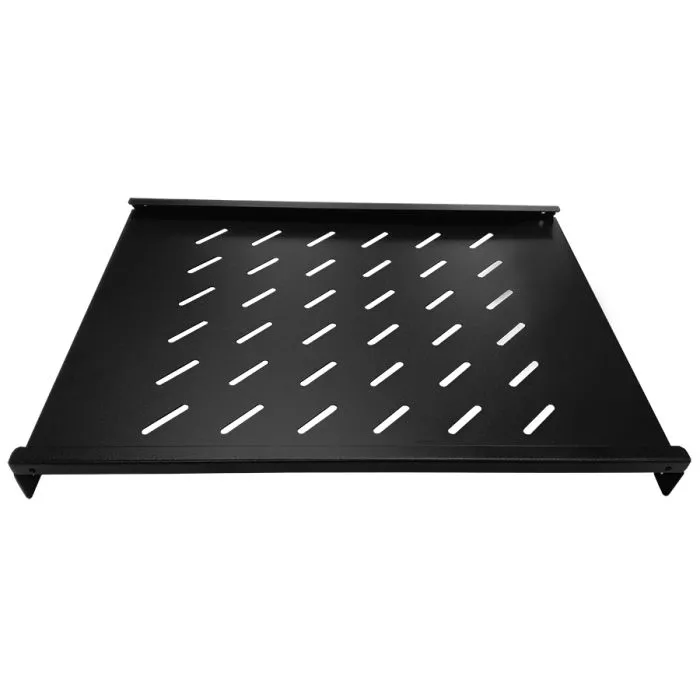

Linkbasic's CAB-T350 is a 350mm, 1U 19" Rear Supported Tray which is compatible with our Linkbasic 22U free standing cabinets.

SKU CAB-T350
Manufacturer Linkbasic
Manufacturer Product Code CFB60-1.2-A

Specifications

Cabinet Compatibility: CAB-15U6, CAB-18U6, CAB-22R & CAB-22U6; Outdoor Cabinets*
Material: Cool Rolled Steel
Weight Capacity: 50kg
* Requires upright adjustment

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

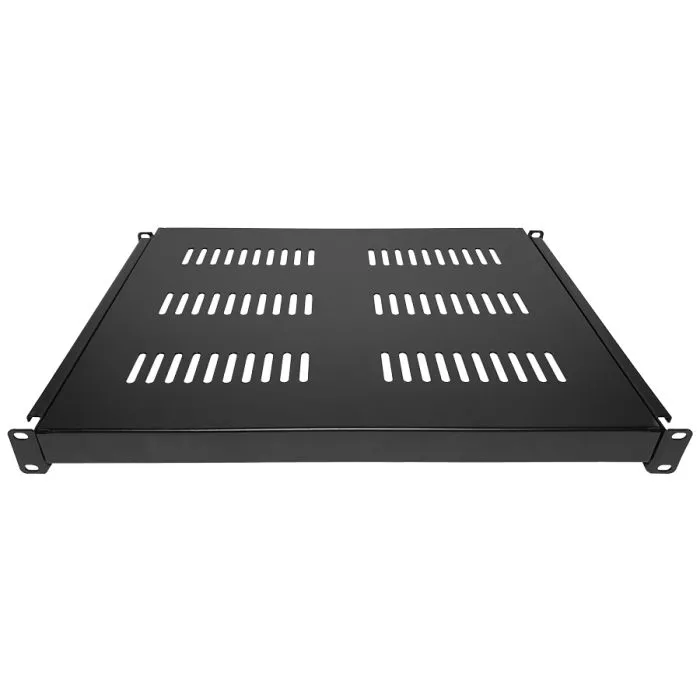

Linkbasic's CAB-T350S is a 350mm, 1U 19" Rear Supported Sliding Tray which is compatible with our Linkbasic 600mm free standing cabinets.

SKU CAB-T350S
Manufacturer Linkbasic
Manufacturer Product Code CFD60-A

Specifications

Cabinet Compatibility: CAB-22UR & CAB-22U6; CAB-18U6; Outdoor Cabinets*
Material: Cold Rolled Steel
Weight Capacity: 20kg
* Requires upright adjustment

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."
