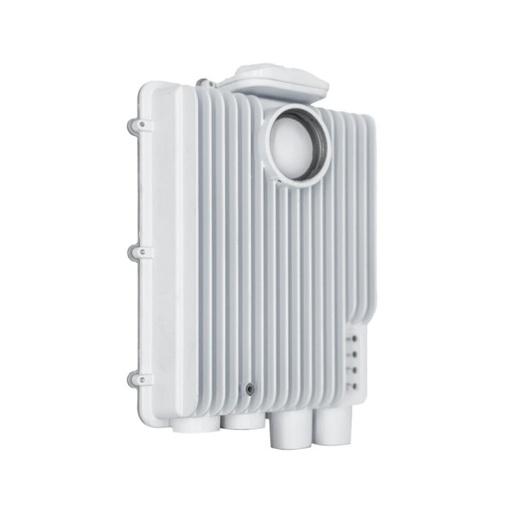

Product Overview

Experience ultra-fast, reliable wireless backhaul with the Mimosa B6x, designed for demanding broadband providers, enterprises, and public safety networks. This cutting-edge point-to-point (PTP) radio delivers blazing speeds up to 3.0 Gbps using Wi-Fi 6E OFDMA technology, supporting an extended frequency range of 5.15 to 6.425 GHz. Built tough with an IP67-rated weatherproof enclosure, the B6x ensures consistent performance even in the harshest outdoor environments.
Key Features

Extreme Speed: Up to 3.0 Gbps IP throughput for high-capacity, ultra-low latency wireless links.

Wi-Fi 6E OFDMA Technology: Boosts network efficiency, reduces interference, and supports next-gen wireless performance.

Extended Frequency Range: Operates across 5.15–6.425 GHz spectrum for flexible deployment in various regions.

Modular Antenna Compatibility: Works with Mimosa’s N5-X twist-on antennas (8, 12, 16, 20, 25, or 30 dBi) to customize your range and gain.

GPS Synchronization: Enables tight timing for dense network deployments, reducing interference and improving scalability.

Rugged IP67 Enclosure: Weatherproof and dust-tight for reliable outdoor operation in rain, dust, and extreme conditions.

Easy Monitoring & Planning: Integrated with Mimosa Management Platform and Design Tool for simple link health monitoring and deployment planning.

Technical Specifications
Specification Details
Frequency Range 5.15 GHz – 6.425 GHz
Maximum Throughput Up to 3.0 Gbps (IP)
Modulation Wi-Fi 6E OFDMA
Antenna Options Supports N5-X Modular Antennas (8–30 dBi)
Enclosure Rating IP67 (Waterproof & Dustproof)
GPS Sync Supported
Management Platform Mimosa Cloud & On-Premises
Latency Ultra-low latency
Package Contents

Mimosa B6x Radio Unit

Mounting Hardware

Power & Data Cables (depending on package)

Quick Start Guide

Why Buy From QuickStore.co.za?

✔ Genuine Mimosa products with local warranty
✔ Expert advice and installation support
✔ Fast delivery across South Africa

MikroTik's RB-LHGHP5XL4 offers 4x RB-LHGHP5XL units in a single package. The RB-LHGHP5XL is an extra-large, high power, 5GHz CPE with an integrated 27dBi antenna, 1x Fast Ethernet Port and up to 300Mbps data rate.

SKU RB-LHGHP5XL4
Manufacturer MikroTik
Manufacturer Product Code RBLHG-5HPnD-XL4pack

Specifications

Antenna Gain: 27dBi
Beam-width: 6.4°
Data Rate: 5.8GHz: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to 70°C
PoE Input: 10-30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-30V
USB Ports: None
Dimensions: Ø 550 x 245 mm

MikroTik's RB-LHG60KIT is an outdoor, high-speed pre-paired 60GHz kit enabling you to establish a cost-effective, secure (AES Encrypted), Point-to-Point link in the clean 60GHz wireless spectrum at a distance of up to 1.5km. It is equipped with a Gigabit Ethernet port for high-speed connections and shipped with an LHG mount and Aim tool for precision alignment.

SKU RB-LHG60KIT
Manufacturer MikroTik
Manufacturer Product Code RBLHGG-60adkit

Specifications

Antenna Gain: Maximum of 42dBi
Beam-width: 3°
Data Rate: 60GHz: 1Gbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-57V
USB Ports: None
Dimensions: Ø 391 x 222mm

MikroTik's RB-FLEX cable offers superior connection quality, is suited for indoor and outdoor use, and provides superior matching and loss values.

The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high-end features of this product. The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality.

Ideally suited for MikroTik's Base Box and other products with RPSMA connectors and works with most antennas. Compatible with ANT-D530PA, a 5GHz, 30dBi dish antenna, also by MikroTik Router BOARD

SKU RB-FLEX
Manufacturer MikroTik
Manufacturer Product Code ACRPSMA
Specifications N/A

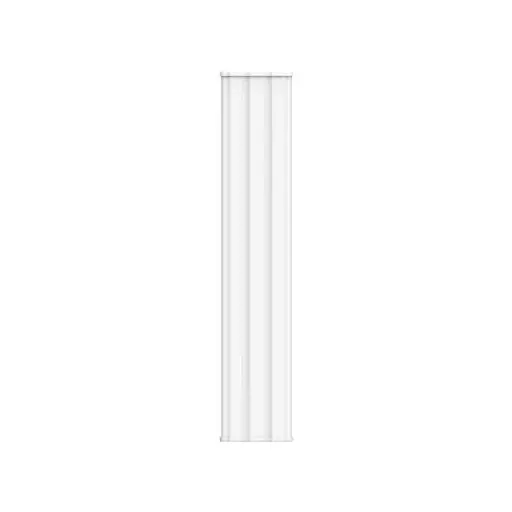

Reyee's RG-S520 Air Metro Series sector features an IP55 housing with an integrated 5GHz 20dBi 90° sector antenna. This sector also features 2x RP SMA connectors to easily connect to the RG-AM-550GB base station for distances up to 10km when connecting up to 32 Air Metro Client Radios.

Specifications

Antenna Gain: 20dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Frequency Range: 5.15GHz – 5.85GHz
Polarization: Vertical & Horizontal
Dimensions: 694 x 140 x 49 mm
Weight: 4.5kg

Reyee's RG-EST450G is a Dual Band, WiFi 5 sector antenna featuring a 15dBi antenna, 3x Gigabit Ethernet Ports, a maximum throughput of up to 1017Mbps over its 5GHZ (2x2 MIMO) radio and a 5km range when paired with the RG-EST350G and a 3km range when paired with the RG-EST330FP. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5GHz: 15dBi
Beam-width: 120°
Data Rate: 2.4GHz: 150Mbps; 5GHz: 867Mbps
Ethernet Ports: 3x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 65°C
PoE Input: 24V Passive PoE or 802.3af/at
PoE Output: None
Power Input: 12V DC; 24V Passive PoE or 802.3af/at
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1.2A; 24V/ 0.6A
USB Ports: None
Dimensions: 355 x 124 x 48 mm
Weight: 830g

Reyee's RG-EST350G is a 5GHz, WiFi 5 CPE featuring a 16dBi antenna, 3x Gigabit Ethernet Ports, a maximum throughput of up to 867Mbps over its 5GHz (2x2 MIMO) radio and a 5km coverage range when used in a Point-to-Point or Point-to-MultiPoint installation with the RG-EST450G. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5GHz: 16dBi
Beam-width: 30°
Data Rate: 2.4GHz: 150Mbps (Management Radio) ; 5GHz: 867Mbps
Ethernet Ports: 3x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 65°C
PoE Input: 24v Passive PoE or 802.3af/at
PoE Output: None
Power Input: 24V Passive PoE, 802.3af/at or 12V DC (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1.2A; 24V/ 0.6A
USB Ports: None
Dimensions: 240 x 133 x 108 mm
Weight: 730g

Reyee's RG-EST330FP is a 5GHz WiFi 5 CPE featuring a 13dBi antenna, 3x Fast Ethernet Ports, 2x PoE Output, a maximum throughput of up to 867Mbps over its 5GHz (2x2 MIMO) radio and a 3km coverage range when used in a Point-to-Point or Point-to-MultiPoint installation with the RG-EST450G. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5GHz: 13dBi
Beam-width: 30°
Data Rate: 2.4GHz: 150Mbps (Mangement Radio); 5GHz: 867Mbps
Ethernet Ports: 3x 10/100
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE or 802.3af/at
PoE Output: 2x 802.3af PoE (Depending on Power Input)
Power Input: 24V Passive PoE, 802.3af/at, or 12V DC (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1A; 24V/ 1.5A
USB Ports: None
Dimensions: 199 x 102 x 54 mm
Weight: 370g

Reyee's RG-AM-550GB WiFi 5 AirMetro Base Station features an IP55 enclosure rating, 2x Gigabit Ethernet Ports, 2x RP SMA connectors for antenna pairing and can support up to 32 clients. Pair with the RG-S520 for distances of up to 10km when connecting to the AirMetro client radios.

It also supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole-Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE or 12V DC
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 12VDC
USB Ports: None
Dimensions: 200 x 99 x 29 mm
Weight: 680g

Reyee's RG-AM-460G WiFi 5 AirMetro Radio features an IP65 enclosure with an integrated 5GHz 867Mbps radio, 23dBi antenna, 1x Gigabit Ethernet Port and is powered by 24V Passive PoE. In PtP mode, the device can connect at a maximum distance of 15km and in PtMP mode up to 10km when paired with the RG-S520 Sector Antenna and the RG-AM-550GB base station.

It also supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 5GHz: 23dBi
Beam-width: 9°
Data Rate: 5GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole Mount
Operating System: Reyee
Operating Temperature: -40°C ~ 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 368.5 x 271 mm

Reyee's RG-AM-460F WiFi 5 AirMetro Radio features an IP65 enclosure with an integrated 5GHz 867Mbps radio, 23dBi antenna, 1x Fast Ethernet Port and is powered by 24V Passive PoE. In PtP mode, the device can connect at a maximum distance of 15Km and in PtMP mode up to 10km when paired with the RG-S520 Sector Antenna and the RG-AM-550GB base station.

It also supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 5GHz: 23dBi
Beam-width: 9°
Data Rate: 5GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole Mount
Operating System: Reyee
Operating Temperature: -40°C ~ 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 368.5 x 271 mm

Ubiquiti's WAVE-MLO5 is a high-performance dual 5GHz, Wi-Fi 7-based Point-to-Point radio with Multi-Link Operation (MLO) technology for enhanced throughput. It features an outdoor IPX6 rating, 1x 10Gbps Ethernet port, 1x 10Gbps SFP+ port and is powered by the included 10Gbps PoE Injector. It offers an aggregate data rate of up to 5Gbps on its dual 5GHz (2x2 MU-MIMO) radios. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: 5Gbps
Ethernet Ports: 1x 10/100/1000/10000
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Pole-Mount
Operating System: UISP
Operating Temperature: -40°C to 60°C
PoE Input: 22-27V (4-pairs) or 44-54V Passive PoE
PoE Output: None
Power Input: 54V 0.56A, 10Gbps PoE Adapter (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 44-54V or 22–27V
USB Ports: None
Other: 1x RP SMA GPS Connector, 1x 10G SFP+
Dimensions: 249.3 x 82 x 47.6 mm
Weight: 575g

Ubiquiti's UACC-UKPA is an IPx6, clip-on external antenna for the Swiss Army Knife (UK-ULTRA) that provides extended 90-degree directional coverage.

Specifications
Antenna Gain: 2.4GHz: 10dBi ; 5.8GHz: 15dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Wind Loading: 75 N at 200 km/h
Dimensions: 138 x 207 x 43 mm
Weight: 450g

Ubiquiti's AIR-S516 is a 5GHz 16dBi, 120° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

Specifications

Antenna Gain: 16dBi
Beam-width: 120°
Connector: 2x RP SMA Female
Frequency Range: 5.10GHz – 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 41.7N @ 200km/h

Dimensions: 367 x 63 x 4mm
Weight: 1.1kg

Ubiquiti's UACC-UKPA is an IPx6, clip-on external antenna for the Swiss Army Knife (UK-ULTRA) that provides extended 90-degree directional coverage.
SKU UACC-UKPA
Manufacturer Ubiquiti
Manufacturer Product Code UACC-UK-Ultra-Panel-Antenna

Specifications

Antenna Gain: 2.4GHz: 10dBi ; 5.8GHz: 15dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Wind Loading: 75 N at 200 km/h
Dimensions: 138 x 207 x 43 mm
Weight: 450g

Ubiquiti’s R5AC-PRISMG2 is an airMAX ac 5GHz radio featuring airPrism technology. The airPrism significantly reduces adjacent channel interference and is designed to work with Ubiquiti’s wide range of antennas. It can be used as PtMP (point-to-multipoint) access point in high interference environments or for high-performance, long-range PtP (point-to-point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.
Specifications
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-26V
USB Ports: None
Dimensions: 88 x 40 x 230mm
Weight: 400g

Ubiquiti's R2AC-PRISMG2 airMAX ac 2GHz radio without antennae. Featuring airPrism technology which significantly reduces adjacent channel interference and is designed to work with Ubiquiti's wide range of antennas (sold separately). It can be used as PtMP (point to multipoint) access point in high interference environments or for high-performance, long-range PtP (point to point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.
Specifications
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-26V
USB Ports: None
Dimensions: 88 x 40 x 230mm
Weight: 440g

Ubiquiti's ROCKETAC-LITE airMAX ac 5GHz radio is designed to work with Ubiquiti's wide range of antennas (sold separately). It can be used as PtMP (point to multipoint) access point in low-moderate interference environments and for high-performance, long-range PtP (point to point) links. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: Antenna not included.
Specifications
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 80°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-26V
USB Ports: None
Dimensions: 162 x 84 x 37mm
Weight: 250g

Ubiquiti's PBE-525 is an airMAX M series 5GHz radio with 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.
Specifications
Antenna Gain: 25dBi
Beam-width:12°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 420 x 420 x 275mm
Weight: 1.753kg

Ubiquiti's PBE-522 is an airMAX M series 5GHz radio with 22dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.
Specifications
Antenna Gain: 22dBi
Beam-width: 18°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 325 x 325 x 256mm
Weight: 1.203kg
