UltraLAN Kevlar Scissors for Fiber Optic Cabling

Made of 3CR13 steel and designed to cut Kevlar and Fiber Optic materials. Features excellent corrosion and wear resistance. Hollow ground blades with micro-serration for true "grip & cut" performance.
Features:
Lightweight scissors ideal for cutting Kevlar strength members found in fiber optic cable construction.
Ergonomic molded handles provide comfort for both right and left handed users.
micro-serrated blade reduces slippage for better cutting action.

LC Connector Adapter for Fiber Power Meters

This adapter can be used to replace the SC or FC socket that are standard on various fiber power meters. Once this adapter has been attached to the fiber power meter, a fiber cable with an LC connector can then be inserted into this adapter in order to test the cable.

Compatible with the following power meters:

UltraLAN Fiber Power Meter (FIB-T-PM)
UltraLAN Fiber Power Meter with VFL (FIB-T-PMVFL10MW)
UltraLAN Fiber Power Meter with VFL (FIB-T-PM+VFL)

Linkbasic's UTP Ratchet Crimp tool is used for crimping UTP RJ45 connectors. This rugged, heavy-duty tool is used to crimp, strip and cut UTP or Modular Cable.

The parallel action design maintains accurate alignment of the die with the plug for a precision crimp every time.
SKU TOOL-CRIMP
Manufacturer Linkbasic
Manufacturer Product Code TLC11
Specifications
Compatibility: RJ45 & RJ11
Functions: Crimper & Stripper
Material: Carbon Steel

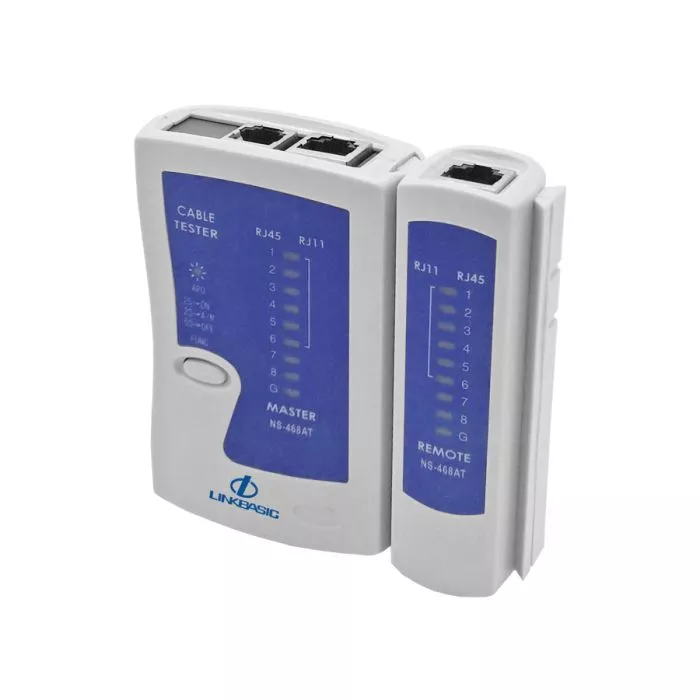

Linkbasic's UTP Cable Tester allows you to inspect/test network cable, LAN RJ45 and RJ11.

It is designed for testing the UTP and screens for the opens, shorts, reversals, mis-wiring and so on. The relative indicators on the main tester and the remote testing terminal will flash one by one in cycle to judge which wire is in the correct working connection, or in the incorrect order connection.

SKU TOOL-TEST
Manufacturer Linkbasic
Manufacturer Product Code CSA01

Specifications

Compatibility: RJ45 & RJ11
Functions: Cable Tester

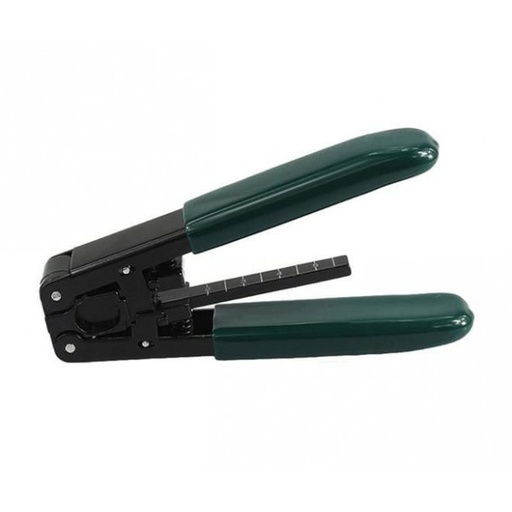

UltraLAN Fiber Drop Cable Stripper

The fiber drop cable stripper is designed for stripping flat fiber drop cable used in Fiber to the Home (FTTH) applications. The tool removes the jacket in two locations to expose the dielectric strength members and allowing quick removal of the fiber cable jacket.

Product Features:

Universal stripper designed for stripping Flat Drop Fiber Cable used in “Fiber to the Home” applications
One step stripping action that removes the jacket in two locations to expose the dielectric strength members and allowing the quick removal of the jacket
Tool is small and has a lightweight body for ease of use
Easily strips fiber drop cable in 3.1*2.0mm
Also suitable for 2.0mm, 3.0mm indoor fiber optic cable
Blade depth adjustable for protecting the fiber.
2 straight blades in across and 1 round blade in lengthwise

UltraLAN 5-in-1 Fiber Tester & Tracker

The UltraLAN all-in-one Optical Fiber Cable Tester is an essential tool for cable installers, fiber technicians or anyone working in networking environments. The tool features a combination of a fiber power meter, visual fault locator, cable tester, and cable tracker all built into one device. This allows you to test fiber optic cables for breaks, insertion loss and optical power loss, locate network cable and test its physical conditions.

The power meter supports 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. With the compact adaptor, it can be used to test RJ45 Cable's continuity, but also track cable among unknown bundles of wires (line hunt). The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.

UltraLAN Fiber Optic Fusion Splicer - Model FIB-T-FS2

The UltraLAN Fiber Optic Fusion Splicer Model FIB-T-FS2 is a cutting-edge tool designed to deliver unmatched precision and efficiency in fiber optic cable splicing. Whether you're working on a complex network installation or a routine maintenance task, this advanced splicer offers a comprehensive suite of features to enhance your workflow.

Rapid Heating Technology

One of the standout features of the FIB-T-FS2 is its rapid heating capability. With a fusion time of just 8 seconds and an 18-second heating cycle, you can achieve optimal fusion quickly and efficiently. The splicer supports both automatic and manual heating modes, allowing you to choose from six preset heat shrink tubes or customize the temperature settings to meet your specific needs.

High-Resolution Flip-Up Screen

The splicer is equipped with a 180° flip-up LCD touch screen, which provides high-resolution visuals and an intuitive user interface. This design not only enhances visibility but also simplifies operation, making it easy to navigate the graphical user interface (GUI) and perform tasks smoothly.

Advanced Motor System

Featuring a sophisticated six-motor drive system, the FIB-T-FS2 offers superior precision and reduced positioning errors compared to traditional four-motor systems. The precise micro-step guides ensure minimal dissolution loss and faster, more efficient splicing, ultimately improving your overall work efficiency.

Built-In Testing Tools

The FIB-T-FS2 integrates essential testing tools, including a built-in red light source (VFL) and an optical power meter (OPM). These tools support six wavelengths and feature self-calibration for accurate optical power measurements. With large capacity storage, you can save tens of thousands of data records, ensuring that all your critical information is securely stored.

Extended Battery Life

The splicer is designed with a robust 5200mAh battery that supports extended operational periods. The convenient pop-up battery compartment allows for easy single battery charging. Additionally, the device features automatic shutdown and power-saving modes to extend battery life even further.

Versatile Splicing Capabilities

The FIB-T-FS2 includes a three-in-one universal clamp that accommodates patch cords, bare fibers, and leather cables. This versatile clamp ensures stable and secure fixation, facilitating fully automatic and efficient fiber splicing. The inclusion of LED lighting helps you work in low-light conditions, and the status and heating indicator lights keep you informed of the splicer's operation.

User-Friendly Features

Designed with user convenience in mind, the splicer’s intelligent GUI interface provides a clear and concise display. The system includes intelligent fault detection and prompt notifications to help you address issues quickly. The device also supports external charging, USB upgrades, and fusion splice data export, ensuring you can keep your equipment updated and your data accessible.

Comprehensive Accessory Package

The UltraLAN FIB-T-FS2 comes with a dedicated toolbox and a fiber optic cleaver, providing everything you need for efficient splicing operations.

UltraLAN 24 Fiber Splice Tray


The UltraLAN fiber splice tray is designed to provide a place to store fiber cables and splices and prevent them from becoming damaged or being misplaced. These trays are commonly used individually/stand-alone, inside of fiber patch panels, or in large termination boxes.

The fiber splice tray has 4 access ports for fiber cable to either enter/exit the tray, allowing for cables to be easily fed into the tray from various angles. The tray is made from high strength injection mold plastic, is flame retardant, and offers a long anti-aging lifespan.


The UltraLAN fiber splice tray features 12 splice holder slots, but can also support a max of 24 splices when two sleeves are placed inside each slot. The cover and base section is securely joined with a metal pin, and the trays are stackable as well. The inner splice tray offers further cable management, with a fiber bend radius over 30mm.

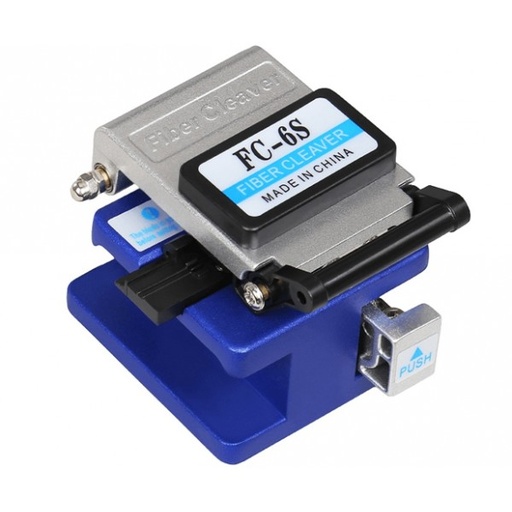

UltraLAN High Precision Fiber Optic Cleaver

The ultimate tool for single and ribbon cleaving. Built on a robust high-quality platform, the UltraLAN fiber cleaver is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. By using a rotating blade for multiple scoring positions enables a typical blade life of 36000 cleaves or more, with a cleave angle better than 0.5 degrees.

The UltraLAN fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

Product Features:
Used for Mass or Single Fiber Cleaving
Utilizes an Automatic Anvil Drop for easy of use and provides better cleave consistency
Prevents Double Scoring of the Fibers.
Has Superior Blade Height and Rotational Adjustment.
Can Be Operated With Minimal Steps

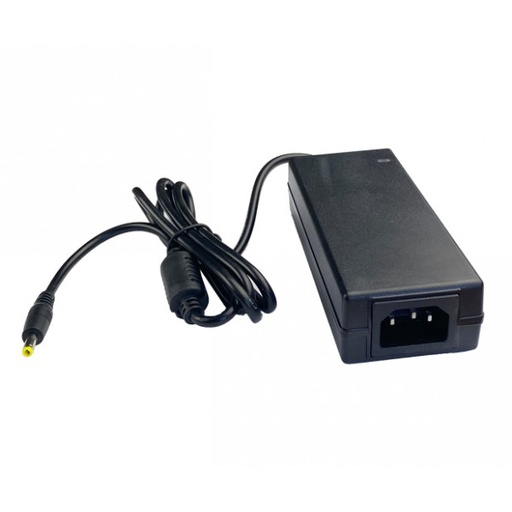

UltraLAN Fusion Splicer Power Supply

Keep your UltraLAN Fusion Splicer operational with our reliable power supply. Whether you need a spare or a replacement, this power supply ensures your equipment stays powered up and ready for any task. Designed specifically for the UltraLAN Fusion Splicer, it offers seamless compatibility to keep your splice machine charged.

Features:
Input: AC 100-240V, 50/60Hz, 1.4A Max
Output: DC 13.6V, 5A

Please Note:
The power supply is sold without a power cord. A compatible power cord can be purchased separately

UltraLAN Fiber Power Meter with 10mw VFL

The UltraLAN Fiber Power Meter and Visual Fault Locator (VFL) is a handheld optical power meter, which also conveniently includes a built-in laser based Visual Fault Locator. The ergonomically designed instrument uses advanced technology for outstanding functionality and durability.

The power meter uses microprocessor control and includes a variety of advanced features and user selectable settings. It is used for optical signal power measurement at a variety of wavelengths from 800-1700nm. The Visual Fault Locator can be used to inspect optical fiber cables and connectors for potential failures and issues when connected to an optical interface and/or with a single mode or multi-mode optical fiber.

It is an indispensable tool in fiber project installations, construction, fiber network maintenance, for testing fusion or field-installed connectorized cables, optical component manufacture and research, etc.

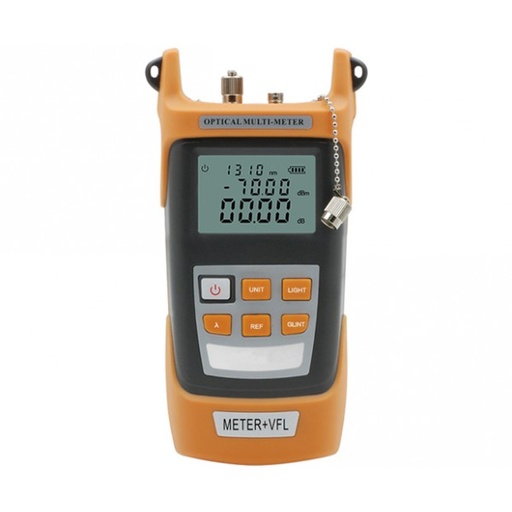

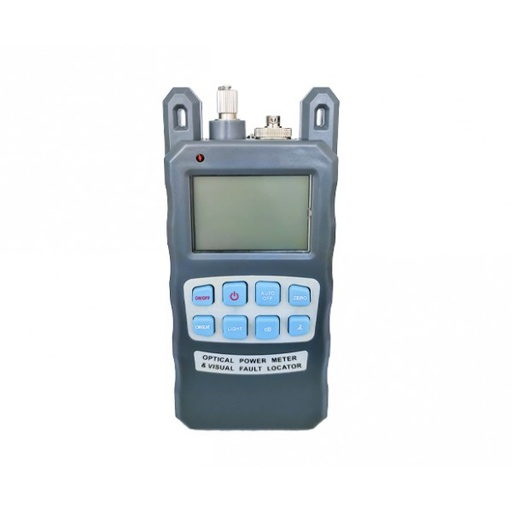

UltraLAN Fiber Power Meter with VFL


The UltraLAN optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for optical fiber winding or breakage fault finding. The power meter features a wide range of laser frequencies, making it a great tool for testing any fiber network. The highly accurate power meter is invaluable when implementing PON networks to insure devices such as ONT/ONU's are receiving the correct power levels within the specified limit for a PON fiber setup.


Main Features:

Measurement of the power of optical sender (dBm and W).
Insertion loss test of optical devices.
Check fiber breakage, winding, etc. with the Visual Fault Locator
FC, SC, ST, LC switchable (FC is included originally)
6 Wavelength: 850 / 1300 / 1310 / 1490 / 1550 / 1625nm (power meter)
Wavelength: 650nm ( visual fault locator)
Specifications:
Power detecting range(dBm) -70~+3
Probe InGaAs
Detection limit ∮1.0mm
Standard wavelength 850,980,1300, 1310, 1490, 1550, 1625nm
Display resolution 0.01dBm
Emitting Energy 15km
Standard wavelength (VFL) 650±10nm
Working temp -20 ~ +70℃
Power supply AA*3pcs

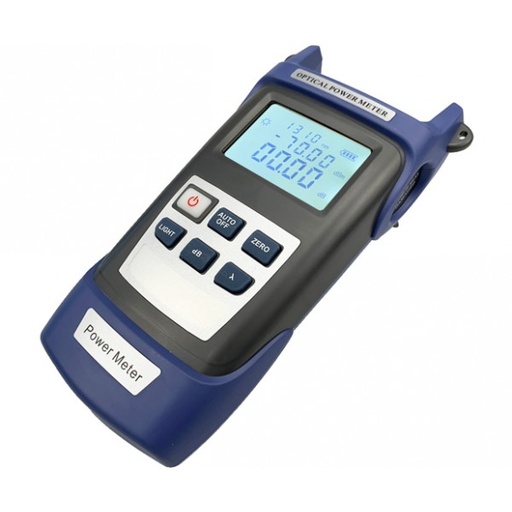

UltraLAN Fiber Power Meter

Power meters are a toolbox essential for all technicians installing or maintaining any type of fiber networks. The UltraLAN Fiber Power Meter is portable and easy to carry in the field. It features a large readout screen with LED back light.

The meter has a wide testing range and offers seven calibrated wavelengths - 850nm, 980nm,1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Measurements range from -70 - +10 dB.

Specifications:
Probe Type: InGaAs
Wavelength Range: 800~1700nm
Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dB
Working Temp(℃): -10~+60℃
Storage Temp(℃): -25~+70℃
Auto Switch-off Time: 10min

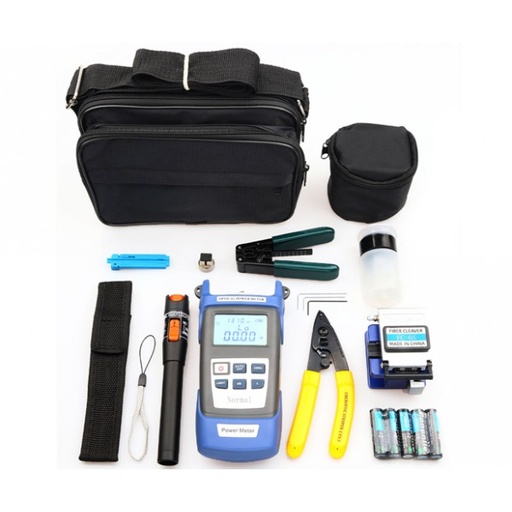

UltraLAN Fiber Optic Tool Kit

The UltraLAN Fiber Optic Tool Kit is a must-have essential for any fiber field technician or installer.
The tool kit comprises of the following items:

Fiber Power Meter

The UltraLAN Fiber Power Meter is portable and easy to carry in the field. It features a large readout screen with LED back light.
The meter has a wide testing range and offers seven calibrated wavelengths - 850nm, 980nm,1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Measurements range from -70 - +6 dB.

10mW Visual Fault Locator

The Visual Fault Locator can be used to inspect optical fiber cables and connectors for potential failures and issues when connected to an optical interface and/or with a single mode or multi-mode optical fiber.

Fiber Stripper

This rugged tool features a 1.0mm radiused blade and a 140µm V blade specifically designed for stripping jacket and buffer from 125 micron fiber. An ergonomically designed handle reduces user fatigue.

Fiber FTTx Drop Cable Stripper

The fiber drop cable stripper is designed for stripping flat fiber drop cable used in Fiber to the Home (FTTH) applications. The tool removes the jacket in two locations to expose the dielectric strength members and allowing quick removal of the fiber cable jacket.

Fiber Cleaver

The ultimate tool for single and ribbon cleaving. Built on a robust high-quality platform, the UltraLAN fiber cleaver is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. By using a rotating blade for multiple scoring positions enables a typical blade life of 36000 cleaves or more, with a cleave angle better than 0.5 degrees.

Easy to Carry Tool Bag

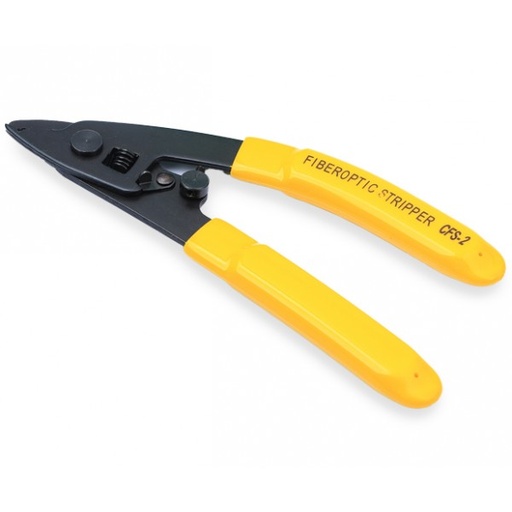

UltraLAN Fiber Optic Cable Stripper

This rugged tool features a 1.0mm radiused blade and a 140µm V blade specifically designed for stripping jacket and buffer from 125 micron fiber. An ergonomically designed handle reduces user fatigue. This tool is a must for every fiber installer.

Features:

Used to strip fiber optic cables
Ergonomic handle design reduces hand fatigue
Dual function, strips jacket and buffer at the same time
For use with 125 micron fiber cables

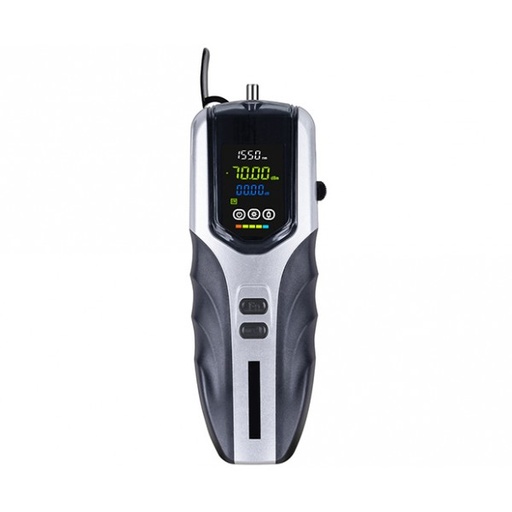

UltraLAN Fiber Mini Power Meter

Main Features:
LCD color screen for easy reading
Mini Optical power meter to measure fiber loss
With memory wavelength function
Able to identify working frequency
Supports user calibration
Support SC, FC, ST interface
Support linear (nW) and non-linear indicators (dB)
Lithium battery for power supply, or external power supply
Technical Parameters:
Wavelength range 800~1700
Probe type InGaAs
Measuring range -70~+3 , -50~+26 (optional)
Uncertainty ±5%
Standard wavelength (nm) 850/980/1300/1310/1490/1550/1625
Display resolution Linear display: 0.1%,
logarithmic display: 0.01dBm
Frequency identification(Hz) 0/270/1000/2000
Battery life(h) ≥20
Charging voltage(v) 5
Detection area 300um
Charging time(h) ≤3
Power supply Rechargeable lithium battery, external input

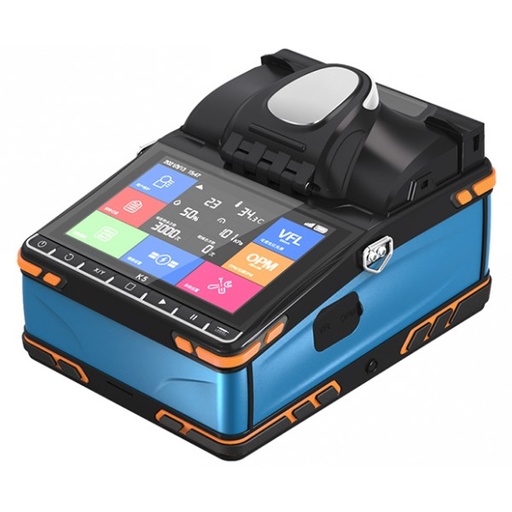

UltraLAN Fiber Fusion Splicer and Tool Kit

The high-precision fusion splicer, with high-speed image processing and special precision positioning technology, can complete the whole process of fiber fusion splicing automatically in 8 seconds. It features 6 motors for precision alignment, and auto-focus cameras with 300x core magnification. The 5.5inch touch screen provides easy access to all functions and settings.

Convenient and Portable

Light weight, easy to carry and convenient to operate, the fusion machine provides fast splicing speed and low loses. The machine and accessories comes packaged in an easy to carry tool case, making it easy to travel with.

Industrial Grade Chipset

The internal core uses an industrial-grade 64bit low-power processor, with powerful decoding capabilities, and rich interfaces, which will not crash or freeze in harsh environments.

Built-In VFL and OPM

The fusion splicer has both a red light source laser built in (for visual fault locating) as well as a Optical Power Meter to measure dBm levels, especially important for FTTH applications with GPON.

All-in-One Kit

This comprehensive package includes all of the items that you require to successfully splice and join fiber cables in the field. The tool kit includes the following:

Fiber fusion splicer (welding machine)
Rechargeable lithium battery
Power adapter/charger
Fiber cleaver
Miller clamp (to remove fiber sheath)
Fiber drop cable jacket remover
Bottle (for cleaning solution)
Spare pair of electrodes

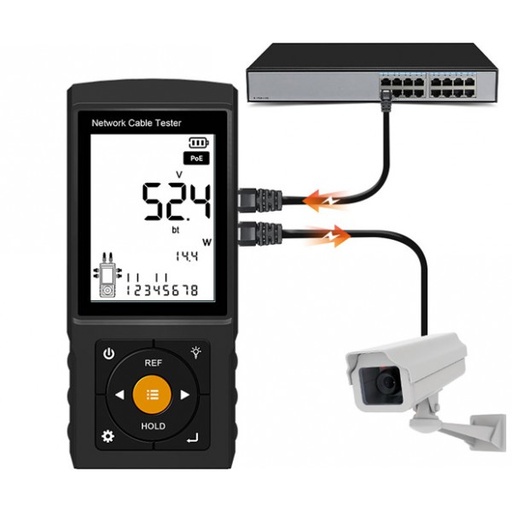

UltraLAN Multi-Function Fiber & Network Cable Tester

The UltraLAN FIB-T-MPCT-OPM-VFL is a powerful hybrid tester combining RJ45 cable diagnostics with fiber optic testing — making it the ultimate tool for both copper and fiber environments. In addition to standard network functions like cable tracing, pin sequence checks, length measurement (up to 600m), and PoE diagnostics, this unit also features an integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL). These built-in fiber tools enable quick and accurate identification of optical signal strength, fiber continuity, and break detection — all from one compact device. Ideal for technicians working across both wired and fiber infrastructure.

Support for PoE testing up to 90W (IEEE 802.3bt/at/af and non-standard) makes it perfect for CCTV, VoIP, and access control setups. Additional features include switch port flashing, cable tracing with adjustable sensitivity, NCV detection for live wires, and optional built-in modules for optical power measurement and visual fault location.

Key Features:

Tests RJ45 cable sequence, continuity, crimping quality, and pin faults
Cable length test up to 600m with ±3% accuracy
Real-time PoE testing (IEEE 802.3af/at/bt) up to 90W: Voltage, power, polarity
Switch/router port identification using port flash mode
Digital cable tracer with adjustable sensitivity and anti-interference design
NCV detection with live/neutral wire identification and audible alerts
Optical Power Meter (optional): -70 to +6 dBm, 850–1650nm wavelengths
Visual Fault Locator (optional): 10mW red laser, 650nm, range up to 10km
LED light and auto power-off features

Specifications:

General:

Display: 3" high-contrast LCD
Operating Temperature: -10°C to +50°C
Operating Humidity: 30%–90%
Power: 3x AA batteries (emitter), 2x AA batteries (receiver)

Network Cable Testing

Supported Cable Types: RJ45 (UTP/STP), RJ11, low-voltage metal cables
Cable Length Measurement: 1–600m (±3% ±1m accuracy)
Wiremap Test: Detects open, short, miswire, cross, and split pairs
Continuity Test: Pin-level fault detection and crimp verification
Port Flashing: Locates switch/router ports and identifies 100M/1000M link speed
PoE Testing: Supports IEEE802.3af/at/bt and non-standard PoE detection
Power supply pinout, polarity, real-time voltage & wattage (0–90W load)
Cable Tracer: Anti-interference digital signal tracing with adjustable sensitivity
NCV Function: Detects AC voltage in cables and power outlets

Fiber Testing:

Optical Power Meter (OPM):
Supported Wavelengths: 980, 1270, 1300, 1577, 1650nm
Measurement Range: -70 to +6 dBm
Features: Real-time optical power display, wavelength selection, REF mode for fiber loss comparison, and user calibration support
Visual Fault Locator (VFL):
Output Power: 10mW
Wavelength: 650nm red laser
Modes: Continuous and pulse (1Hz, 2Hz)
Detection Range: Up to 10km — ideal for locating fiber breaks, cracks, and bends

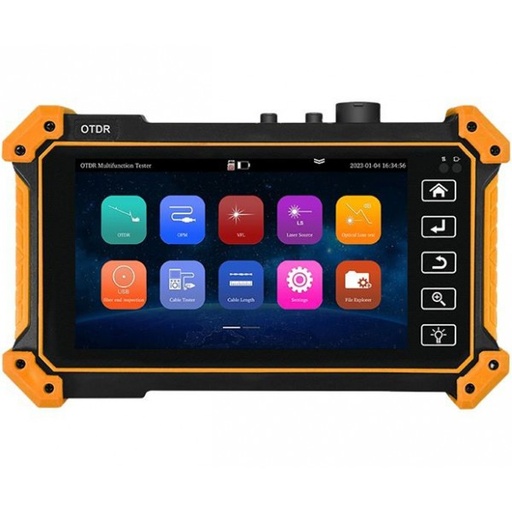

UltraLAN OTDR with VFL, OPM & Cable Tester

The UltraLAN FIB-T-OTDR1315 is a professional-grade, multifunctional OTDR (Optical Time Domain Reflectometer) tester designed for fiber network construction, diagnostics, and maintenance. Combining the capabilities of multiple tools into a compact 5.5-inch touchscreen unit, it streamlines fiber testing with high precision, user-friendly controls, and intelligent analysis.

With support for testing up to 100km, wavelengths of 1310/1550nm, and dynamic ranges of 26/24dB, the FIB-T-OTDR1315 delivers accurate insight into fiber link performance. Its core functions include OTDR testing, visual fault locating (VFL), optical power meter (OPM), loss testing, stable laser source output, RJ45 TDR testing, UTP cable diagnostics, and fiber end inspection.

Product Highlights:

5.5" OLED touchscreen with 1280×720 resolution
OTDR support for 1310/1550/ with up to 100km range
Dual dynamic range (26/24dB) for high-accuracy fiber diagnostics
Stable laser source with CW/270/330/1000/2000Hz modes
Loss test, VFL, optical power meter, cable tracer, and RJ45 TDR included
4000mAh rechargeable battery, USB/SD card data export, and PDF/Excel report generation

Key Features:

High-Precision OTDR with auto and expert modes for fault location, attenuation analysis, and event mapping
Dual Wavelength Support: Optional 1310/1550nm testing for both short and long-range applications
Event Map & Trace Graph: Automatically detect and analyze reflection and non-reflection events such as splices, bends, and breaks
Visual Fault Locator (VFL): 10mW red laser source tests for visible fiber breaks up to 8km
Loss Test Mode: Calibrate and evaluate insertion loss of optical passive devices with real-time power readings
Optical Power Meter: Multi-wavelength support (850 to 1625nm) for both linear and non-linear power display
Cable Tester: RJ45 wiremap and TDR mode to detect pin faults, breaks, and measure cable length (up to 600m)
Data Export: Save reports in .SOR, PDF, or Excel formats via USB or SD card
Rugged Interface: SC-PC port, LED lamp, Type-C power input, RS-485, and Micro SD card slot
Portable & Durable: Compact and lightweight, with 4000mAh Li-ion battery for 5+ hours of field use

Ideal For:

Fiber link deployment & certification
FTTH/FTTX installation and troubleshooting
Data center and telecom maintenance
CCTV and CATV infrastructure validation

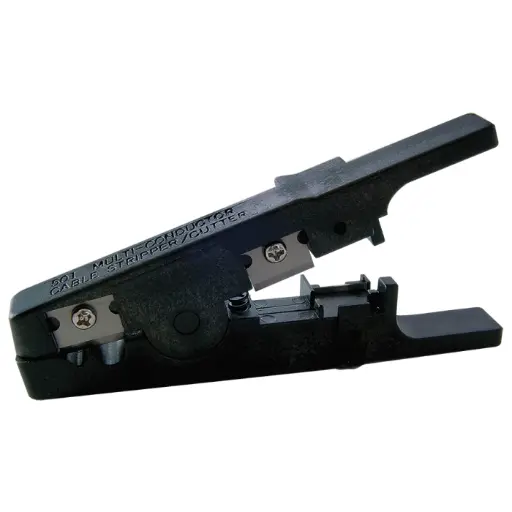

Linkbasic's cable stripping tool is designed to reduce the time required to prepare both coaxial and twisted-pair cable for termination.

The tool includes an adjustable cutting blade, which is specifically designed to accurately strip the jacket from a 4-pair cable without damaging the conductors.
SKU TOOL-STRIP
Manufacturer Linkbasic
Manufacturer Product Code TLD01

Specifications

Compatibility: 2p; 4p; 6p; 8p; 10p; and Network Cabling
Functions: Stripper & Cutter
Material: Carbon Steel
