The Ubiquiti UniFi USW‑Pro‑XG‑8‑PoE is a compact Layer‑3 Etherlighting™ switch designed for high‑performance enterprise networks. Featuring 8× 10Gbps PoE++ ports and 2× 10Gbps SFP+ uplinks, it delivers powerful throughput and flexible connectivity for next‑generation deployments.
With a 155W PoE budget (up to 60W per port), the switch can power demanding devices such as Wi‑Fi 7 access points, PTZ cameras, and VoIP systems. Its fanless design ensures silent operation, while desktop or wall‑mount options make it versatile for different environments.
Managed through the UniFi Network Application, the USW‑Pro‑XG‑8‑PoE integrates seamlessly into UniFi ecosystems, offering centralized configuration, monitoring, and automation. Compact at 210 × 174 × 44 mm and weighing 1.6 kg, it is engineered for reliability with ‑5°C to 45°C operating range and 100–240V AC input.

Technical Details:

Model / SKU: USW‑Pro‑XG‑8‑PoE
Ethernet Ports: 8 × 10Gbps (PoE++)
PoE Output: 802.3af/at/bt, up to 60W per port, 155W total budget
SFP+ Ports: 2 × 10Gbps uplinks
Switching Features: Layer‑3 Etherlighting™, fully managed
Power Input: IEC power cord (included), 100–240V AC
Max Power Consumption: 61W
Operating System: UniFi OS
Operating Temperature: ‑5°C to 45°C
Design: Fanless, silent operation
Mounting: Desktop or wall mount
Dimensions: 210.4 × 173.8 × 43.7 mm
Weight: 1.6 kg

The UltraLAN SF1010PG AI PoE Switch is a compact yet powerful 10‑port Fast Ethernet switch designed for branch networks, CCTV surveillance, and wireless access deployments. Featuring 8 PoE ports and 2 Gigabit uplinks, it ensures smooth connectivity to NVRs and core networks.
With a 65W PoE budget and support for IEEE 802.3af/at/bt standards, ports 7–8 deliver up to 60W each, making it ideal for powering PTZ cameras or high‑power wireless radios.
Advanced AI features include:
AI VLAN: isolates PoE ports to prevent broadcast storms
AI Extend: supports long‑distance PoE runs up to 250m
AI Auto‑Recovery: automatically reboots failed PD devices
The switch also provides 6kV surge protection, overload, and thermal safeguards, ensuring reliable operation in challenging environments. With a 5.6Gbps switching capacity and fanless design, the SF1010PG is optimized for quiet, efficient performance in compact installations.

Technical Details:

Model / SKU: SF1010PG
Ports: 8 × Fast Ethernet PoE + 2 × Gigabit uplinks
PoE Budget: 65W total, up to 60W on ports 7–8
PoE Standard: IEEE 802.3af/at/bt
Long‑Reach PoE: Up to 250m (Extend mode)
Switching Capacity: 5.6Gbps
Surge Protection: 6kV lightning, overload, thermal protection
Design: Fanless, metal enclosure
Dimensions: 210 × 152 × 40 mm
Use Case: Branch networks, NVR backhaul, PTZ cameras, wireless APs

The UltraLAN SF1018P AI PoE Switch is a powerful 16‑port Fast Ethernet PoE switch with 2 Gigabit uplinks and 1 Gigabit SFP combo port, engineered for surveillance, hospitality, and enterprise edge networks.
With a 150W PoE budget and support for 802.3af/at/bt standards, it delivers up to 60W per port on ports 15–16, making it ideal for powering PTZ cameras or high‑draw wireless radios.

Advanced AI automation features include:
AI PoE auto‑recovery automatically reboots failed devices
AI Extend mode supports long‑distance PoE up to 250m
AI QoS: prioritizes video traffic for smoother CCTV performance

The switch also provides 6kV surge protection, over‑voltage, and thermal safeguards, ensuring reliability in demanding environments. With a 7.2Gbps switching capacity and 8K MAC table, it is optimized for large camera clusters and multi‑floor deployments.

Technical Details:

Model / SKU: SF1018P
Ports: 16 × Fast Ethernet PoE + 2 × Gigabit RJ45 + 1 × Gigabit SFP
PoE Budget: 150W total, up to 60W on ports 15–16
PoE Standard: IEEE 802.3af/at/bt
Long‑Reach PoE: Up to 250m (ports 1–8)
Switching Capacity: 7.2Gbps
MAC Table: 8K entries
AI Features: Auto‑recovery, Extend mode, QoS prioritization
Surge Protection: 6kV lightning, over‑voltage, thermal protection
Design: Fanless, metal enclosure
Dimensions: 440 × 180 × 44 mm
Use Case: Hotels, schools, apartment buildings, factories, CCTV clusters

The UltraLAN SF1026PG AI PoE Switch is a robust 24‑port Fast Ethernet PoE switch with 2 Gigabit uplinks and 1 Gigabit SFP combo port, purpose‑built for large CCTV and wireless deployments in hotels, campuses, residential complexes, and SMEs.
Delivering a 250W PoE budget (30W per port), it powers high‑draw devices such as IP cameras and access points with ease. Advanced AI automation modes include:
AI VLAN: isolates ports to stabilize CCTV networks
AI Extend: enables 250m long‑range PoE on ports 1–8
AI PoE recovery: auto‑restores unresponsive devices
AI QoS: prioritizes video streams for smoother surveillance
With enterprise‑grade surge protection (6kV) and fanless metal design, the SF1026PG ensures silent, reliable operation. Its 8.8Gbps switching capacity and 8K MAC table provide strong performance for multi‑floor and high‑density environments.

Technical Details:

Model / SKU: SF1026PG
Ports: 24 × Fast Ethernet PoE + 2 × Gigabit RJ45 + 1 × Gigabit SFP (combo)
PoE Budget: 250W total, 30W per port
Switching Capacity: 8.8Gbps
MAC Table: 8K entries
AI Features: VLAN, Extend (250m on ports 1–8), PoE recovery, QoS prioritization
Surge Protection: 6kV lightning, power & temperature protection
Design: Fanless, metal enclosure
Dimensions: 440 × 180 × 44 mm
Use Case: Large CCTV clusters, hotels, campuses, SMEs

The Reyee RG-NBS3300-8MG2XS-P is a high-performance Layer 2+ smart managed switch designed for advanced enterprise and SMB networking. Featuring 8 × 2.5Gbps PoE ports and 2 × 10Gbps SFP+ uplinks, it delivers blazing fast connectivity with a robust 240W PoE budget across ports 1–8.
Built for scalability and remote management, it supports Ruijie’s free cloud platform with auto provisioning, QR-code onboarding, and mobile app integration. Advanced Layer 2 features include IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control, and Access Control Lists (ACL) for secure, efficient traffic handling.
Compact and desktop mountable, it’s ideal for high density deployments in smart offices, surveillance setups, and campus networks.

Key Features
🔌 8 × 2.5Gbps PoE Ports (802.3af/at) – High-speed power and data delivery
🚀 2 × 10Gbps SFP+ Uplinks – Ultra-fast fiber connectivity
⚡ 240W PoE Budget – Supports multiple high-power devices
🔒 Advanced Layer 2+ Features – IGMP Snooping, MVR, DHCP Snooping, ACL
📱 Cloud Management via Ruijie Platform – Auto-provisioning + QR onboarding
📦 Retail Box Packaging – Includes IEC Power Cord + 3-Year Warranty

Technical Specifications
Feature Details
Product Code RG-NBS8P2XS
Manufacturer Reyee
Model RG-NBS3300-8MG2XS-P
Ethernet Ports 8 × 10/100/1000/2500 Mbps
SFP Ports 2 × 10Gbps SFP+
PoE Output 802.3af/at on Ports 1–8
PoE Budget 240W
Max Power Consumption 27W
Power Input 1 × IEC Power Cord (Included)
Supported Voltage Range 100–240V
Operating Temperature 0°C to 50°C
Mounting Desktop
Operating System None
Serial Interface None
Hardware Button None
Dimensions (L × W × H) 300 × 233 × 43.6 mm
Weight 2.64 kg
Warranty 3-Year Manufacturer Warranty
Packaging Retail Box

What’s Included
1 × Reyee RG-NBS3300-8MG2XS-P Managed Switch
1 × IEC Power Cord
1 × User Documentation

Product Code: TL-SG105PE
Brand: TP-Link

🌟 Overview
The TP-Link TL-SG105PE is a compact, fanless smart switch designed for small offices, homes, and surveillance setups. With 4 PoE+ ports delivering up to 30W each and a total power budget of 65W, it powers IP cameras, VoIP phones, and access points with ease. Advanced Layer 2 features like IGMP Snooping, Port Mirroring, and Loop Prevention are managed via an intuitive web GUI. Extend Mode supports long-distance PoE transmission up to 250m, while QoS ensures smooth performance for latency-sensitive applications.

📦 Key Specifications
Attribute Details
Total Ports 5 × Gigabit RJ45
PoE Ports 4 × 802.3af/at compliant (Ports 1–4)
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5 Mb
Jumbo Frame Support 16 KB
Transmission Method Store-and-forward
Fan Configuration Fanless
Power Supply External Adapter (53.5VDC / 1.3A)
Max Power Consumption 75.2W (with full PoE load)
PoE Budget 65W total
Heat Dissipation 256.3 BTU/h (max)
Advanced Features QoS (802.1p/DSCP), IGMP Snooping V1/V2/V3, Port Mirroring, Static Link Aggregation, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode
Management Web-based GUI
Dimensions (W × D × H) 99.8 × 98 × 25 mm
Mounting Type Desktop
Operating Temp -40°C to 70°C
Operating Humidity 10%–90% RH non-condensing
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.55 kg (estimated)
Box Dimensions (L × W × H): 160 × 140 × 60 mm

Product Code: TL-SG1008P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SG1008P is a compact, high-performance desktop switch designed for small offices, home networks, and surveillance setups. With 4 PoE+ ports delivering up to 30W each and a total power budget of 64W, it powers IP cameras, VoIP phones, and access points with ease. Its fanless design ensures silent operation, while plug and play setup and QoS support make it ideal for latency-sensitive applications.

📦 Key Specifications
Attribute Details
Total Ports 8 × Gigabit RJ45
PoE Ports 4 × 802.3af/at compliant (Ports 1–4)
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.904 Mpps
MAC Address Table 4K
Jumbo Frame Support 16 KB
Transmission Method Store-and-forward
Fan Configuration Fanless
Power Supply External Adapter (54VDC / 1.3A)
Max Power Consumption 75W (with full PoE load)
PoE Budget 64W total
Heat Dissipation 225.8 BTU/h (max)
Advanced Features IGMP Snooping, QoS (802.1p/DSCP), IEEE802.3x Flow Control
Physical Security Lock slot included
Dimensions (W × D × H) 171 × 98 × 27 mm
Mounting Type Desktop
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.6 kg (estimated)
Box Dimensions (L × W × H): 220 × 140 × 60 mm

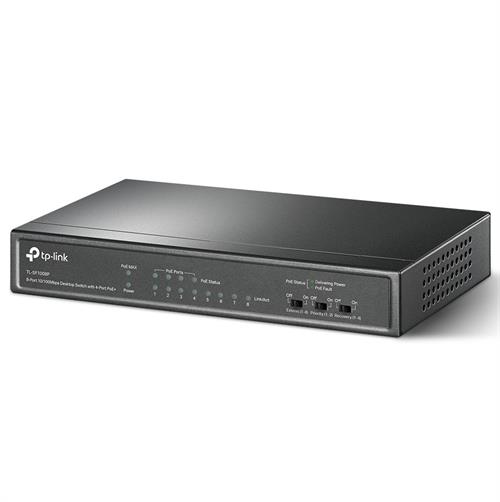

Product Code: TL-SF1009P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SF1009P is a compact, fan less desktop switch designed for small offices, home networks, and surveillance setups. With 8 PoE+ ports delivering up to 30W each and a total power budget of 65W, it powers IP cameras, VoIP phones, and access points effortlessly. Plug and play setup, physical security lock, and advanced modes like Extend, Priority, and Isolation make it a smart choice for simple yet powerful networking.

📦 Key Specifications
Attribute Details
Total Ports 9 × 10/100 Mbps RJ45
PoE Ports 8 × 802.3af/at compliant (Ports 1–8)
Uplink Port 1 × RJ45 (non-PoE)
Switching Capacity 1.8 Gbps
Packet Forwarding Rate 1.3392 Mpps
MAC Address Table 2K
Jumbo Frame Support 2 KB
Transmission Method Store-and-forward
Fan Configuration Fan less
Power Supply External Adapter (53.5VDC / 1.3A)
Max Power Consumption 77.1W (with full PoE load)
PoE Budget 65W total
Heat Dissipation 262.8 BTU/h (max)
Advanced Modes Extend (up to 250m), Priority, Isolation
Flow Control IEEE802.3x (Full Duplex), Backpressure (Half Duplex)
Physical Security Lock slot included
Dimensions (W × D × H) 171 × 98 × 27 mm
Mounting Type Desktop
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.6 kg (estimated)
Box Dimensions (L × W × H): 220 × 140 × 60 mm

Product Code: TE-TEG1120P-16-250W Brand: Tenda

🌟 Overview
The Tenda TEG1120P-16-250W is a high-performance unmanaged gigabit switch designed for scalable PoE deployments. With 16 PoE+ ports delivering up to 30W each and a total power budget of 230W, it’s ideal for powering IP cameras, access points, and VoIP phones. Two uplink RJ45 ports and two SFP slots offer flexible backbone connectivity. Built for SMBs, hotels, schools, and surveillance networks, it supports plug and play setup, rack/wall/desktop mounting, and advanced protections like 6KV lightning and ESD shielding.

📦 Key Specifications
Attribute Details
Total Ports 20 (16 × PoE+ RJ45 + 2 × RJ45 uplink + 2 × SFP)
PoE Standard IEEE 802.3af/at
Max PoE Power per Port 30W
Total PoE Budget 230W
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.8 Mpps
MAC Address Table 8K
Buffer Memory 4 Mb
Jumbo Frame Support Yes (up to 9KB)
Operating Modes Standard, Priority, Extend, VLAN
LED Indicators Power, Link/Act, PoE MAX
Transmission Media CAT5/5e UTP or better
Protection Level 6KV (Port & Power)
Forwarding Mode Store-and-forward
Fan Quantity 1
Dimensions (W × D × H) 440 × 178 × 44 mm
Mounting Options Rack, desktop, wall
Power Consumption Max 250W
Input Voltage 100–240V AC, 50/60Hz
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% non-condensing
Certifications FCC, CE, RoHS
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 4.2 kg (estimated)
Box Dimensions (L × W × H): 500 × 300 × 80 mm

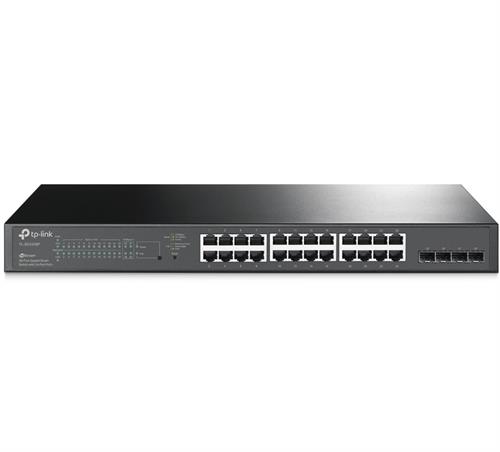

Product Code: TL-SG2428P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SG2428P JetStream Smart Switch delivers enterprise grade performance with 24 PoE+ ports and 4 Gigabit SFP slots. Designed for scalable deployments, it powers IP cameras, VoIP phones, and access points while offering centralized cloud management via Omada. With advanced Layer 2+ features, QoS, VLAN support, and robust security protocols, it’s ideal for high density networks demanding speed, flexibility, and control.

📦 Key Specifications
Attribute Details
Total Ports 28 (24 × RJ45 PoE+ + 4 × Gigabit SFP)
PoE Standard IEEE 802.3af/at
Max PoE Power Budget 250W
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Jumbo Frame Support 9KB
VLAN Support Up to 4K VLANs
QoS Features 802.1p CoS/DSCP, 8 priority queues, SP/WRR scheduling
Security Features DHCP Snooping, IP-MAC-Port Binding, ARP Inspection, Radius
Management Options Omada Cloud, OC200/OC300 Controllers, Web, TFTP
Diagnostic Tools VCT, SYSLOG, Remote Ping/Traceroute
Dimensions (W × D × H) 440 × 220 × 44 mm (17.3 × 8.7 × 1.73 in)
Mounting Rack mountable
Power Consumption Max 308.6W (with full PoE load)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: 561198 Brand: Intellinet

⚙️ Overview
The Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch is built for high performance enterprise networking. With 16 PoE+ ports delivering up to 30W each and a total power budget of 374W, it powers access points, IP cameras, and VoIP phones over standard Cat5e/Cat6 cables. Two SFP uplink ports, advanced SNMP management, VLAN support, and PoE monitoring features make it ideal for scalable deployments. Housed in a 19" rackmount chassis with dual cooling fans, it’s engineered for reliability and control.

📦 Key Specifications
Attribute Details
Ports 16 × Gigabit RJ45 (PoE+), 2 × SFP
PoE Standard IEEE 802.3at/af (PoE/PoE+)
PoE Budget 374W total, up to 30W per port
Switching Capacity 36 Gbps
MAC Address Table 8K entries
Jumbo Frame Support Up to 9 kBytes
Buffer Memory 512 kBytes
Management Web, Telnet, SSH, SNMP v1/v2c/v3, RMON
VLAN Support Tag-based & port-based
QoS Port-based & DSCP
Security IEEE 802.1x port-based
Protocols IPv4/v6, STP/RSTP, Link Aggregation
Monitoring Features PoE scheduling, device restart, PDM
Energy Efficiency IEEE 802.3az compliant
Cooling Dual high-volume fans
Mounting 19" Rackmount
Warranty 1 Year Limited

🛠️ Ideal For
Enterprise networks and IP surveillance setups
VoIP deployments and wireless access point clusters
Managed PoE environments with remote monitoring

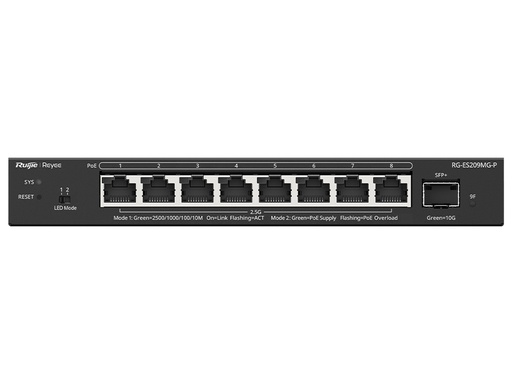

The Ruijie Reyee RG‑ES209MG‑P is a high‑performance 8‑port 2.5G PoE+ switch with a 10G SFP+ uplink, engineered for next‑generation IP surveillance and Wi‑Fi 6/7 deployments. With IEEE 802.3af/at compliance and a 130W PoE budget, it powers multiple high‑draw devices such as PTZ cameras and enterprise access points with ease.

Delivering a 60Gbps switching capacity, the RG‑ES209MG‑P ensures robust throughput across demanding networks. Its fanless metal enclosure provides silent, durable operation, while PoE Watchdog and camera detection features deliver automated self‑healing for CCTV stability.

Seamless management is enabled via the Ruijie Cloud platform and Reyee App, both included with lifetime free access, making deployment and monitoring simple and efficient. Compact at 250 × 180 × 44 mm, this switch is ideal for professional installations requiring reliable multi‑gigabit backhaul.

Technical Details:

Model / SKU: RG‑ES209MG‑P
Ports: 8 × 2.5G LAN, 1 × 10G SFP+ uplink
PoE Support: 8 PoE/PoE+ ports, 130W total budget
Switching Capacity: 60Gbps back‑plane
Design: Fanless metal enclosure for silent operation
Features: PoE Watchdog, camera detection, CCTV stability
Management: Lifetime free Ruijie Cloud + Reyee App
Dimensions: 250 × 180 × 44 mm
Applications: Wi‑Fi 6/7 APs, 4K CCTV, enterprise networks

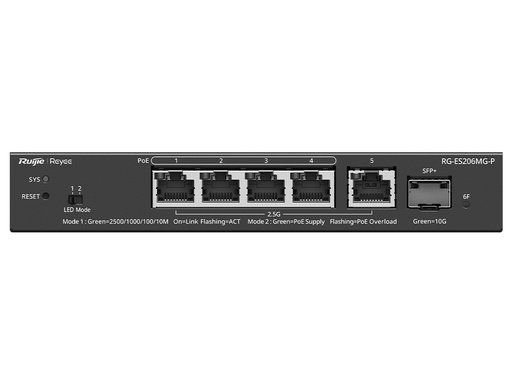

The Ruijie Reyee RG‑ES206MG‑P Smart Managed Switch is designed for SMBs, IP surveillance, and enterprise deployments requiring reliable multi‑gigabit connectivity. Featuring 4× 802.3af/at PoE+ ports with a 70W total budget (up to 30W per port), it powers IP cameras, wireless access points, and VoIP devices with ease.

Equipped with 1× 2.5Gbps RJ45 port and 1× 10G SFP+ uplink, the switch ensures fast backhaul and scalability for modern networks. Its 2.5Gbps switching capacity and fanless metal design deliver silent, efficient operation.

With Ruijie Cloud platform and Reyee App support, users benefit from lifetime free cloud management, QR code auto‑provisioning, and remote monitoring—ideal for streamlined deployments. Compact and versatile, the RG‑ES206MG‑P can be desktop or wall‑mounted, making it suitable for diverse installation scenarios.

Technical Details:

Model / SKU: RG‑ES206MG‑P
Total Ports: 5 (4× PoE+, 1× 2.5Gbps RJ45)
Uplink Port: 1× 10G SFP+
PoE Standard: IEEE 802.3af/at
PoE Budget: 70W total, up to 30W per port
Switching Capacity: 2.5Gbps back‑plane
Design: Fanless, metal enclosure
Management: Lifetime free Ruijie Cloud + Reyee App
Auto‑Provisioning: QR code & mobile app support
Form Factor: Desktop or wall‑mountable
Use Case: SMB networks, CCTV, wireless APs, VoIP

Scoop's POE-24G is a 24-Port Gigabit Passive PoE Injector featuring dual power supplies for increased PoE budget and redundancy. The unit supports an input voltage of 12-57V and is rack-mountable.

*Note: Power supply sold separately.
SKU POE-24G
Manufacturer Scoop

Specifications

Ethernet Ports: 48x 10/100/1000 (24x PoE ; 24x Ethernet)
Max. Current Per Port: 1000mA
Operating Temperature: 0°C to 50°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V

Scoop's POE-12G is a 12-Port Gigabit Passive PoE injector with dual power supplies for both Mode A and Mode B operation. The unit supports an input voltage of 24-57V and is rack-mountable.

*Note: Power supply sold separately.
SKU POE-12G
Manufacturer Scoop

Specifications

Ethernet Ports: 24x 10/100/1000 (12x PoE ; 12x Ethernet)
Max. Current Per Port: 1300mA (With 2x PSU of the same Voltage)
Operating Temperature: 0°C to 40°C
PoE Mode: Mode A & B (Mid & Endspan) A:+3/6 & -1/2- B:+4/5 & -7/8
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 24-57V Power Supply (Not Included)
Supported Voltage Range: 24-57V

Scoop's POE-16G is a 16-Port Gigabit Passive PoE injector with dual power supplies for both Mode A and Mode B operation. The unit supports an input voltage of 24-57V and is rack-mountable.

*Note: Power supply sold separately.
SKU POE-16G
Manufacturer Scoop

Specifications

Ethernet Ports: 32x 10/100/1000 (16x PoE ; 16x Ethernet)
Max. Current Per Port: 1300mA (With 2x PSU of the same Voltage)
Operating Temperature: 0°C to 40°C
PoE Mode: Mode A & B (Mid & Endspan) A:+3/6 & -1/2- B:+4/5 & -7/8
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 24-57V Power Supply (Not Included)
Supported Voltage Range: 24-57V

Cudy's CD-GS105P is a 5 Port Gigabit switch with 4x 802.3af/at PoE ports, 1x Gigabit Uplink port and a 31W PoE Budget. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4, while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when enabled. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: VLAN; Extender; Watchdog
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
Dimensions: 119 x 85 x 28mm
Weight: 254g

Ubiquiti's USW-8FLEX-2.5GP is an indoor, compact, 8 Port 2.5Gbps 802.3bt PoE switch that can be powered via PoE or the UACC-PSU-210W AC power adapter (Not Included). It also features a 10Gbps Ethernet or 10Gbps SFP+ combination uplink port.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 10/100/1000/2500; 1x 10/100/1000/10000 (Combo)
Hardware Button: None
Max. Power Consumption: PoE: 14W; PSU: 17W
Mounting: Desktop
Operating System: UniFi
Operating temperature: 20 to 45°C
PoE Input: 802.3bt (PoE+++) on Port 8
PoE Output: 802.3at PoE++)
Power Input: 802.3bt (PoE+++) or UACC-PSU-210W (Not Included)
Serial Interface: None
SFP Ports: 10Gbps SFP+ (Combo)
Supported Voltage Range: 50-57V
Dimensions: 212.9 x 99.4 x 33.5 mm
Weight: 567g

Ubiquiti's UACC-PSU-210W is a wall mountable AC power adapter which delivers 210W at 54V DC, ideal for powering PoE Switches.

Specifications
Compatibility: USW-ULTRA, USW-U60, USW-PRO-MAX16P, USW-U210
Connector: IEC
DC plug: 5.5 x 2.1 x 11.5 mm
DC cable: UL11353 16AWG 1.5 m
Voltage: 54V
Wattage: 210W
Dimensions: 190 x 86 x 26 mm
Weight: 2kg

Ubiquiti's NS4 is an unmanaged, outdoor, 4 port Gigabit switch with PoE passthrough. If powered by 24V Passive PoE can provide up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

*Note: PoE Injector not Included.

Specifications

Ethernet Ports: 4x 10/100/1000
Max. Power Consumption: 30W
Mounting: Wall or Pole Mount
Operating Temperature: -30C ~ 70C
PoE Input: Passive 24V PoE
PoE Output: 24V Passive PoE Pass-through
Power Input: 24V Passive PoE (Not Included)
Supported Voltage Range: 21.6 - 30V
Dimensions: 196.4 x 93.5 x 32.4mm
Weight: 271g
