UltraLAN Fiber Flylead ST-ST UPC MM OM3 (1Meter)

UltraLAN's 50/125μm OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

The UltraLAN OM3 Multi Mode fiber optic cables meets RoHS compliance, and is optically tested for insertion loss to ensure high quality and excellent performance. It is very cost-effective for network cabling applications in data centers, enterprise networks, telecom rooms, server racks, cloud storage networks, and any other place fiber patch cables are needed with high bandwidth demands.

Connector Type ST to ST Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM3 50/125μm
Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB

UltraLAN Fiber Flylead LC-LC UPC SM Simplex (1Meter)

The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.

The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and simplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead LC-LC UPC SM Simplex (15Meter)


The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and simplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead LC-LC UPC SM Simplex (10Meter)


The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and simplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

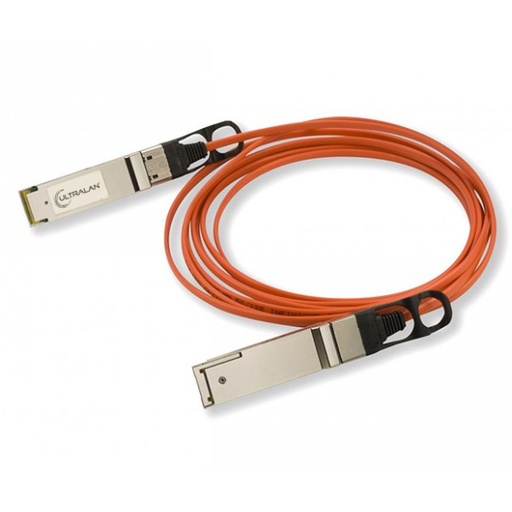

UltraLAN SFP/SFP+ 10G Active Optical Cable - 5m

The UltraLAN SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They have excellent power consumption performance and delivers speeds up to 10Gbps .They are suitable for short distances and offer a cost-effective way to connect devices such as core switches and routers within racks and cabinets.

Product Features:

Low power consumption <0.35W per end
Electrical interface compliant to SFF-8431
850nm VCSEL transmitter, PIN photo-detector receiver
Operating case temperature 0 °C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable SFP+ form factor
Good EMI performance

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 90m White

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 90m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 60m White

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 60m

UltraLAN’s pre-terminated fiber drop cable offers a cost-effective, ready-to-use solution for quickly linking FTTX equipment without the need for splicing. This ‘Bow Type’ single-mode simplex cable features LC APC connectors pre-terminated on both ends, ensuring seamless and reliable connectivity.

The cable jacket measures 2x3 mm and is made from UV-resistant, Low Smoke Zero Halogen (LSZH) material, suitable for both indoor and outdoor use. Compliant with G657A2 specifications, this bend-insensitive cable simplifies installations around tight corners and confined spaces.

Enhanced with two internal 0.45 mm phosphate reinforcement wires, the cable is engineered for superior durability and pull strength during installation.

Key Features:

Single-mode, 1 core (simplex)
Pre-terminated LC APC connectors on both ends
UV-resistant, LSZH outer jacket (2x3 mm)
Bend-insensitive per G657A2 standards
Reinforced with internal phosphate wires for durability
Ideal for indoor/outdoor FTTX applications
Cable length: 60 meters

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 60m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 30m White

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 30m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 150m White

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 150m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 1 core (simplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Duplex - 90m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 2 core (duplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Duplex - 60m


UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.


This cable is a ‘Bow Type’, Single Mode, 2 core (duplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.


The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Duplex - 30m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 2 core (duplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Pre-Terminated Drop Cable (LC/APC) Duplex - 150m

UltraLAN's pre-terminated fiber drop cables are cost effective cable assemblies designed for linking FTTX equipment together easily and quickly, without the need for splicing.

This cable is a ‘Bow Type’, Single Mode, 2 core (duplex), FTTX cable which has LC APC connectors pre-terminated on both sides. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material. As the cable adheres to G657A2 specs, it is bend-insensitive, making for easier installations for both indoor or outdoor applications.

The cable is also supported by two 0.45mm phosphate wires internally, giving reinforcement to the cable when bending around corners and improving pull strength.

UltraLAN Fiber Pigtail - SC APC SM Simplex 0.9m

UltraLAN fiber optic pigtails provide a fast way to make communication links in the field, and are also commonly used for termination inside patch panels and termination boxes. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet the most stringent mechanical and performance specifications.

Connector A SC Connector B Unterminated
Fiber Mode 9/125 μm Fiber Count Simplex
Fiber Grade G.652.D Minimum Bend Radius 30 mm
Polish Type APC Wavelength 1310 nm/1550 nm
Insertion Loss ≤0.3 dB Return Loss ≥60 dB

UltraLAN Fiber Pigtail - LC UPC SM Simplex 0.9m

UltraLAN fiber optic pigtails provide a fast way to make communication links in the field, and are also commonly used for termination inside patch panels and termination boxes. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet the most stringent mechanical and performance specifications.

Connector A LC Connector B Unterminated
Fiber Mode 9/125 μm Fiber Count Simplex
Fiber Grade G.652.D Minimum Bend Radius 30 mm
Polish Type UPC Wavelength 1310 nm/1550 nm
Insertion Loss ≤0.3 dB Return Loss ≥50 dB
