Technical Specifications
| Feature | Details |
|---|---|
| Product Code | FIB-CBL-DC4C-BT-BCK |
| Brand | UltraLAN |
| Type | Fiber Drop Cable |
| Fiber Count | 4 Core |
| Fiber Mode | OS2 G.657A2 (bend‑insensitive) |
| Jacket Material | UV‑resistant LSZH (black) |
| Strength Member | Two 0.45mm phosphate steel wires |
| Cable Size | 2 × 3mm |
| Supplied Length | 2000m drum |
| Attenuation | ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm |
| Mode Field Diameter | 9.2μm @1310nm, 10.4μm @1550nm |
| Tensile Strength | 150N (long‑term), 300N (short‑term) |
| Crush Resistance | 300N/10cm (long‑term), 650N/10cm (short‑term) |
| Bend Radius | 10D static / 20D dynamic |
| Operating Temperature | ‑40°C to +70°C |
Price Disclaimer: Prices are subject to change at any time without prior notice.

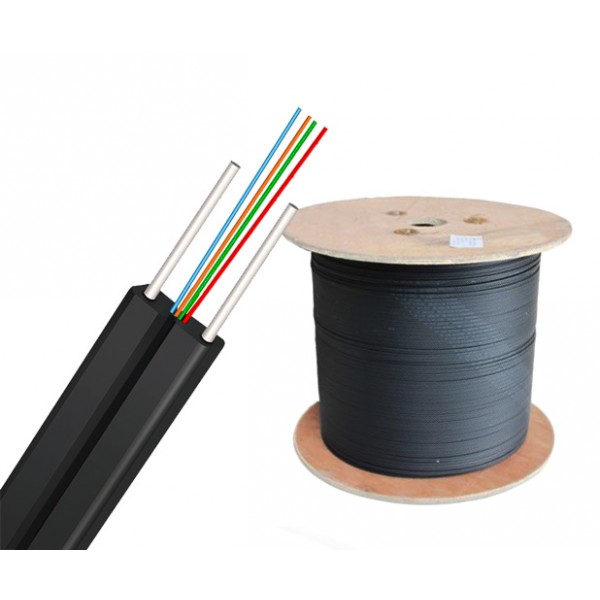

UltraLAN Fiber Bow Type Drop Cable 4 Core
Brand: UltraLAN
Product Code / SKU: FIB-CBL-DC4C-BT-BCK
Model: Fiber Bow Type Drop Cable – Black, 4 Core
Description
The UltraLAN Fiber Bow Type Drop Cable (Black) – 4 Core is a bend‑insensitive G.657A2 single‑mode fiber cable designed for FTTX applications.
Its 2 × 3mm LSZH (Low Smoke Zero Halogen) jacket is UV‑resistant, making it suitable for both indoor and outdoor installations. Reinforced with two 0.45mm phosphate steel wires, the cable offers enhanced pull strength and corner resistance, ensuring reliable performance in demanding environments.
Supplied on a 2000m wooden drum, this cable is ideal for fiber drop connections in telecom and enterprise networks.
Key Features
Fiber Count: 4 core (G.657A2 single‑mode, bend‑insensitive)
Jacket Material: UV‑resistant LSZH (black)
Strength Member: Two 0.45mm phosphate steel wires
Cable Size: 2 × 3mm flat bow type design
Supplied Length: 2000m wooden drum
Bend‑insensitive for corner routing and tight installations
Optical Performance
Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm
Mode Field Diameter: 9.2μm @1310nm, 10.4μm @1550nm
Mechanical Ratings
Tensile Strength: 150N (long‑term), 300N (short‑term)
Crush Resistance: 300N/10cm (long‑term), 650N/10cm (short‑term)
Bend Radius: 10D static / 20D dynamic
Operating Temperature: ‑40°C to +70°C
What’s Included
1 × UltraLAN Fiber Bow Type Drop Cable (Black) – 4 Core (2000m drum)
