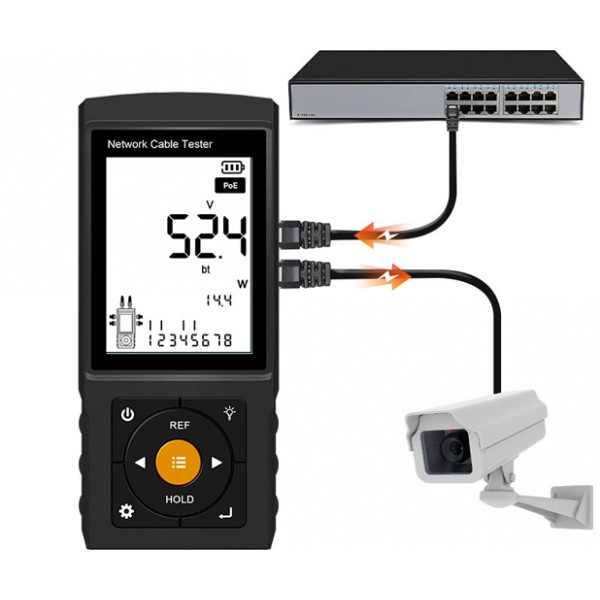

UltraLAN FIB-T-MPCT-OPM-VFL 6-in-1 Tester RJ45 PoE 90 W, -70 dBm OPM, 10 km VFL, 600 m

UltraLAN Multi-Function Fiber & Network Cable Tester

Short Description:

RJ45 + fiber tester in one hand-held unit
Wire-map, length (1–600 m ±3%), PoE 0–90 W, port-flash, tracer, NCV
Built-in OPM: –70 to +6 dBm, 850–1650 nm, REF-loss mode
10 mW VFL: 650 nm red laser, continuous & pulse, 10 km range
Supplied with remote terminator, RJ45/RJ11 leads, FC/SC/LC adaptors, carry-case

Key Specifications:

Cable Types: RJ45 Ethernet + fiber optic
Functions: Wire-map, cable length (1–600 m ±3%), PoE detection (0–90 W, af/at/bt), port-flash, tracer, NCV (non-contact voltage)
Optical Power Meter (OPM): –70 to +6 dBm range; wavelength support 850–1650 nm; REF-loss mode; user calibration
Visual Fault Locator (VFL): 10 mW 650 nm red laser; continuous & 1/2 Hz pulse modes; detects breaks up to 10 km
Display: 3" high-contrast LCD
Operating Temp: –10 °C to +50 °C
Power Supply: 5 × AA batteries (3 × AA for emitter, 2 × AA for receiver)
Included Accessories: Remote terminator, RJ45/RJ11 leads, FC/SC/LC adaptors, carry-case
Warranty: 1-year UltraLAN warranty
Gross shipping weight: Approx. 1.2 kg
Retail pack includes Tester unit, remote terminator, leads, adaptors, carry-case, user manual
