UltraLAN Bow-Type 2-Core G657A2 Drop Cable LSZH, UV, 2×3 mm, 0.45 mm Wire, 2 km Drum

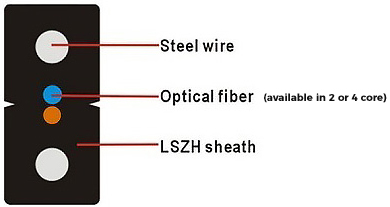

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners. With a white outer jacket, the cable blends into indoor home or office environments better.

Short Description:

Bend-insensitive G657A2 single-mode fiber
2-core flat “bow” profile with white LSZH jacket
UV-resistant, indoor/outdoor rated, –20 °C to +60 °C
Reinforced with 0.45 mm phosphate wires for pull strength
Supplied on 2000 m wooden drum with sequential metre marks

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat “bow” profile (2 × 3 mm)
Jacket Material: White LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Safety: LSZH for low smoke and halogen-free compliance
Optical Performance:
Attenuation ≤ 0.35 dB/km @ 1310 nm
Attenuation ≤ 0.21 dB/km @ 1550 nm
Minimum bend radius: 5 mm

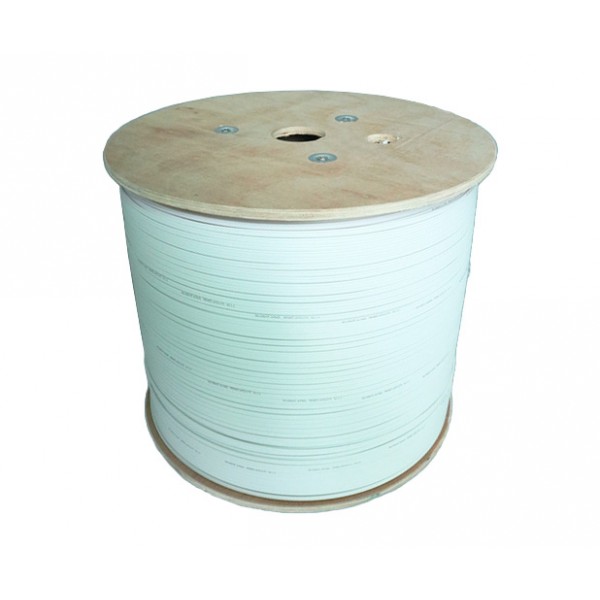

Packaging: Supplied on 2000 m wooden drum
Drum Specs: Ø 400 × 260 mm; approx. 22 kg
Cutting Aid: Sequential metre marks every 1 m
Gross shipping weight: Approx. 23 kg
Retail pack includes: 2 km drum with sequential markings
