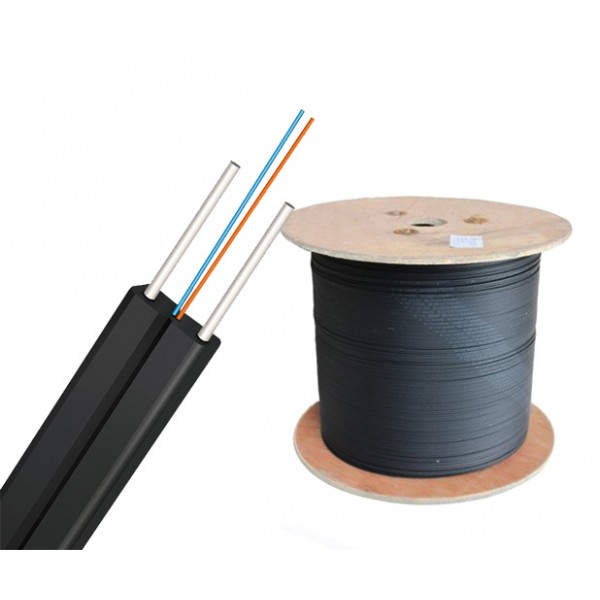

UltraLAN Bow-Type 2-Core G657A2 Drop Cable Black, LSZH, UV, 2×3 mm, 2 km Drum

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.

Short Description:

Bend-insensitive G657A2 single-mode fiber in a black 2 × 3 mm bow-profile jacket

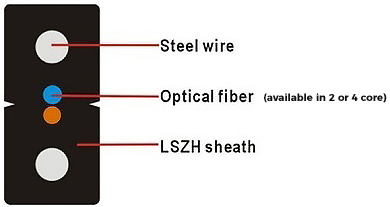

Two 0.45 mm phosphate wires for > 200 N pull strength and tight-corner stability
UV-resistant, indoor/outdoor rated, LSZH jacket for low smoke and halogen-free safety
Supplied on a 2 km wooden drum with sequential metre marks every 1 m

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat bow profile (2 × 3 mm)
Jacket Material: Black LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Optical Performance: Attenuation ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm
Bend Radius: Minimum 5 mm
Packaging: Supplied on 2 km wooden drum; sequential metre marks every 1 m
Gross shipping weight: Approx. 22–23 kg
Drum dimensions: Ø 400 × 260 mm
