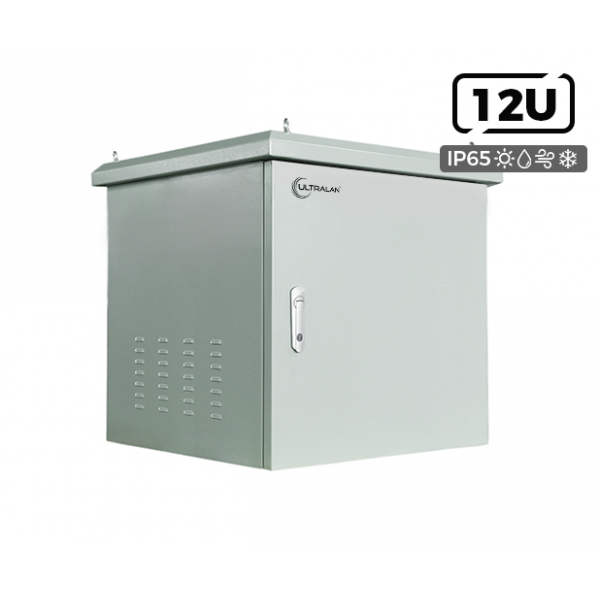

UltraLAN 12U Outdoor Wall Mount Cabinet | 450mm
Brand: UltraLAN
SKU/Product Code: CAB‑C‑64512OD
Description: 12U outdoor wall mount cabinet with 450mm depth, 2 cooling fans, weatherproof steel construction, and 3‑point locking system.
Product Overview
The UltraLAN CAB‑C‑64512OD is a rugged outdoor wall mount cabinet designed to protect sensitive networking equipment from harsh environments. Built from electro‑galvanized cold rolled steel with a powder‑coated finish, it resists corrosion and ensures long‑term durability.
For weatherproofing, the cabinet features a polyurethane door joint strip for water and dust protection, plus a roof awning to prevent rain ingress. Security is enhanced with a 3‑point swing handle locking system, while ventilation is managed through side panel vents with replaceable mesh filters and 2 ceiling‑mounted fans for efficient heat dissipation. Cable entry is provided via rubber‑sealed glands at the base, and four hooks on top simplify installation.
Key Features
12U outdoor wall mount cabinet – 450mm body depth (500mm including rooftop)
Powder‑coated electro‑galvanized cold rolled steel – corrosion resistant
Supplied fully assembled – saves installation time
Polyurethane door joint strip – water & dust protection
Roof awning – prevents rain ingress
3‑point swing handle locking system – enhanced security
2 ceiling‑mounted fans – improved airflow and cooling
Side vents with replaceable mesh filters – dust resistance
Adjustable 19" mounting rails – numbered U markings for easy alignment
Cable entry via round glands with removable rubber covers
4 hooks on top – easier installation
Technical Specifications
Specification Details
Product Code CAB‑C‑64512OD
Manufacturer UltraLAN
Rack Units 12U
Rack Width 19"
Depth 450mm body / 500mm including rooftop
Dimensions (W × D) 600mm wide × 450mm deep
Material Electro‑galvanized cold rolled steel
Finish Powder‑coated
Front Door 3‑point swing handle lock, polyurethane seal
Cooling 2 ceiling‑mounted fans
Side Panels Vented with replaceable mesh filters
Cable Entry Round glands with rubber covers (base)
Mounting Wall mount (hooks included)
Assembly Supplied fully assembled
Warranty 1 Year Limited
📦 Gross Shipping Weight
Actual product weight: ~30–32 kg (typical for 12U outdoor steel cabinets with fans)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 34 kg
🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).
