UltraLAN 10U Desktop open frame Rack | CAB-C-DR010U

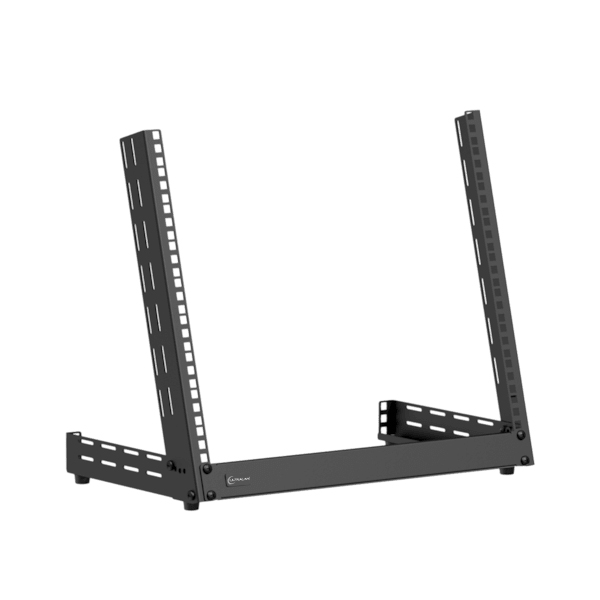

A professional and solidly constructed desktop rack with an adjustable angle for 19'' equipment, compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. It ensures maximum installation, connectivity, and maintenance ease while simultaneously storing up to 10 units for studio, processing, test, and other 19” equipment.
The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.
The construction is made from 2.0 mm thick steel, finished in a black (RAL9004) powder coating with a fine structure. Punched equipment mounting profiles on the front offer multifunctional use of the rack, while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.
Product Features:
Adjustable Angle: 0° - 15° adjustable tilt angle
Unit Height: 9 HE
Max. Load: 30 kg
Dimensions: 509 x 446.2 x 301.3 mm (W x H x D) (incl. rubber feet)
Colour: Black (RAL9004)
Accessories Included: 1 set assembly hardware, 20 x cage nuts + screws
Highlights:
Stores up to 10 units of 19'' equipment
Punched square holes for use with snap-in cage nuts
2.0 mm thick cold-rolled steel frame
Easy assembly in 5 minutes
Ships as flat-down package
Desktop standing use
Slanted front for optimal stability and equipment viewing
Perforated sides for cable guiding or accessories mounting
0° - 15° adjustable angle
1-unit backside mounting possibility
