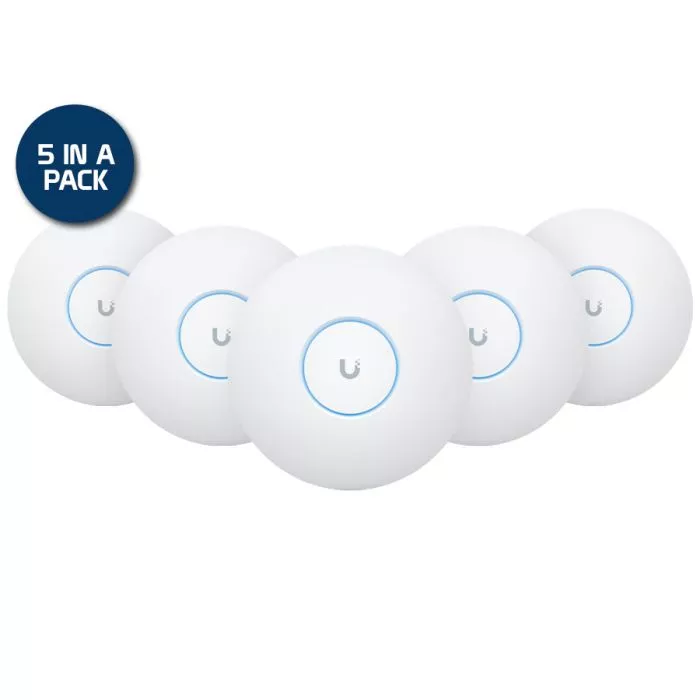

Ubiquiti UniFi WiFi 7 Pro AP 5‑Pack
Brand: Ubiquiti
Product Code: U7‑PRO‑5
Description: Ubiquiti UniFi WiFi 7 Pro Tri‑Band AP 5‑Pack
Product Overview
The Ubiquiti UniFi U7‑Pro‑5 delivers five WiFi 7 Pro Tri‑Band access points in a single package, designed for high‑performance wireless networking in demanding environments. Each unit supports 2.4GHz, 5GHz, and 6GHz bands with MU‑MIMO technology, providing an aggregate data rate of up to 9.3Gbps. Equipped with a 2.5Gbps Ethernet port, these APs ensure fast wired backhaul. Managed via the UniFi Network Application, they offer seamless configuration and monitoring.
Key Features
Tri‑Band WiFi 7 access points (2.4GHz, 5GHz, 6GHz)
Aggregate throughput up to 9.3Gbps
2.4GHz: 688Mbps, 5GHz: 2.8Gbps, 6GHz: 5.7Gbps
Antenna gain: 2.4GHz 4dBi, 5GHz 6dBi, 6GHz 5.8dBi
1 × 2.5Gbps Ethernet port
Ceiling or wall mount options
Managed via UniFi Network Application
Max power consumption: 21W per unit
Operating temperature: –30°C to 60°C
Dimensions: Ø206 × 46 mm
Net weight per unit: 680g
Gross shipping weight (5‑pack): ~5.0–5.5 kg (including packaging)
Note: PoE injector not included
Technical Specifications
Feature Details
Product Code U7‑PRO‑5
Antenna Gain 2.4GHz: 4dBi; 5GHz: 6dBi; 6GHz: 5.8dBi
Beamwidth 360°
Data Rate 2.4GHz: 688Mbps; 5GHz: 2.8Gbps; 6GHz: 5.7Gbps
Ethernet Ports 1 × 10/100/1000/2500
Hardware Button Reset
Max Power Consumption 21W
Mounting Ceiling or Wall
Operating System UniFi
Operating Temp –30°C to 60°C
PoE Input 802.3at or Passive PoE
PoE Output None
Supported Voltage 44–57V
Dimensions Ø206 × 46 mm
Net Weight 680g per unit
Gross Shipping Weight 5.0–5.5 kg (5‑pack)
What’s Included
5 × Ubiquiti UniFi WiFi 7 Pro Tri‑Band AP units
Mounting accessories (ceiling/wall)
User documentation
