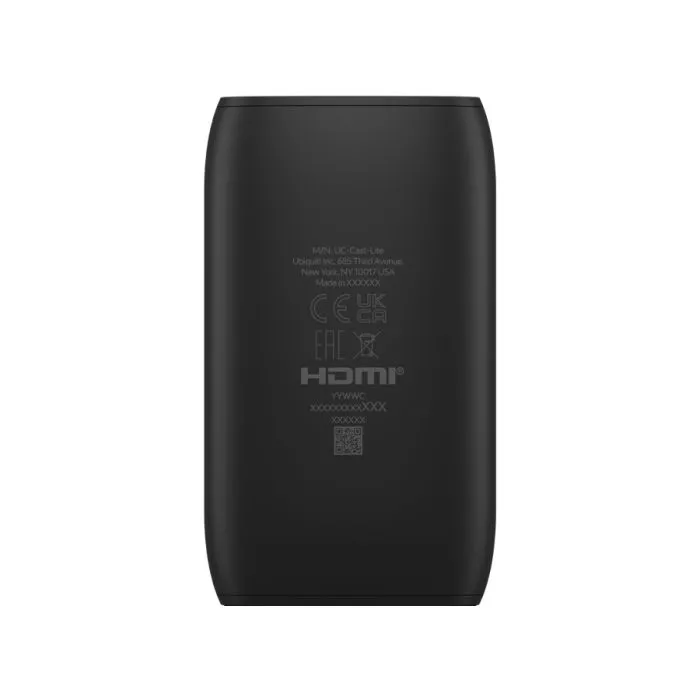

Ubiquiti UniFi UC‑Cast‑Lite HDMI Player

Brand: Ubiquiti
Product Code: UC‑CAST‑LITE
Description: Ubiquiti UniFi Dual Band WiFi 6 HDMI Display Cast Lite

Product Overview
The Ubiquiti UC‑Cast‑Lite is a compact digital signage player designed for seamless media playback on HDMI displays. Powered by the included USB‑C adapter, it features dual‑band WiFi (2.4GHz and 5GHz) for smooth integration with UniFi Access Points. Managed via the UniFi Connect application, it provides reliable performance for digital signage, presentations, and media streaming in commercial or enterprise environments.

Key Features
Digital signage player with HDMI output
Dual‑band WiFi: 2.4GHz (20/40 MHz) and 5GHz (20/40/80 MHz)
Powered via USB‑C (5V 1A adapter included)
Quad‑Core Arm Cortex‑A55 processor at 1.9GHz
Compact design for discreet installation
Max power consumption: 5W
Operating temperature: 0°C to 40°C
Dimensions: 92.1 × 56.3 × 40.8 mm
Net weight: 180g
Gross shipping weight: 0.5–0.7 kg (including packaging)

Technical Specifications
Feature Details
Product Code UC‑CAST‑LITE
Buttons Reset
Connectivity 2.4GHz (20/40 MHz); 5GHz (20/40/80 MHz)
Display Output HDMI
Max Power Consumption 5W
Operating Temp 0°C to 40°C
Power Input USB‑C 5V 1A (included)
Processor Quad‑Core Arm Cortex‑A55, 1.9GHz
Dimensions 92.1 × 56.3 × 40.8 mm
Net Weight 180g
Gross Shipping Weight 0.5–0.7 kg

What’s Included
1 × Ubiquiti UC‑Cast‑Lite Digital Signage Player
1 × USB‑C power adapter
User documentation
