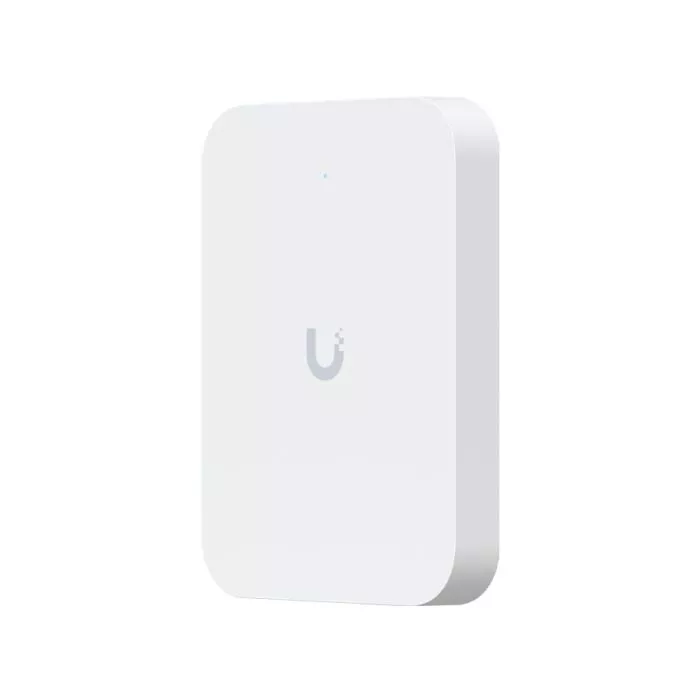

Ubiquiti UniFi U7‑IW WiFi 7 In‑Wall AP
Brand: Ubiquiti
Product Code: U7‑IW
Description: Ubiquiti UniFi Dual Band WiFi 7 2.5G PoE Out In‑Wall AP
Product Overview
The Ubiquiti UniFi U7‑IW is a wall‑mounted, dual‑band WiFi 7 access point designed for modern high‑speed networks. Featuring 4 spatial streams and 3 × 2.5Gbps Ethernet ports (one supporting PoE input and one supporting PoE output), it delivers an aggregate throughput of up to 5Gbps across its 5GHz (2×2 MU‑MIMO) and 2.4GHz (2×2 MU‑MIMO) bands. Compact and discreet, the U7‑IW integrates seamlessly into UniFi environments and is managed via the UniFi Network Application.
Key Features
Dual‑band WiFi 7 with aggregate throughput up to 5Gbps
5GHz: 4.3Gbps, 2.4GHz: 688Mbps
4 spatial streams with MU‑MIMO support
3 × 2.5Gbps Ethernet ports (PoE input/output supported)
Antenna gain: 2.4GHz 4dBi, 5GHz 8dBi
Wall‑mount design for discreet installation
Max power consumption: 13W
Operating temperature: –30°C to 40°C
Dimensions: 137 × 98.7 × 30.2 mm
Net weight: 400g
Gross shipping weight: 0.8–1.0 kg (including packaging)
Note: PoE injector not included
Technical Specifications
Feature Details
Product Code U7‑IW
Antenna Gain 2.4GHz: 4dBi; 5GHz: 8dBi
Beamwidth 360°
Data Rate 2.4GHz: 688Mbps; 5GHz: 4.3Gbps
Ethernet Ports 3 × 10/100/1000/2500
Hardware Button Reset
Max Power Consumption 13W
Mounting Wall‑mount
Operating System UniFi
Operating Temp –30°C to 40°C
PoE Input 802.3af/at (PoE+ required for PoE output)
PoE Output 802.3af
Power Input 802.3af/at
Dimensions 137 × 98.7 × 30.2 mm
Net Weight 400g
Gross Shipping Weight 0.8–1.0 kg
What’s Included
1 × Ubiquiti UniFi U7‑IW In‑Wall Access Point
Mounting accessories
User documentation
