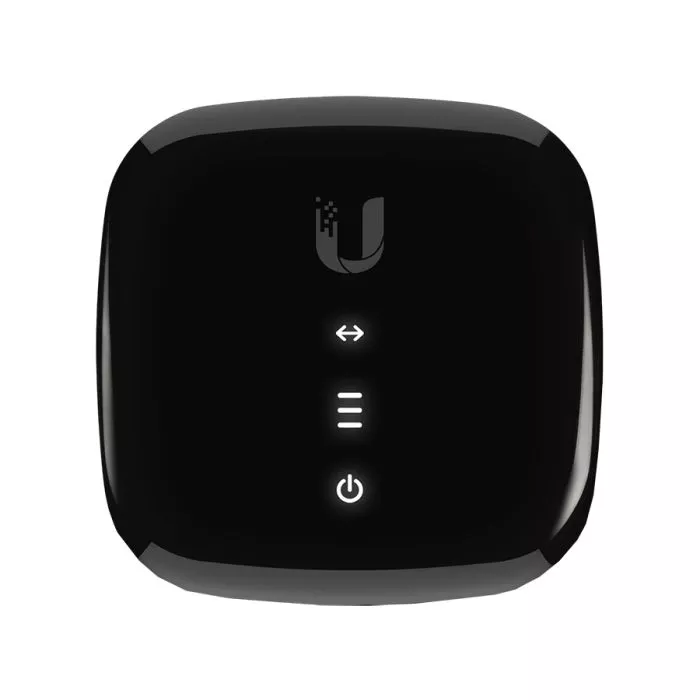

Ubiquiti UISP Fiber Loco GPON CPE with PoE in | UF-LOCO
Ubiquiti's UF-LOCO is a robust, high-performance GPON CPE that features extremely low power consumption and a choice of 24V passive PoE or Micro-USB power methods. It supports GPON links of up to 20km. The UF-LOCO integrates with the UF-OLT4 and UF-OLT and provides powerful Layer 2/3 management features.
It can be managed via the UISP network management platform.
For third-party compatibility, Ubiquiti has provided the following guide: OLT Compatibility Guide.(https://help.ui.com/hc/en-us/articles/115009335068-UISP-Fiber-Supported-Third-Party-OLTs)
Specifications
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 1A Micro USB Power Supply (Included)
Processor: MIPS32; 240 MHz
Serial Interface: None
SFP Ports: 1x 2.5/1.25Gbps SC APC GPON
Supported Voltage Range: 24V Passive PoE or 4.7 – 5.3VDC
System Memory: 128 MB DDR3
USB Ports: None
Dimensions: 76.5 x 76.5 x 26.4mm
Weight: 77g
