Technical Specifications
| Feature | Details |
|---|---|
| Product Code | UDB‑SWITCH |
| Brand | Ubiquiti |
| Ethernet Ports | 7 × 10/100/1000/2500 Mbps |
| Uplink Port | 1 × 10/100/1000/10000 Mbps |
| PoE Output | 802.3af/at on ports 1–8 |
| Max PoE Budget | 35W (60W adapter), 185W (UACC‑PSU‑210W) |
| Antenna Gain | 5GHz: 8dBi, 6GHz: 8dBi |
| Data Rate | 5GHz: 4.3Gbps, 6GHz: 5.8Gbps |
| Hardware Button | Reset |
| Max Power Consumption | 25W |
| Power Input | 54V 1.1A (adapter included) |
| Supported Voltage | 42.5–57V DC |
| Mounting | Desktop or wall‑mount |
| Operating Temp | –30°C to 40°C |
| Dimensions | 212.9 × 113 × 32.5mm |
| Weight | 548g |
| Warranty | 1 year |
Price Disclaimer: Prices are subject to change at any time without prior notice.

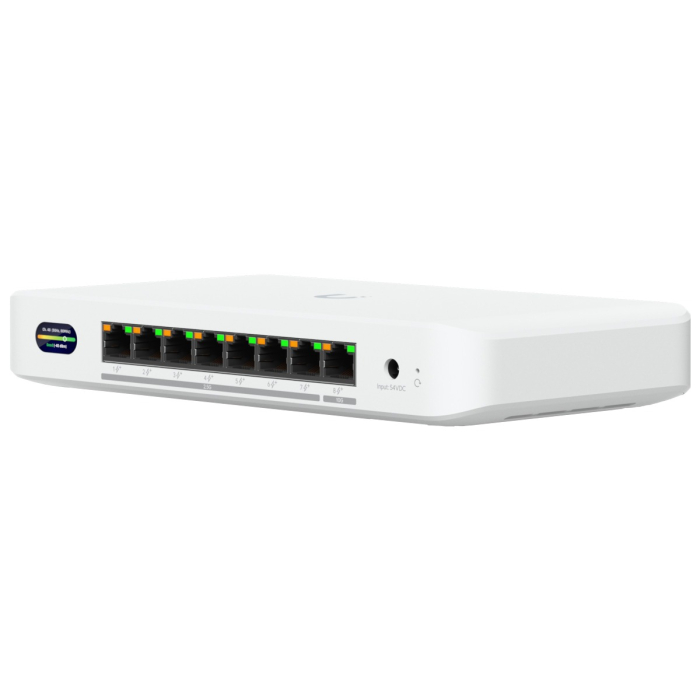

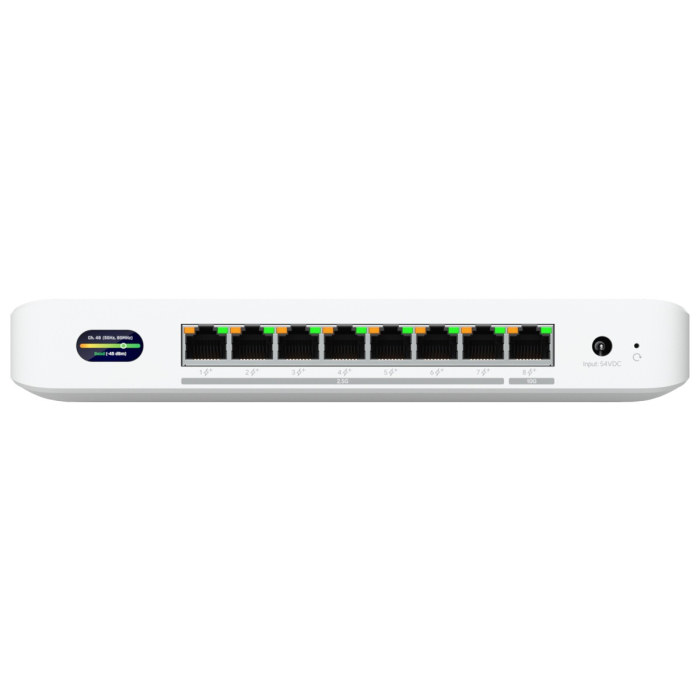

Ubiquiti UDB-SWITCH UniFi 8-Port PoE Switch WiFi 7
Brand: Ubiquiti
Product Code / SKU: UDB‑SWITCH
Supplier Code: UDB‑Switch
Description
Ubiquiti UDB‑SWITCH – compact UniFi Device Bridge PoE switch with WiFi 7 support. Features 7 × 2.5Gbps PoE+ ports and 1 × 10Gbps PoE+ port. Provides 35W PoE power with included 60W adapter, expandable to 185W with UACC‑PSU‑210W. Includes UniFi OS management, AES encryption, and IP‑based security. Desktop or wall‑mount design, retail box packaging, 1‑year warranty.
Product Overview
Ubiquiti UDB‑SWITCH – WiFi 7 UniFi PoE switch with 7 × 2.5G + 1 × 10G ports, 35W PoE power, UniFi OS, compact design for modern networks.
Highlights
WiFi 7 UniFi Device Bridge switch
7 × 2.5Gbps PoE+ ports
1 × 10Gbps PoE+ port
PoE budget: 35W (60W adapter included)
Expandable PoE budget: 185W with UACC‑PSU‑210W
Antenna gain: 5GHz 8dBi, 6GHz 8dBi
Data rate: 5GHz up to 4.3Gbps, 6GHz up to 5.8Gbps
AES encryption with SSL/TLS, WPA/WPA2‑PSK
Max power consumption: 25W (switch only)
Desktop or wall‑mount installation
Operating temperature: –30°C to 40°C
Dimensions: 212.9 × 113 × 32.5mm
Weight: 548g
Retail box packaging
1‑year warranty

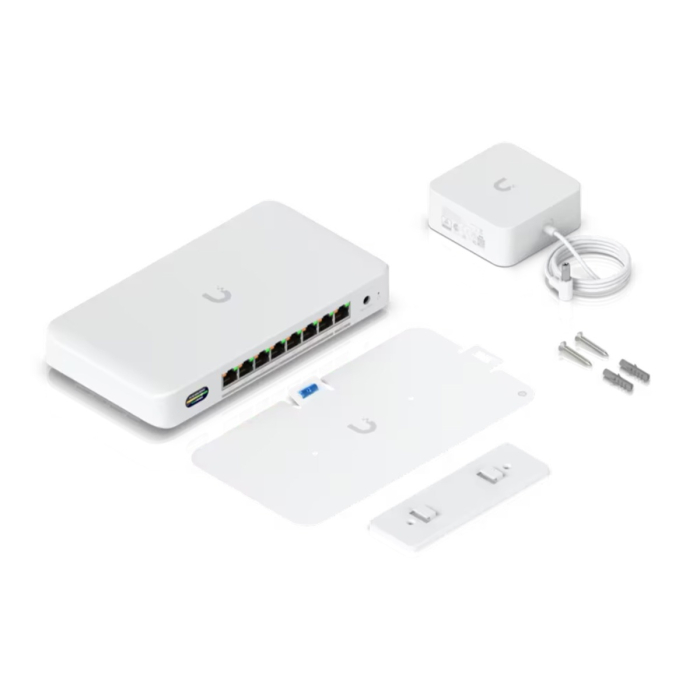

What’s Included
1 × Ubiquiti UDB‑SWITCH UniFi Device Bridge PoE Switch
54V 1.1A power supply (60W adapter)
User manual
Retail box packaging
