Technical Specifications
| Feature | Details |
|---|---|
| Product Code | TL‑SF1009P |
| Description | TP‑Link TL‑SF1009P 9‑Port Fast Ethernet Desktop Switch |
| Ports | 9 × 10/100Mbps RJ45 (8 × PoE+, 1 × non‑PoE) |
| PoE Budget | 65W total, up to 30W per port |
| Switching Capacity | 1.8Gbps |
| Forwarding Rate | 1.34Mpps |
| MAC Address Table | 2K entries |
| Jumbo Frame Support | Up to 2KB |
| Standards | IEEE 802.3/802.3u/802.3x, 802.3af/at, 802.1p |
| QoS | 802.1p/DSCP priority queues |
| IGMP Snooping | Supported |
| Power Supply | External adapter, 53.5V DC / 1.3A |
| Max Power Consumption | 77.1W (with PD connected), 3.6W (no PD connected) |
| Heat Dissipation | 262.8 BTU/h (with PD connected) |
| Dimensions | 171 × 98 × 27 mm |
| Fan Quantity | Fanless |
| Warranty | 1 Year |
Price Disclaimer: Prices are subject to change at any time without prior notice.

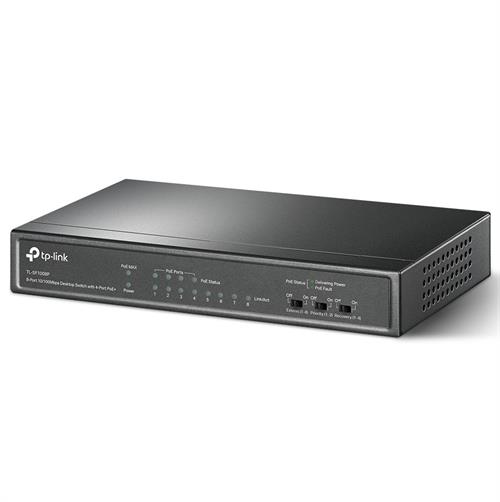

TP‑Link TL‑SF1009P 9‑Port 8‑PoE+ Switch
Brand: TP‑Link
Product Code / SKU: TL‑SF1009P
Description
TP‑Link TL‑SF1009P Switch TL‑SF1009P - 9‑port Fast Ethernet desktop switch with 8× PoE+ ports and 1× non‑PoE port, 65W PoE budget, extend mode, priority mode, isolation mode, fanless design, plug‑and‑play setup, compact housing, retail box, 1‑year warranty.
Product Overview
TP‑Link TL‑SF1009P 9‑port Fast Ethernet desktop switch with 8× PoE+ and 1× non‑PoE port, 65W budget, extend mode, priority mode, and 1‑year warranty.
Highlights
9 Fast Ethernet RJ45 ports total: 8 PoE+ ports + 1 non‑PoE port
PoE+ ports (802.3af/at compliant) deliver up to 30W each
65W total PoE power budget for IP cameras, APs, and VoIP phones
Extend mode button: ports 1–4 or 1–8 support up to 250m PoE transmission
Priority mode button: ports 1–2 prioritized for critical devices
Isolation mode button: ports 1–8 isolated for enhanced security
Switching capacity: 1.8Gbps with 1.34Mpps forwarding rate
Jumbo frame support up to 2KB
Fanless design for silent operation
Compact desktop housing with external power adapter
Plug‑and‑play installation, no configuration required
1‑year limited warranty
Compact Item - ships easily
What’s Included
1 × TP‑Link TL‑SF1009P Desktop Switch
External power adapter
Quick installation guide
Retail box packaging
1‑year limited warranty
