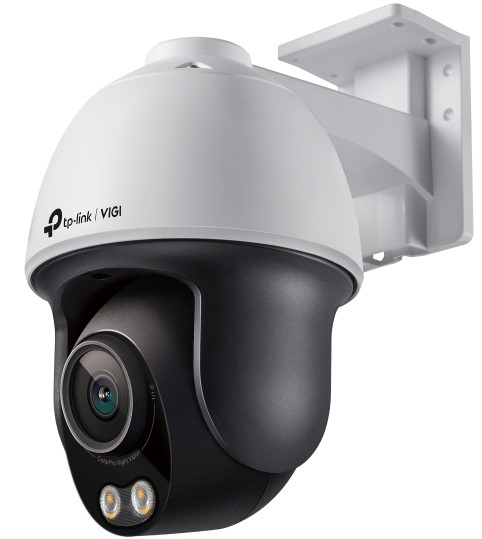

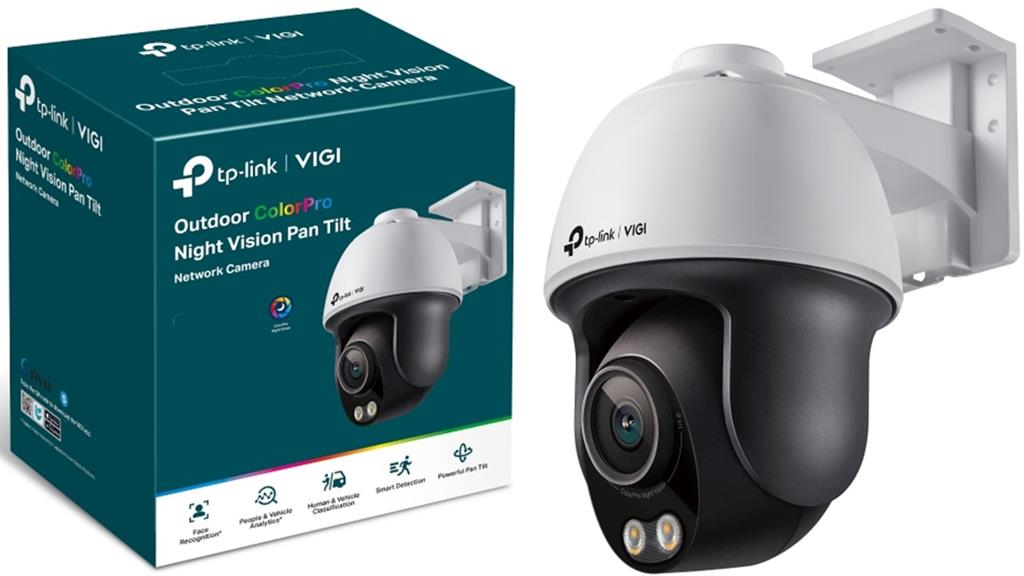

TP-Link VIGI C540S PTZ Network Camera 4MP Full Color, Smart Detection, 360° Monitoring
Product Code: VIGI-C540S(4MM)
Brand: TP-Link
🌟 Overview
The TP-Link VIGI C540S is a high-performance 4MP PTZ network camera engineered for 24/7 full-color surveillance even in ultra-low light conditions. With advanced analytics like face recognition, people & vehicle detection, and smart event alerts, it enhances security and operational efficiency. The camera supports 360° coverage, two-way audio, active defense, and H.265+ compression for optimized storage. Its IP66-rated housing ensures reliable outdoor performance in harsh environments.
📦 Key Specifications
Attribute Details
Resolution 4MP (2560 × 1440) Full-Color
Sensor 1/1.79" Progressive Scan CMOS
Lens Fixed 4 mm, F1.0 ±5%, M16 mount
Night Vision Ultra-low-light full-color (no IR needed)
Detection Range Detect: 63m, observe: 26m, recognize: 13m, Identify: 6m
Pan/Tilt Range Pan: 0°–348°, Tilt: 0°–105°
PTZ Features Preset, Patrol Scan, 3D Positioning
Smart Detection Area intrusion, line-crossing, human/vehicle classification
Analytics* Face recognition, people & vehicle search
Audio Two-way, 8KHz sampling, noise filtering
Privacy Mask Up to 4 zones
Compression H.265+, H.264
Power Supply 12V DC ±5%, Max 13.13W or PoE 802.3at (Max 16.47W)
Operating Temp -30°C to +60°C
Waterproof Rating IP66
Dimensions (L × W × H) 120 × 172 × 203 mm
Warranty 1 Year Limited
