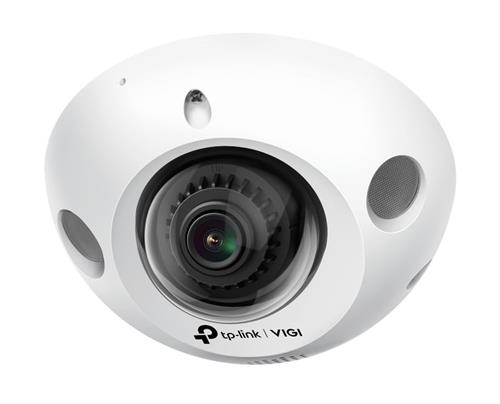

TP-Link VIGI C230I Mini 3MP IR Dome Camera, Smart Detection, IK08 Vandal Proof

Product Code: VIGI-C230I MINI(2.8MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C230I Mini is a compact, yet powerful dome camera designed for wide angle surveillance in tight indoor or semi outdoor spaces. With 3MP resolution, 30m infrared night vision, and smart detection features, it delivers reliable monitoring around the clock. Its IK08-rated vandal resistant housing and IP rated weatherproofing make it ideal for high-risk environments like entrances, corridors, and retail zones. Supports PoE and 12V DC power for flexible installation.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens 2.8 mm, F1.6 aperture, M12 mount
Viewing Angle H: ~107°, V: ~57°, D: ~129°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
Smart Detection Human/Vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Audio Input/output, full duplex, 8KHz sampling, G.711 codec
DORI Distance (2.8mm) Detect: 49m, observe: 20m, recognize: 10m, Identify: 5m
Video Streams Up to 3 main streams
Bitrate Range 64 Kbps to 4 Mbps
Power Supply 12V DC ±5% or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP-rated (not explicitly listed)
Vandal Resistance IK08
Dimensions (W × H × D) 114 × 114 × 58 mm
Net Weight 0.23 kg
Gross Weight 0.41 kg
Warranty 1 Year Limited
