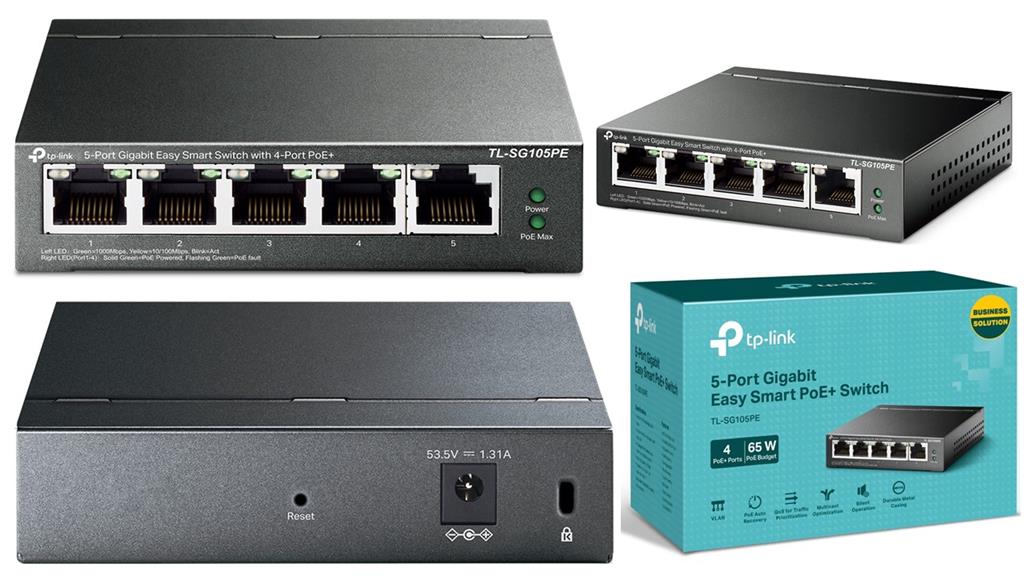

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4× PoE+, Web GUI, Fanless
Product Code: TL-SG105PE
Brand: TP-Link
🌟 Overview
The TP-Link TL-SG105PE is a compact, fanless smart switch designed for small offices, homes, and surveillance setups. With 4 PoE+ ports delivering up to 30W each and a total power budget of 65W, it powers IP cameras, VoIP phones, and access points with ease. Advanced Layer 2 features like IGMP Snooping, Port Mirroring, and Loop Prevention are managed via an intuitive web GUI. Extend Mode supports long-distance PoE transmission up to 250m, while QoS ensures smooth performance for latency-sensitive applications.
📦 Key Specifications
Attribute Details
Total Ports 5 × Gigabit RJ45
PoE Ports 4 × 802.3af/at compliant (Ports 1–4)
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5 Mb
Jumbo Frame Support 16 KB
Transmission Method Store-and-forward
Fan Configuration Fanless
Power Supply External Adapter (53.5VDC / 1.3A)
Max Power Consumption 75.2W (with full PoE load)
PoE Budget 65W total
Heat Dissipation 256.3 BTU/h (max)
Advanced Features QoS (802.1p/DSCP), IGMP Snooping V1/V2/V3, Port Mirroring, Static Link Aggregation, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode
Management Web-based GUI
Dimensions (W × D × H) 99.8 × 98 × 25 mm
Mounting Type Desktop
Operating Temp -40°C to 70°C
Operating Humidity 10%–90% RH non-condensing
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.55 kg (estimated)
Box Dimensions (L × W × H): 160 × 140 × 60 mm
