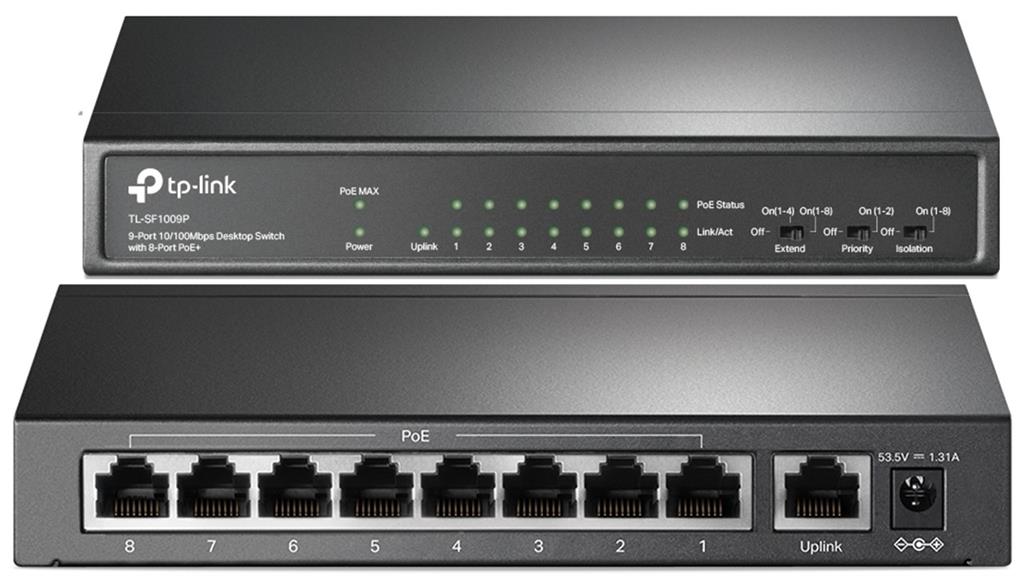

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8× PoE+, Fanless, Plug & Play

Product Code: TL-SF1009P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SF1009P is a compact, fan less desktop switch designed for small offices, home networks, and surveillance setups. With 8 PoE+ ports delivering up to 30W each and a total power budget of 65W, it powers IP cameras, VoIP phones, and access points effortlessly. Plug and play setup, physical security lock, and advanced modes like Extend, Priority, and Isolation make it a smart choice for simple yet powerful networking.

📦 Key Specifications
Attribute Details
Total Ports 9 × 10/100 Mbps RJ45
PoE Ports 8 × 802.3af/at compliant (Ports 1–8)
Uplink Port 1 × RJ45 (non-PoE)
Switching Capacity 1.8 Gbps
Packet Forwarding Rate 1.3392 Mpps
MAC Address Table 2K
Jumbo Frame Support 2 KB
Transmission Method Store-and-forward
Fan Configuration Fan less
Power Supply External Adapter (53.5VDC / 1.3A)
Max Power Consumption 77.1W (with full PoE load)
PoE Budget 65W total
Heat Dissipation 262.8 BTU/h (max)
Advanced Modes Extend (up to 250m), Priority, Isolation
Flow Control IEEE802.3x (Full Duplex), Backpressure (Half Duplex)
Physical Security Lock slot included
Dimensions (W × D × H) 171 × 98 × 27 mm
Mounting Type Desktop
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.6 kg (estimated)
Box Dimensions (L × W × H): 220 × 140 × 60 mm
