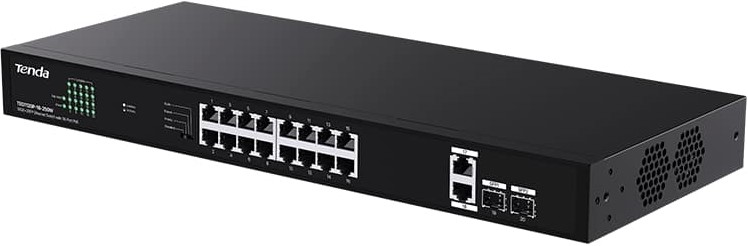

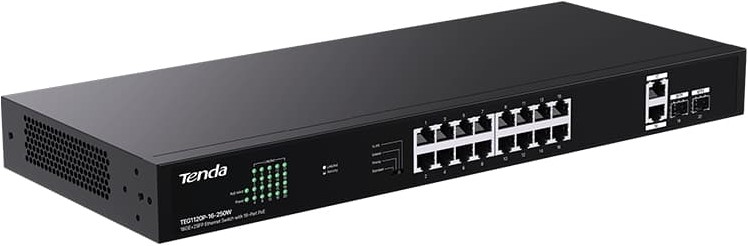

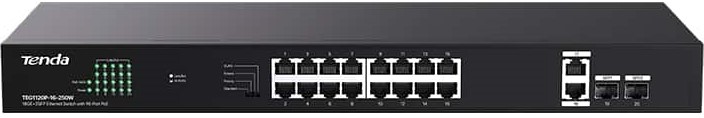

Tenda TEG1120P-16-250W 16 Port PoE+ Gigabit Ethernet Switch with 2 RJ45 + 2 SFP Uplinks, 250W Budget

Product Code: TE-TEG1120P-16-250W Brand: Tenda

🌟 Overview
The Tenda TEG1120P-16-250W is a high-performance unmanaged gigabit switch designed for scalable PoE deployments. With 16 PoE+ ports delivering up to 30W each and a total power budget of 230W, it’s ideal for powering IP cameras, access points, and VoIP phones. Two uplink RJ45 ports and two SFP slots offer flexible backbone connectivity. Built for SMBs, hotels, schools, and surveillance networks, it supports plug and play setup, rack/wall/desktop mounting, and advanced protections like 6KV lightning and ESD shielding.

📦 Key Specifications
Attribute Details
Total Ports 20 (16 × PoE+ RJ45 + 2 × RJ45 uplink + 2 × SFP)
PoE Standard IEEE 802.3af/at
Max PoE Power per Port 30W
Total PoE Budget 230W
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.8 Mpps
MAC Address Table 8K
Buffer Memory 4 Mb
Jumbo Frame Support Yes (up to 9KB)
Operating Modes Standard, Priority, Extend, VLAN
LED Indicators Power, Link/Act, PoE MAX
Transmission Media CAT5/5e UTP or better
Protection Level 6KV (Port & Power)
Forwarding Mode Store-and-forward
Fan Quantity 1
Dimensions (W × D × H) 440 × 178 × 44 mm
Mounting Options Rack, desktop, wall
Power Consumption Max 250W
Input Voltage 100–240V AC, 50/60Hz
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% non-condensing
Certifications FCC, CE, RoHS
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 4.2 kg (estimated)
Box Dimensions (L × W × H): 500 × 300 × 80 mm
