Solarix Inverter 3.5KVA 24V Future Star | SOLFS3500VA

Solarix Inverter 3.5KVA 24V Future Star - A reliable 3.5KVA solar inverter providing efficient power conversion for home use, supporting multiple battery types and operating modes. It offers a rated power of 3500VA with a DC input of 24VDC and AC output of 230VAC at 50/60Hz.

Product Overview
The Solarix Inverter 3.5KVA 24V Future Star is a versatile solar inverter designed to provide reliable power conversion for residential applications. It operates in multiple modes, including inverter, AC charger, and solar charger, supporting lithium, gel, and lead-acid batteries. The inverter offers a rated power of 3500VA with a DC input of 24VDC and AC output of 230VAC at 50/60Hz. It features a robust solar charger with a maximum charge current of 100A and supports solar voltages ranging from 40VDC to 500VDC. The device is designed to operate effectively in temperatures between -10°C and 50°C, ensuring reliable performance in various environmental conditions.

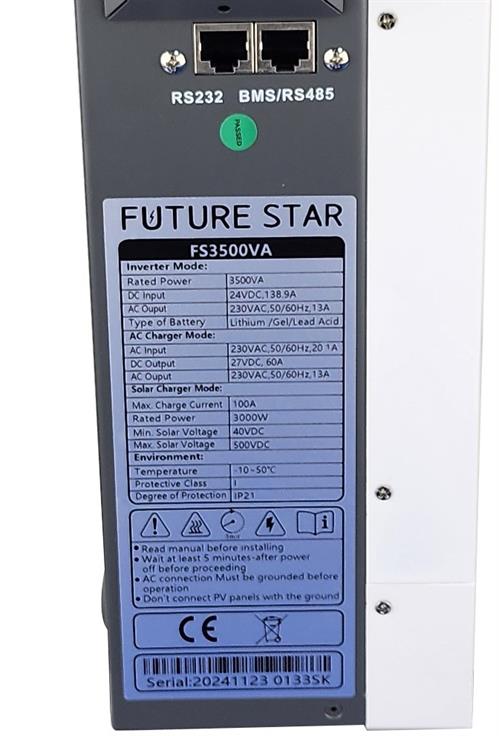

Specifications

• Product Code: SOLFS3500VA
• Product Overview: Solarix Inverter 3.5KVA 24V Future Star
• Brand : Solarix
• Product Type : Solar Inverter
• Model : 35KVA 24V Future Star
• Inveter Mode :
Rated Power : 3500va
DC Input : 24VDC, 138.9A
AC Output : 230VAC, 50/60Hz, 13A
Battery Type : Lithium/Gel/Lead Acid
• AC Charger Mode :
AC Input : 230VAC, 50/60Hz, 20 1A
DC Output : 27VDC, 60A
AC Output : 230VAC, 50/60Hz, 13A
• Solar Charger Mode :
Max. Charge Current : 100A
Rated Power : 3000W
Min. Solar Voltage : 40VDC
Max. Solar Voltage : 500VDC
• Environment :
Temperature: -10 ~ 50DC
Protective Class: I
Degree of Protection: IP21
