Reyee RG-ES209MG-P Smart Managed Switch 8-Port 2.5Gbps PoE, 130W, 1x SFP+

SKU: RG-ES209MGP
Product Code: RG-ES209MG-P
Brand: Reyee

⚙️ Overview
The Reyee RG-ES209MG-P is a high-performance 8-port smart managed switch designed for modern enterprise and SMB networks. With 8x 2.5Gbps Ethernet ports supporting IEEE 802.3af/at PoE and a total 130W PoE budget (up to 30W per port), it powers IP cameras, access points, and VoIP devices with ease. The 1x SFP+ uplink port ensures flexible high speed backbone connectivity. Integrated with Ruijie’s smart cloud platform, users can auto provision, monitor, and manage devices remotely via QR code or mobile app ideal for scalable deployments.

📦 Key Specifications
Attribute Details
Ethernet Ports 8x 10/100/1000/2500 Mbps
PoE Output IEEE 802.3af/at on Ports 1–8
PoE Budget 130W total, up to 30W per port
Uplink Port 1x SFP+

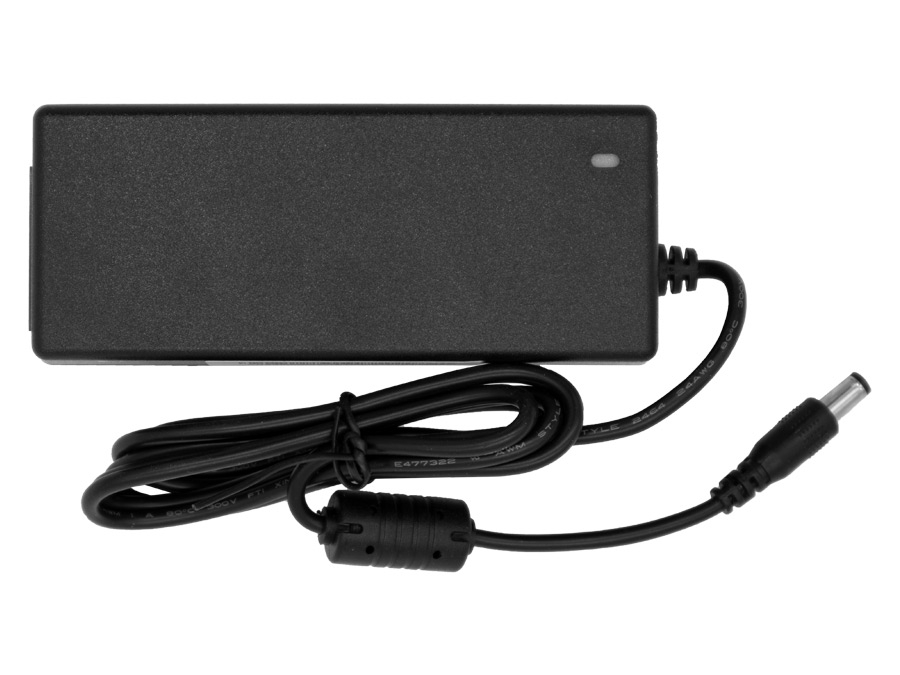

Power Input 54V 2.78A (Power Supply Included)
Max Power Consumption 8.5W
Mounting Desktop
Operating Temp 0°C to 40°C
Management Cloud-managed via Ruijie platform
Smart Features Auto-discovery, QR code provisioning
Hardware Buttons Reset, LED Mode
Dimensions (WxDxH) 202 × 108 × 28 mm
Weight 1.63kg

Operating System None
🛠️ Ideal For
IP surveillance and wireless AP deployments
Small and medium business networks
Remote device provisioning and cloud-based management
