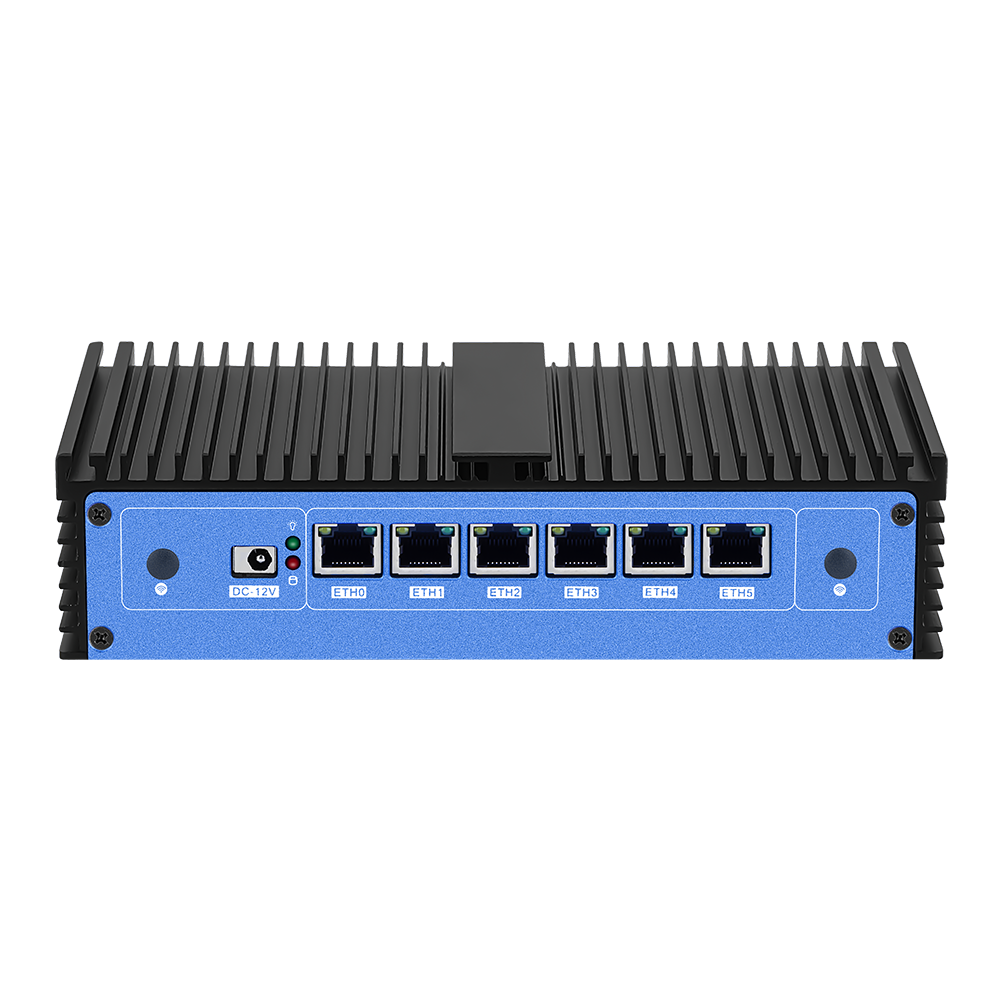

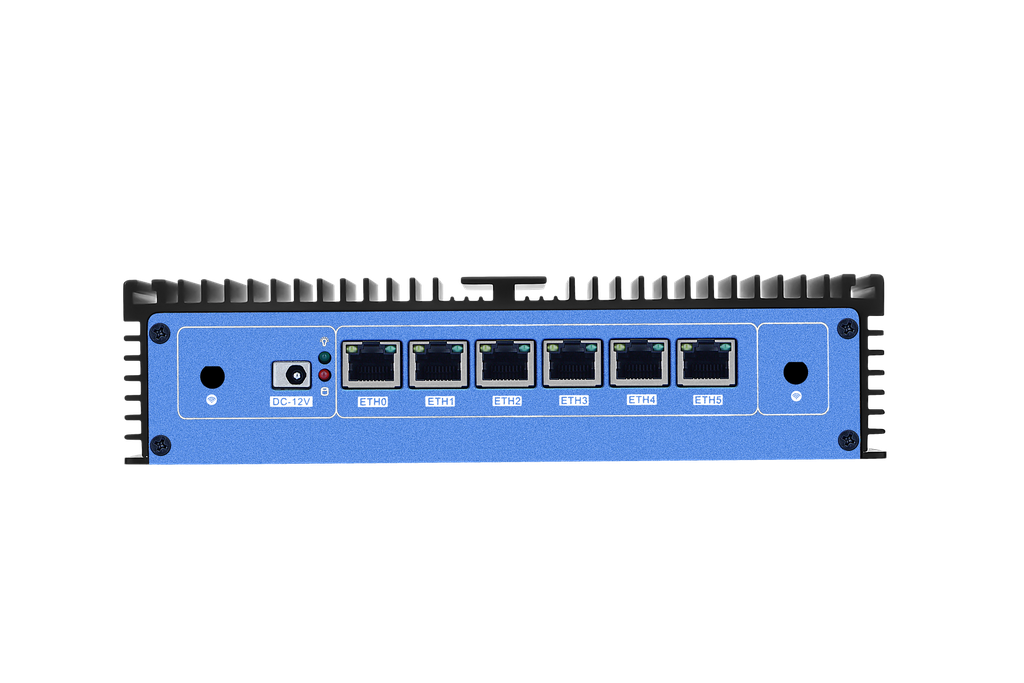

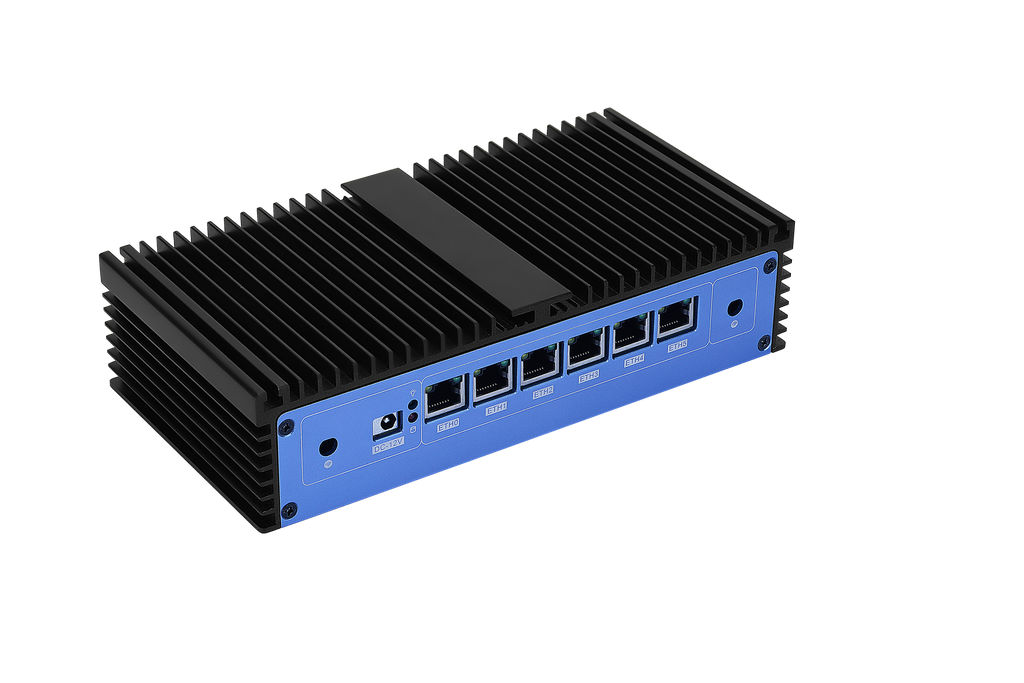

Quickstore 6200U i7 Firewall Router 6×LAN 1GbE
The Quickstore 6200U is a high‑performance, fanless industrial firewall appliance powered by the Intel Core i7‑6500U dual‑core processor (2.70GHz up to 3.50GHz). Engineered for demanding security workloads, this unit delivers exceptional throughput, silent operation, and enterprise‑grade reliability for Sophos Firewall, OPNsense, pfSense, and advanced edge‑security deployments.
Equipped with 6 × Intel i211 Gigabit Ethernet ports, the 6200U provides robust multi‑WAN, VLAN, and segmentation capabilities. Its fanless metal chassis ensures stable 24/7 operation in office, industrial, and cabinet environments. With 8GB DDR4 RAM and a 128GB SSD, it’s ready for immediate deployment as a secure firewall, SD‑WAN node, or industrial gateway.
✅ Key Features
Intel Core i7‑6500U Dual‑Core CPU (2.70GHz → 3.50GHz Turbo)
Intel HD Graphics 520
6 × Intel i211 Gigabit LAN ports (WOL + PXE Boot support)
8GB DDR4 RAM + 128GB SSD (silent, solid‑state storage)
Fanless industrial design for 24/7 reliability

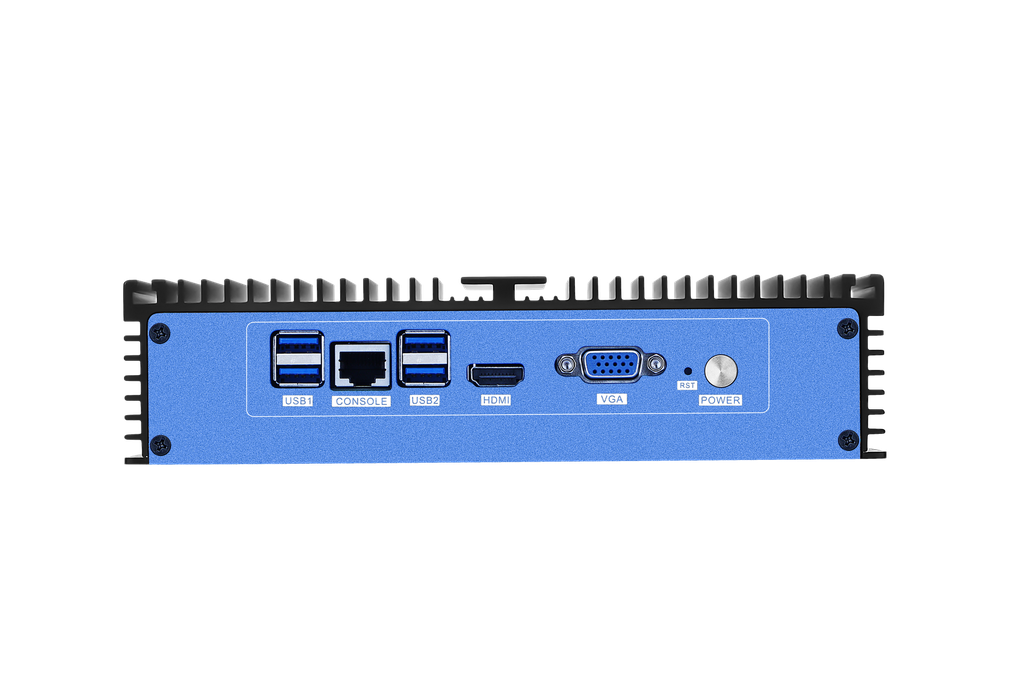

Dual display output: VGA + HDMI 1.4 (up to 4096×2304 @ 24Hz)
Expansion: mPCIe slot for 3G/4G modules + SIM card socket
4 × USB 3.0 ports
OS Support: Windows 7, Windows 10, Linux distributions
Compact metal chassis: 215 × 110 × 53 mm
Quickstore 12‑Month Warranty
✅ Optimized For
Sophos Firewall (Home / SMB / Branch)
OPNsense / pfSense
SD‑WAN edge nodes
IoT security gateways
Industrial control networks
