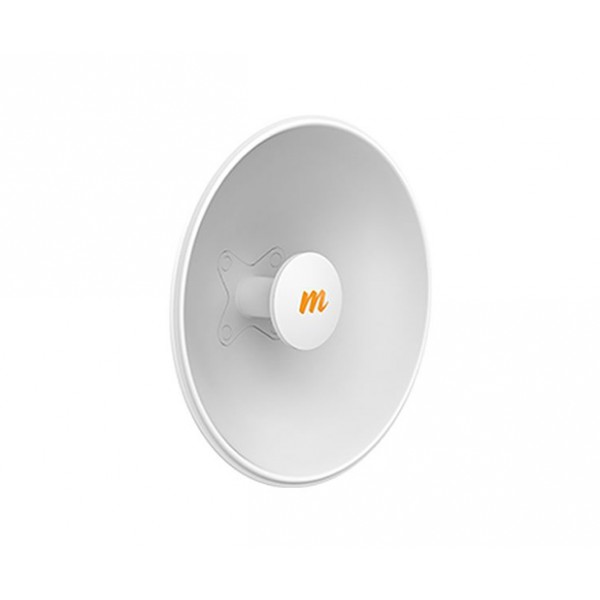

Mimosa N5‑X25 5GHz 25dBi Twist‑On Antenna
Brand: Mimosa
Product Code: MIM‑N5‑X25
Description: Mimosa N5‑X25 Twist‑On 5GHz 25dBi Antenna (430mm)
Product Overview
The Mimosa N5‑X25 is a twist‑on modular antenna designed to extend the performance of Mimosa’s C5x radio platform. With a 25dBi gain and 430mm size, it delivers long‑range connectivity while maintaining ease of installation. The N5‑X series allows flexible gain options (8, 12, 16, 20, and 25dBi), offering the simplicity of integrated radios with the adaptability of modular design. Built ultra‑rugged, the N5‑X25 supports extended frequency operation from 4.9–6.4GHz and provides best‑in‑class noise immunity, making it ideal for high‑density and interference‑prone environments.
Key Features
25dBi high‑gain twist‑on antenna (430mm)
Modular design compatible with Mimosa C5x radios
Flexible gain options: 8, 12, 16, 20, 25dBi
Extended frequency range: 4.9–6.4GHz
Rugged construction for outdoor deployments
Best‑in‑class noise immunity for reliable performance
Simple installation with twist‑on mechanism
Estimated gross shipping weight: 2.5–3.0 kg (antenna + packaging)
Technical Specifications
Feature Details
Product Code MIM‑N5‑X25
Antenna Type Twist‑On Modular Antenna
Frequency Range 4.9–6.4GHz
Antenna Gain 25dBi
Compatible Radios Mimosa C5x
Gain Options 8, 12, 16, 20, 25dBi
Dimensions 430mm
Construction Rugged outdoor design
Noise Immunity Best‑in‑class
Net Weight 2.2 kg
Gross Shipping Weight 2.5–3.0 kg
What’s Included
1 × Mimosa N5‑X25 Twist‑On Antenna
Mounting accessories
User documentation
