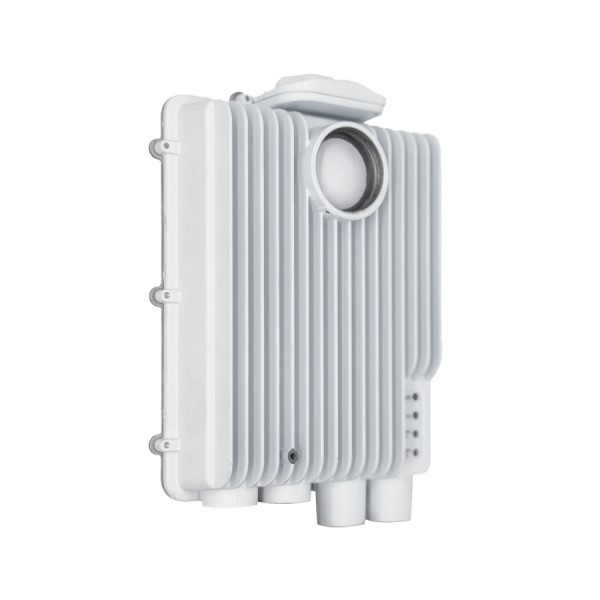

Mimosa B6x Point-to-Point Backhaul Radio 5.15–6.425 GHz | Model: MIM-B6X
Product Overview
Experience ultra-fast, reliable wireless backhaul with the Mimosa B6x, designed for demanding broadband providers, enterprises, and public safety networks. This cutting-edge point-to-point (PTP) radio delivers blazing speeds up to 3.0 Gbps using Wi-Fi 6E OFDMA technology, supporting an extended frequency range of 5.15 to 6.425 GHz. Built tough with an IP67-rated weatherproof enclosure, the B6x ensures consistent performance even in the harshest outdoor environments.
Key Features
Extreme Speed: Up to 3.0 Gbps IP throughput for high-capacity, ultra-low latency wireless links.
Wi-Fi 6E OFDMA Technology: Boosts network efficiency, reduces interference, and supports next-gen wireless performance.
Extended Frequency Range: Operates across 5.15–6.425 GHz spectrum for flexible deployment in various regions.
Modular Antenna Compatibility: Works with Mimosa’s N5-X twist-on antennas (8, 12, 16, 20, 25, or 30 dBi) to customize your range and gain.
GPS Synchronization: Enables tight timing for dense network deployments, reducing interference and improving scalability.
Rugged IP67 Enclosure: Weatherproof and dust-tight for reliable outdoor operation in rain, dust, and extreme conditions.
Easy Monitoring & Planning: Integrated with Mimosa Management Platform and Design Tool for simple link health monitoring and deployment planning.
Technical Specifications
Specification Details
Frequency Range 5.15 GHz – 6.425 GHz
Maximum Throughput Up to 3.0 Gbps (IP)
Modulation Wi-Fi 6E OFDMA
Antenna Options Supports N5-X Modular Antennas (8–30 dBi)
Enclosure Rating IP67 (Waterproof & Dustproof)
GPS Sync Supported
Management Platform Mimosa Cloud & On-Premises
Latency Ultra-low latency
Package Contents
Mimosa B6x Radio Unit
Mounting Hardware
Power & Data Cables (depending on package)
Quick Start Guide
