MikroTik LHG XL 5 ax Wireless CPE 27dBi Grid Antenna, WiFi 6, 5GHz PtP, RouterOS Level 3 SKU: RB-LHG5AX-XL
The MikroTik LHG XL 5 ax (LHG-5axD-XL) is a high-performance 5GHz WiFi 6 (802.11ax) wireless radio designed for long-range point-to-point (PtP) links and CPE deployments. Featuring an integrated 27dBi grid antenna with a narrow 7° beamwidth, it delivers focused, high-gain connectivity ideal for rural or remote installations.
Powered by RouterOS Level 3, the device supports advanced routing and wireless configurations. With a data rate of up to 1200Mbps, it ensures fast and reliable throughput across extended distances. The unit includes a Gigabit Ethernet port, passive PoE input, and operates efficiently with a maximum power consumption of just 5W.
Its rugged design supports pole mounting and withstands extreme temperatures from -40°C to 70°C, making it suitable for harsh outdoor environments. Whether you're building a backbone link or extending coverage to distant clients, the LHG XL 5 ax delivers robust performance and reliability.
Key Features

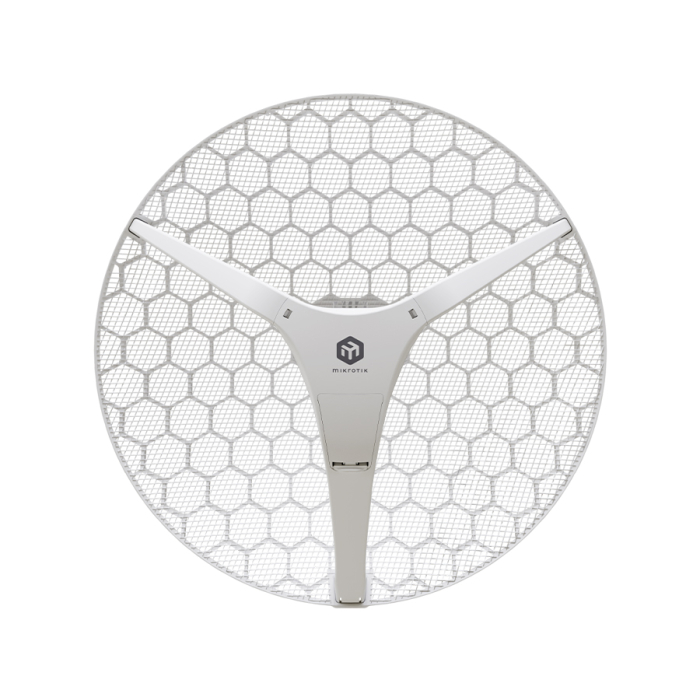

📡 27dBi Integrated Grid Antenna – Long-range directional coverage
🚀 WiFi 6 (802.11ax) – High-speed wireless performance
🔗 Point-to-Point & CPE Ready – Ideal for extended distance deployments
🌐 1200Mbps Data Rate @ 5.8GHz – Fast throughput for demanding applications

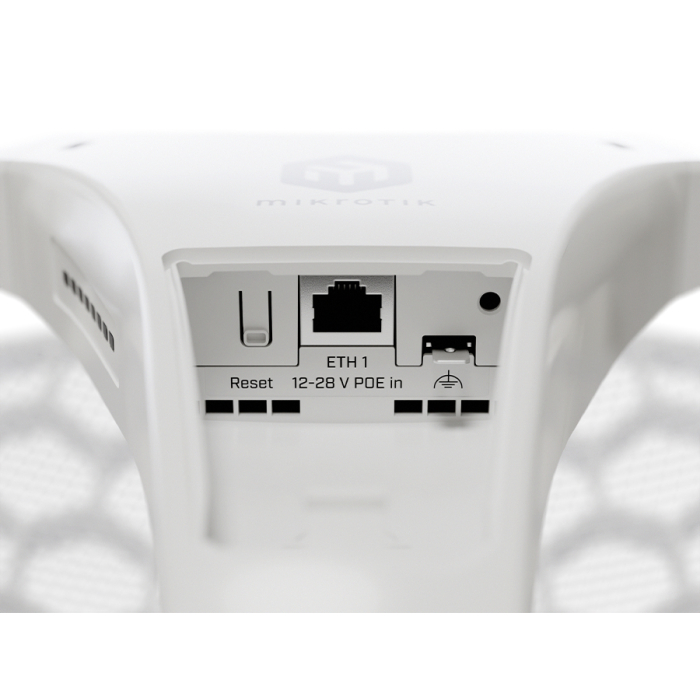

🔌 Gigabit Ethernet Port – High-speed wired connectivity
⚡ Passive PoE Input (12–28V) – Simplified power and data over one cable
🧊 Extreme Temperature Tolerance – Operates from -40°C to 70°C
🧠 RouterOS Level 3 Licence – Advanced networking features
🕒 12-Month Manufacturer Warranty – Reliable long-term performance
Technical Specifications
Feature Details
SKU RB-LHG5AX-XL
Product Code LHG-5axD-XL
Wireless Standard WiFi 6 (802.11ax)
Frequency Band 5GHz
Data Rate Up to 1200Mbps
Antenna Gain 27dBi
Beam-width 7°
Ethernet Ports 1 × 10/100/1000
Operating System RouterOS Level 3
Max Power Consumption 5W
Power Input 24V 0.38A (Power Supply Included)
PoE Input 12–28V Passive PoE
Mounting Pole Mount
Operating Temperature -40°C to 70°C
USB / SIM / Serial Ports None
Dimensions (Ø × H) 550 × 245 mm
Warranty 12 Months Limited Manufacturer Warranty

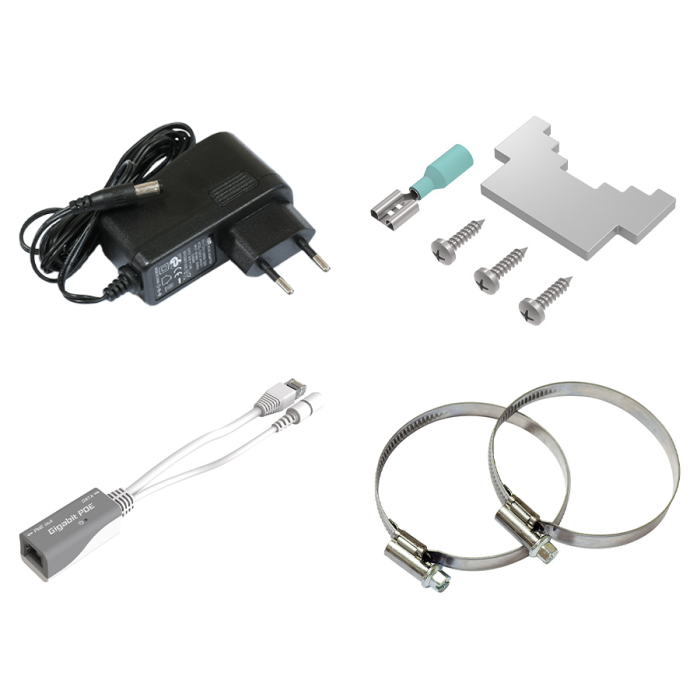

What’s Included
1 × MikroTik LHG XL 5 ax Wireless CPE
1 × 24V Power Supply
1 × Mounting Kit
1 × User Manual
Ideal Use Cases
🏞️ Long-distance point-to-point wireless links
🏠 Remote client connectivity in rural areas
🏢 Enterprise-grade outdoor CPE deployments
🌐 Backbone links for wireless ISP networks
