echnical Specifications
| Feature | Details |
|---|---|
| Product Code | MS128GP |
| Brand | Mercusys |
| Description | 28‑Port Gigabit Rackmount Switch with 24 PoE+ |
| Dimensions | 440 × 180 × 44mm (1U rackmount) |
| PoE Ports | 24 × Gigabit RJ45 (30W each, 295W total) |
| Uplink Ports | 2 × Gigabit RJ45 |
| SFP Slots | 2 × Gigabit |
| Switching Capacity | 56Gbps |
| MAC Address Table | 8K |
| Transmission Medium | Cat5e or above (≤100m), MMF/SMF for SFP |
| Fan Quantity | 2 |
| Physical Security | Lock supported |
| Max Power Consumption | ~350W |
| Heat Dissipation | ~1193 BTU/hr |
| Advanced Features | Extend mode, priority mode, isolation mode, PoE auto recovery |
| Certifications | CE, RoHS |
| Operating Temp | –10°C to 45°C |
| Storage Temp | –40°C to 70°C |
| Warranty | 6 months |
Price Disclaimer: Prices are subject to change at any time without prior notice.

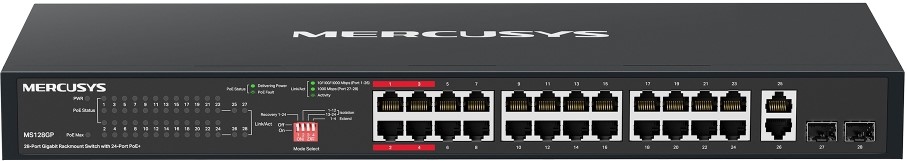

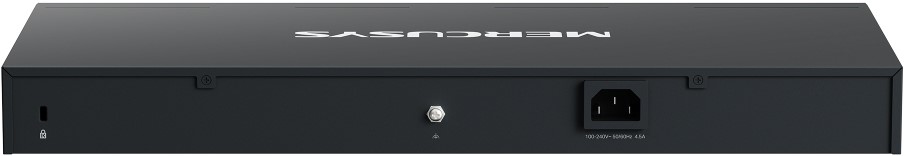

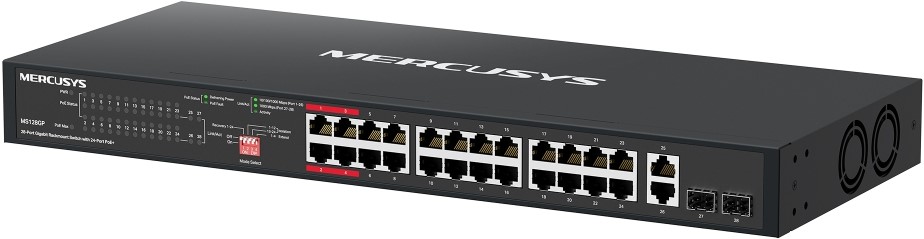

Mercusys MS128GP 24‑Port Gigabit PoE+ Switch
Brand: Mercusys
Product Code / SKU: MS128GP
Description:
Mercusys MS128GP – rackmount Gigabit switch with 24 PoE+ ports (30W per port, 295W total), plus 2 Gigabit uplink ports and 2 Gigabit SFP slots. Features extend mode up to 250m, priority/isolation modes, PoE auto recovery, and 56Gbps switching capacity. Rugged 1U rackmount design with dual fans, physical lock, and CE/RoHS certifications. Retail box packaging, 6‑month warranty.
Product Overview
Mercusys MS128GP – 28‑port Gigabit PoE+ rackmount switch with 295W budget, extend mode, and dual SFP slots for IP cameras, VoIP, and WiFi APs.
Highlights
24 × Gigabit PoE+ RJ45 ports (802.3af/at)
2 × Gigabit uplink RJ45 ports
2 × Gigabit SFP slots for fiber uplinks
PoE+ power: 30W per port, 295W total budget
Extend mode: up to 250m PoE/data transmission
Priority mode for sensitive applications (video monitoring)
Isolation mode for traffic segmentation
PoE auto recovery for unresponsive PDs
56Gbps switching capacity, 8K MAC table
Store‑and‑forward switching with IEEE802.3x flow control
Rugged 1U rackmount chassis with 2 fans + lock
Operating temperature: –10°C to 45°C
Retail box packaging
6‑month warranty
What’s Included
1 × Mercusys MS128GP 28‑Port Gigabit PoE+ Switch
Rackmount kit
Power cable
User manual
Retail box packaging
