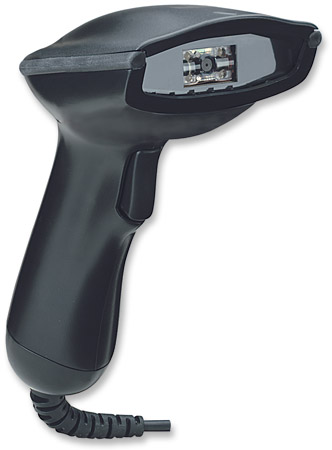

Manhattan 177603 2D USB Scanner 200/s 430mm Range Lifetime
The Manhattan 177603 2D Barcode Scanner is a lightweight, high‑performance handheld scanner designed to improve speed, accuracy, and productivity across retail, hospitality, warehousing, and office environments.
Equipped with a 752×480 pixel imager and red 650nm laser light source, it delivers 200 scans per second with a read range of up to 430mm (17″). Supporting both 1D and 2D symbologies — including UPC/EAN, Code 128, QR, Data Matrix, PDF417, and MaxiCode — it ensures versatile decoding for modern workflows.
With plug‑and‑play USB connectivity and a built‑in keyboard wedge decoder, scanned data appears instantly in applications as if typed manually. Compact at 135g, with a 1.5m cable, the Manhattan 177603 is durable (ABS housing, IP‑rated for daily use) and backed by a limited lifetime warranty.
Technical Specifications:
Model / SKU: 177603
Scan Engine: 2D imager, 752×480 px, 256 gray levels
Light Source: Red laser, 650nm
Scan Rate: 200 scans/sec (linear), 56 images/sec (area)
Read Range: Up to 430mm (17″)
Interface: USB (keyboard wedge)
Indicators: Tone + LED feedback
Durability: ABS housing, 0–50°C operating temp, 1.5m cable
Supported Codes: 1D (UPC/EAN, Code 39/128, ISBN, GS1 DataBar, etc.); 2D (QR, Data Matrix, PDF417, MaxiCode, Aztec)
Dimensions: 193 × 90 × 72 mm
Weight: 135g
Warranty: Limited lifetime
