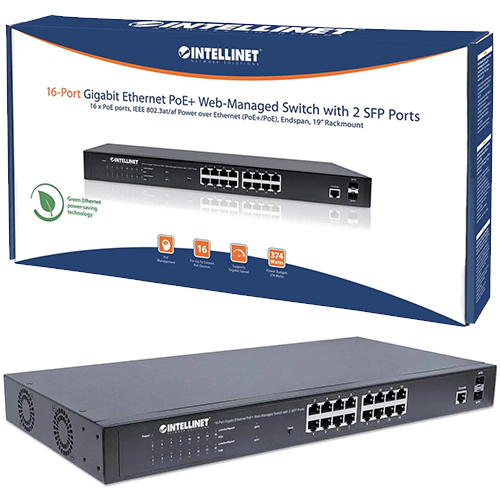

Intellinet 16 Port Gigabit PoE+ Managed Switch 374W, 2 SFP, Rackmount

Product Code: 561198 Brand: Intellinet

⚙️ Overview
The Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch is built for high performance enterprise networking. With 16 PoE+ ports delivering up to 30W each and a total power budget of 374W, it powers access points, IP cameras, and VoIP phones over standard Cat5e/Cat6 cables. Two SFP uplink ports, advanced SNMP management, VLAN support, and PoE monitoring features make it ideal for scalable deployments. Housed in a 19" rackmount chassis with dual cooling fans, it’s engineered for reliability and control.

📦 Key Specifications
Attribute Details
Ports 16 × Gigabit RJ45 (PoE+), 2 × SFP
PoE Standard IEEE 802.3at/af (PoE/PoE+)
PoE Budget 374W total, up to 30W per port
Switching Capacity 36 Gbps
MAC Address Table 8K entries
Jumbo Frame Support Up to 9 kBytes
Buffer Memory 512 kBytes
Management Web, Telnet, SSH, SNMP v1/v2c/v3, RMON
VLAN Support Tag-based & port-based
QoS Port-based & DSCP
Security IEEE 802.1x port-based
Protocols IPv4/v6, STP/RSTP, Link Aggregation
Monitoring Features PoE scheduling, device restart, PDM
Energy Efficiency IEEE 802.3az compliant
Cooling Dual high-volume fans
Mounting 19" Rackmount
Warranty 1 Year Limited

🛠️ Ideal For
Enterprise networks and IP surveillance setups
VoIP deployments and wireless access point clusters
Managed PoE environments with remote monitoring
