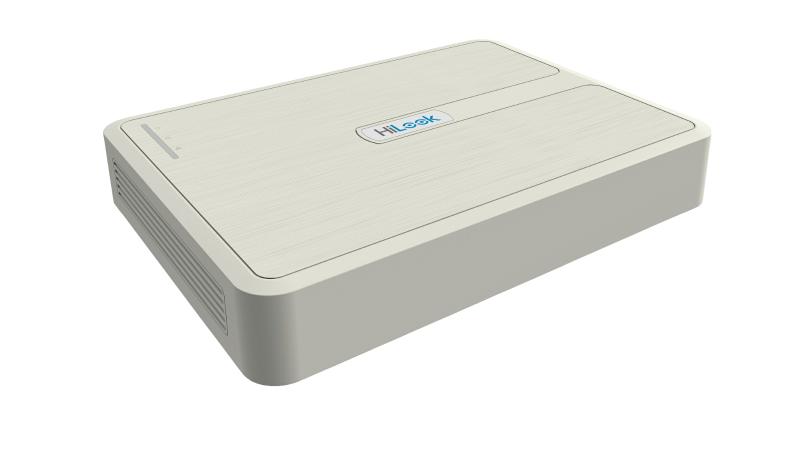

HiLook 4-ch Mini 1U 4 PoE 4K NVR | NVR-108-B/8P
HiLook 4-ch Mini 1U 4 PoE 4K NVR
Up to 8 channel IP cameras can be connected
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports decoding H.264+/H.264 multiple video formats
Up to 4-ch @ 1080p decoding capacity
1 HDD for continuous video recording
Video and Audio
IP video input8-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
HDMI/VGA output1-ch, resolution:1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Recording resolution4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)
