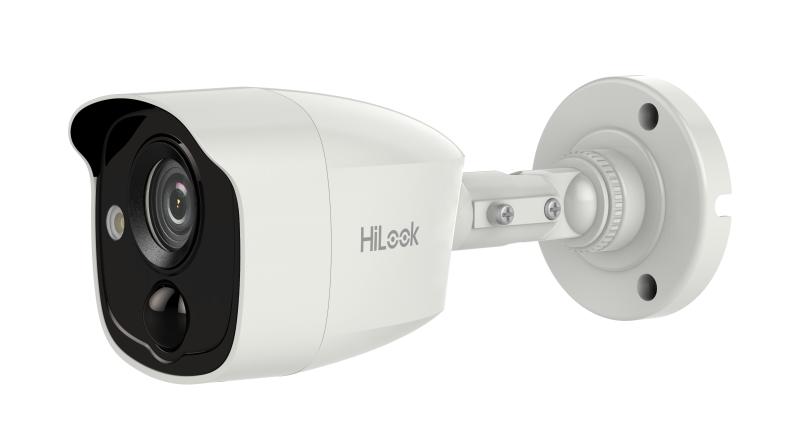

HiLook 2 MP PIR Fixed Mini Bullet Camera | THC-B120-MPIRL
High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Detects human body through heat-sensitive passive infrared (PIR)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Signal System PAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate TVI: 1080p@25fps, 1080p@30fps
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 44.7°, diagonal FOV: 94.5°
Lens MountM12
Light Alarm Flashing Light Alarm (White Light);Solid Light Alarm (White Light)
Day & Night IR Cut Filter
WDR (Wide Dynamic Range)Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White LightAuto/Off
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeGlobal;HLC;BLC;DWDR
Noise Reduction2D DNR
Language English
FunctionSharpness;Smart IR;Mirror;Brightness
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Power Supply
12VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.6 W
Protection LevelIP66
Material Metal
IR Range Up to 20 m
White Light Range Up to 20 m
PIR Range Angle: 110°, Range: 11 m
Communication HIKVISION-C
Dimension166.7 mm × 68 mm × 69.3 mm (6.56" × 2.68" × 2.73")
Weight Approx. 296 g (0.65 lb.)
